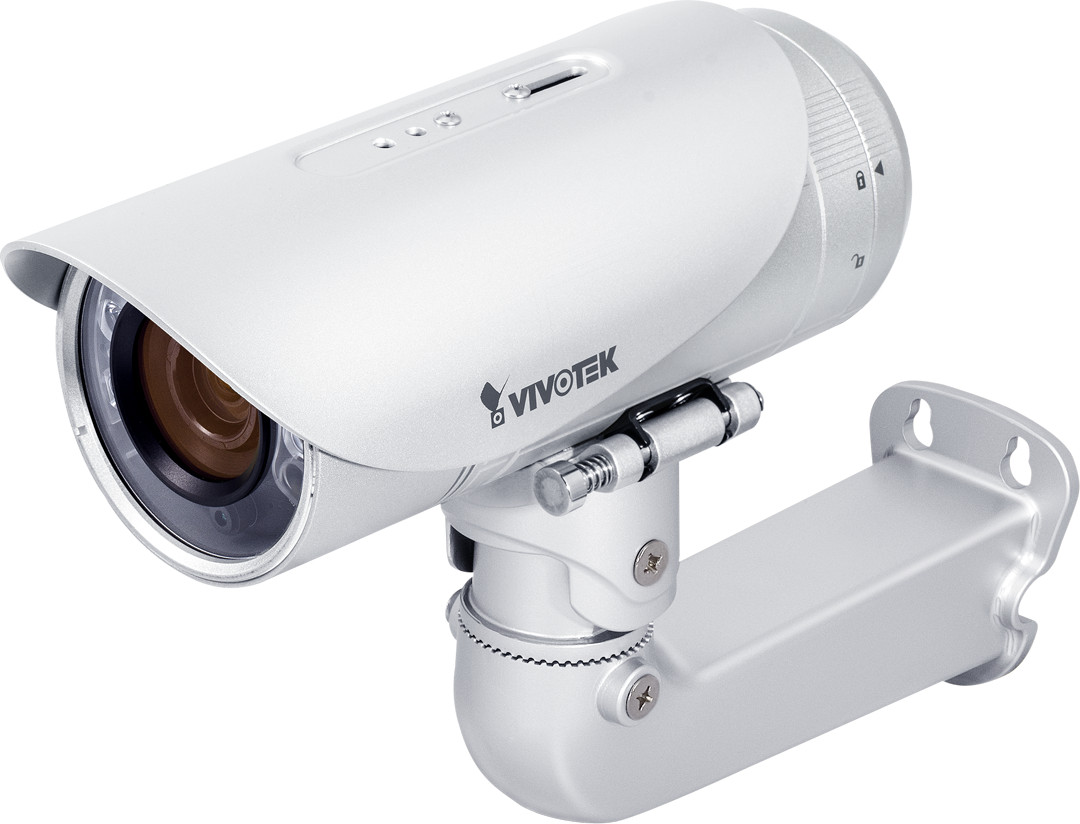

Vivotek IB8381-E IP Bullet Camera 5MP with 3 ~ 9MM Varifocal Lens, WDR, PoE, 30M IR, Extreme Weather IP67

Call 1-800-888-8101 for pricing
Vendor Vivotek

PN / VIV-IB8381-E *

Overview

VIVOTEK IB8381-E is a brand-new professional outdoor bullet network camera offering up to 25 fps @ 5-Megapixel or 30 fps @ 1080p resolution with superb image quality. Equipped with new image technology, IB8381-E provides excellent image quality with more details. Featuring 3D Noise Reduction technology and Smart Stream technology, IB8381-E can be used to optimize resolution on a desired object or area to maximize bandwidth usage.

The IP67-rated housing is also designed to help the camera body withstand rain and dust and ensures operation under a multitude of harsh weather conditions. Additionally, the wide temperature range further enhances the IP8381-E's performance and reliability in extremely cold and warm weather even with PoE.

Features

  • 5-Megapixel CMOS Sensor
  • 25fps @ 5MP
  • 3 ~ 9 mm Vari-focal, P-iris Lens
  • Removable IR-cut Filter for Day & Night Function
  • Built-in IR Illuminators, Effective up to 30 Meters
  • Real-time H.264, and MJPEG Compression
  • Two-way Audio
  • WDR Enhancement for Unparalleled Visibility in Extremely Bright and Dark Environment
  • Smart Focus System for Remote and Precise Focus Adjustment
  • Weather-proof IP67-rated Housing
  • Built-in 802.3af Compliant PoE/Built-in 802.3at Compliant PoE
  • Built-in SD/SDHC/SDXC Card Slot for On-board Storage
  • Mounting Bracket with Cable Management for Protected Installation
  • Extreme Weather Support with PoE

Specifications

System Information
CPU
  • Multimedia SoC (System-on-Chip)
Flash
  • 256 MB
RAM
  • 512 MB
Camera Features
Image sensor
  • 1/3.2" Progressive CMOS
Maximum Resolution
  • 2560x1920 (5MP)
Lens Type
  • Vari-focal
Focal Length
  • f = 3 ~ 9 mm
Aperture
  • F1.2 ~ F2.3
Auto-iris
  • P-iris
Field of View
  • 31° ~ 67° (horizontal)
  • 24° ~ 50° (vertical)
  • 40° ~ 90° (diagonal)
Shutter Time
  • 1/5 sec. to 1/32,000 sec.
WDR Technology
  • WDR Enhanced
Day & Night
  • Removable IR-cut filter for day & night function
Minimum Illumination
  • 0.2 Lux @ F1.2 (Color)
  • 0.001 Lux @ F1.2 (B/W)
Pan / Tilt / Zoom
  • ePTZ
  • 48x digital zoom ( 4x on IE plug-in, 12x built-in )
IR Illuminators
  • Built-in IR illuminators, effective up to 30 meters with Smart IR
On-board Storage
  • SD/SDHC/SDXC card slot
Video
Compression
  • H.264, MJPEG
Maximum Frame Rate
  • H.264:
    • 25 fps at 2560x1920
    • 30 fps at 1920x1080
  • MJPEG:
    • 25 fps at 2560x1920
    • 30 fps at 1920x1080
Maximum Streams
  • 3 simultaneous streams
S/N Ratio
  • Above 53 dB
Dynamic Range
  • 69 dB
Video Streaming
  • Adjustable resolution, quality and bit rate
Image Settings
  • Adjustable image size, quality and bit rate, time stamp, text overlay, flip & mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, seamless recording, smart stream, 3DNR
Audio
Audio Capability
  • Audio input/output (full duplex)
Compression
  • AAC, G.711, G.726
Interface
  • External microphone input
  • External line output
Network
Users
  • Live viewing for up to 10 clients
Protocols
  • IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP
Interface
  • 10 Base-T / 100 BaseTX Ethernet (RJ-45)
ONVIF
  • Supported, specification available at www.onvif.org
Intelligent Video
Video Motion Detection
  • Triple-window video motion detection
Alarm and Event
Alarm Triggers
  • Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection
Alarm Events
  • Event notification using digital output, HTTP, SMTP, FTP and NAS server, SD Card
  • File upload via HTTP, SMTP, FTP, NAS server and SD card
General
Smart Focus System
  • Remote focus
Connectors
  • RJ-45 cable connector for Network/PoE connection
  • Audio input
  • Audio output
  • AC 24V power input
  • DC 12V power input
  • Digital input*1
  • Digital output*1
  • Analog video output
LED Indicator
  • System power and status indicator
Power input
  • 24V AC
  • 12V DC
  • IEEE 802.3at PoE
Power consumption
  • Max. 22.4W (DC 12V)
  • Max. 24.6W (AC 24V)
  • Max. 23.46W (PoE)
Dimensions
  • Ø: 91 mm x 221 mm
Weight
  • Net: 1348 g
Casing
  • Weather-proof IP67-rated housing
Safety Certifications
  • CE, C-Tick, FCC Class A, LVD, UL, VCCI
Operating Temperature
  • Starting Temperature: -40°C ~ 50°C (-40°F ~ 122°F)
  • Working Temperature: -50°C ~ 50°C (-58°F ~ 122°F)
Warranty
  • 36 Months
System Requirements
Operating System
  • Microsoft Windows 7 / Vista / XP / 2000
Browser
  • Mozilla Firefox 7~10 ( Streaming only )
  • Internet Explorer 7 / 8 / 9 / 10
Other Players
  • VLC: 1.1.11 or above
  • QuickTime: 7 or above
