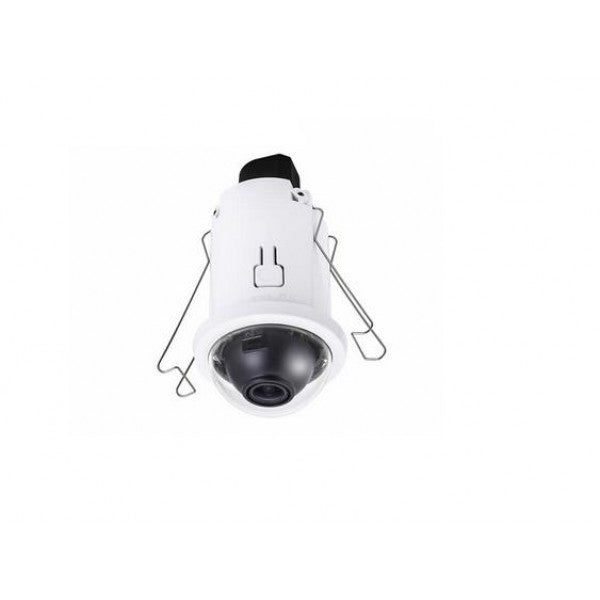

Vivotek FD816C-HF2 IP Dome Camera 2MP Interior

Brand VIVOTEK

You must be logged in to see the price and add to cart.

PN / VIV-FD8161 *

This model is discontinued. The recommended replacement is FD816CA-HF2. Call for availability of replacement item.



Key Features

  • 2-Megapixel CMOS Sensor
  • 30 fps @ 1920 x 1080
  • WDR Pro (100dB) to Provide Extreme Visibility in High Light Contrast Scenes
  • SNV (Supreme Night Visibility)
  • 3D Noise Reduction for Low-light Conditions
  • Smart Stream to Optimize Bandwidth Efficiency
  • Built-in IEEE 802.3af Compliant PoE
  • Real-time H.264 and MJPEG Compression (Dual Codec)
  • 70° Tilt Lens

Specifications

Model FD816C-HF2
System Information
CPU Multimedia SoC (System-on-Chip)
Flash 128MB
RAM 256MB
Camera Features
Image Sensor 1/2.8" Progressive CMOSE
Maximum Resolution 1920x1080 (2MP)
Lens Type Fixed-focal
Focal Length 2.8 mm
Aperture F1.8
Field of View 109° (horizontal) 61° (vertical) 132° (diagonal)
Shutter Time 1/5 sec. to 1/32,000 sec.
WDR Technology WDR Pro
Minimum Illumination 0.07 Lux @ F1.8 (Color)
Pan/tilt/zoom Functionalities ePTZ:
4x digital zoom IE plug-in
On-board Storage Slot type: MicroSD/SDHC/SDXC card slot
Seamless Recording
Video
Compression H.264 & MJPEG
Maximum Frame Rate 30 fps @ 1920x1080
Maximum Streams 3 simultaneous streams
S/N Ratio 58.48 dB
Dynamic Range 100 dB
Video Streaming Adjustable resolution, quality and bitrate; Smart Stream
Image Settings Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, 3DNR
Audio
Audio Capability One-way Audio
Compression G.711, G.726
Interface Buit-in Microphone
Effective Range 5 Meters
Network
Users Live viewing for up to 10 clients
Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS
Interface 10Base-T / 100BaseTX Ethernet (RJ-45)
*It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard.
ONVIF Supported, specification available at www.onvif.org
Intelligent Video
Video Motion Detection Five-window video motion detection
Alarm and Event
Alarm Triggers Motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, audio detection
Alarm Events Event notification using HTTP, SMTP, FTP, NAS server and SD Card
General
Connectors RJ-45 for Network/PoE connection
LED Indicator System power and status indicator
Power Input IEEE 802.3af PoE Class 1
Power Consumption Max. 3.3W
Dimensions Ø 60 x 115 mm
Weight Net: 138g
Safety Certifications CE, LVD, FCC Class B, VCCI, C-Tick, UL
Operating Temperature Starting Temperature: 0°C ~ 45°C (32°F~ 113°F)
Working Temperature: -10°C ~ 45°C (14°F~ 113°F)
Warranty 24 months
System Requirements
Operating System Microsoft Windows 8/7/Vista/XP/2000
Web Browser Mozilla Firefox 7~43 (streaming only)
Internet Explorer 7/8/9/10/11
Other Players VLC: 1.1.11 or above
QuickTime: 7 or above
Included Accessories
Others Quick installation guide
