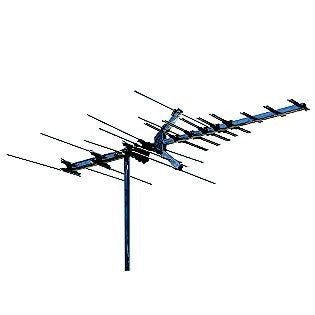

Winegard HD7694P Platinum HD Series Antenna

SKU: WNG-HD-7694P

PN / WNG-HD-7694P *

HD7694P Platinum HD Series Antenna

  • HDTV reception up to 45 miles from a tower
  • Receives H-VHF and UHF signals
  • Boom Length: 65", Max. Width: 35", Vertical Height: 13"
  • Weight: 7 lbs

The Winegard 7694P antenna has been specifically tuned for channels 7-69. This antenna has a range for 30 miles for VHF and 25 miles for UHF signals. It is primarily an outdoor antenna and is not intended to be installed indoors.

  • *Note: This antenna can receive stations 2-6 in most areas due to the fact they are generally broadcast on higher unused UHF or VHF frequency numbers in the area.
  • Includes hardware for mounting to a mast; antenna has a 75 ohm coax connection
  • Great small range directional antenna that picks up about 30 degrees wide
  • Get all of the top rated programs for FREE in stunning high definition
  • Estimated Range: 45 miles on the VHF / UHF band
  • Active Elements: 28
  • Made in America
  • UHF Elements: 17
  • VHF Elements: 11
  • Boom Length: 65"
  • Element Diamter: 3/8"
  • Turning Radius 43.25
  • Shipping Weight 7 lbs
  • Width: 35"

 CHANNEL

CH
7
CH
9
CH
11
CH
13
CH
14
CH
32
CH
50
CH
69

dB gain over reference dipole

8.3 9.6 8 9.9 11.5 10.4 10.7 9.7

Beam width at half power points

37° 38° 39° 37° 61° 54° 46° 34°

Front-to-back ratio

13dB 16dB 15dB 16dB 16dB >20dB 19dB 18dB
