VANCO Evolution HDMI® 4 x 1 Selector Switch with Seamless Switching and Multiview
Couldn't load pickup availability
Vendor Vanco
PN / VAN-EVSW1040-4 *
Vanco Evolution HDMI® 4 x 1 Selector Switch with Seamless Switching and Multiview.
Includes Control4, Crestron, Elan Drivers & IR HEX Commands
Features & Specs:
- High performance 4 x 1 HDMI switcher with Quad-View, Picture-in-Picture (PIP) capabilities and seamless switching
- Supports four HDMI inputs which can be displayed on one screen either equally in Quad-View mode or with a larger main source in PIP mode
- Control through the front panel button control, IR control, and RS232 control

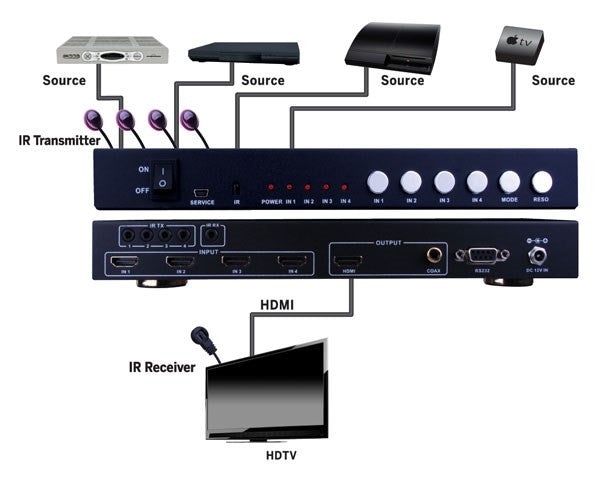

- IR system allowing for control of source(s) at display end
- HDMI 1.3a and HDCP Compliant
- Supports up to 1080p High Definition resolution
- Up/down scaler functionality
- Support digital audio format LPCM/AC3/DTS
- Coaxial Audio breakout
- Power Supply: 12V/2.5A DC
- Dimensions: 9.84” W x 1.25” H x 4.64” D
Package Contents:
- 4 x 1 Selector Switch EVSW1040
- (4) Wideband IR Tx cables
- (1) Wideband IR Rx cable
- Remote Control
- 12V/2.5A DC power supply
- RS232 cable
- Product Manual
Also see EVMX44SL 4 x 4 Model
View Related Evolution Video Wall & Multiview Products
Also see EVMX44SL 4 x 4 Model
Downloads:
- Control4 driver for EVSW1040 25KB
- Crestron Driver for EVSW1040 154KB
- Crestron Driver for EVSW1040 154KB
- EVSW1040 IR HEX Commands 222KB
- EVSW1040 Product Manual 2775KB
- EVSW1040 Sales Sheet 2799KB
- EVSW1040 Software Control 274KB
- RTI Driver for EVSW1040 13KB
- URC Driver for EVSW1040 114KB
