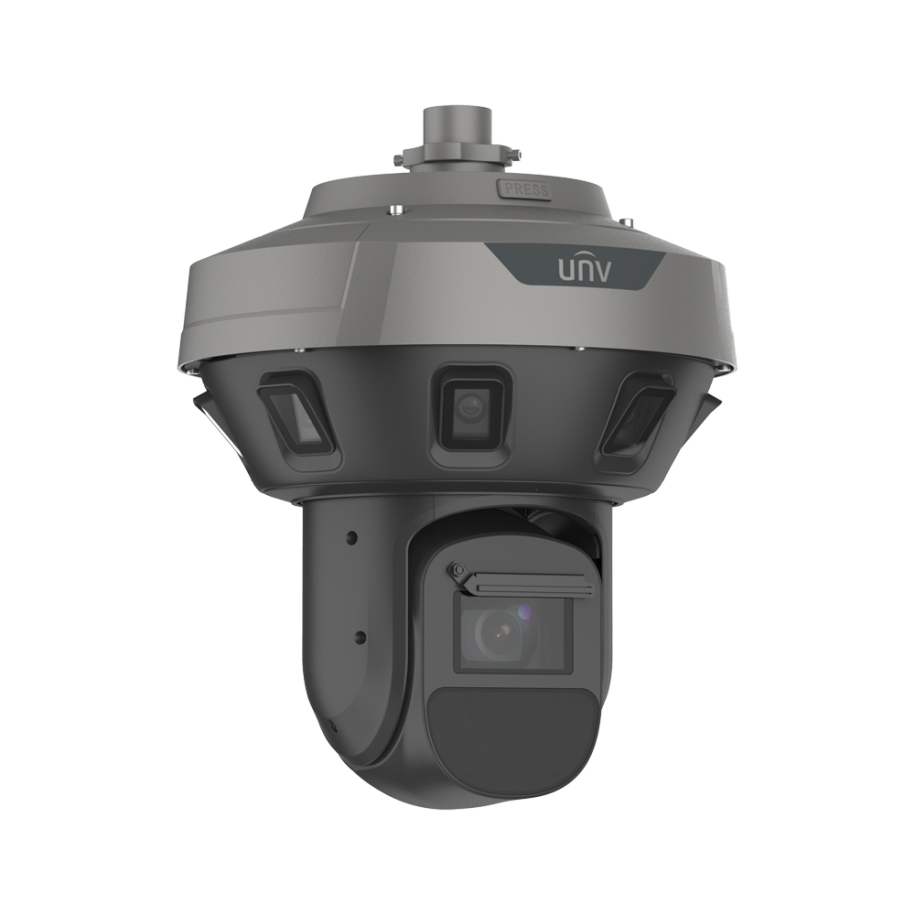

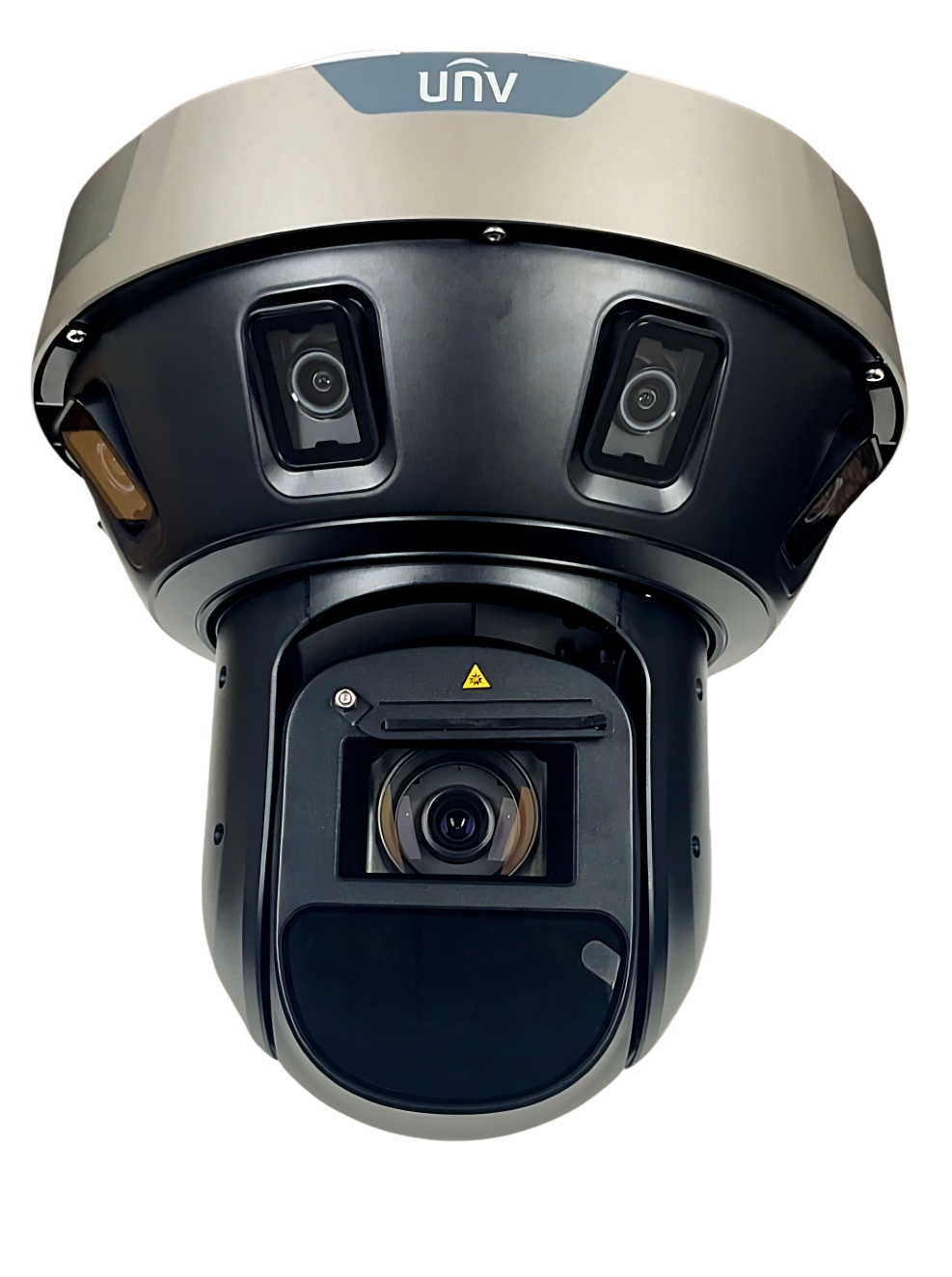

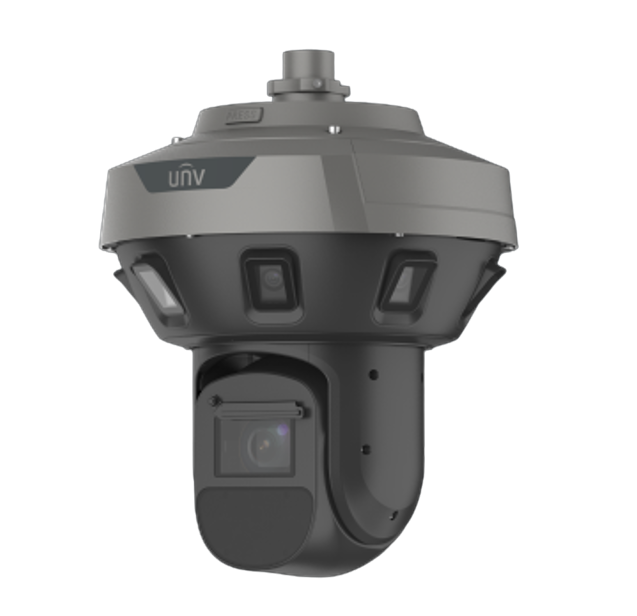

Uniview IPC98344ER-GX42-E8-W-VH3 SkyView 32MP + 4MP 360° Panoramic and PTZ Camera

Complete 360° Situational Awareness with Long-Range 42× PTZ Detail

The Uniview IPC98344ER-GX42-E8-W-VH3 SkyView combines a 32-megapixel panoramic camera and a 4-megapixel high-speed PTZ camera in one advanced surveillance platform. Eight panoramic sensors are dynamically stitched together to provide a seamless 180°, 270°, or full 360° view, while the integrated PTZ detail channel uses a 42× optical zoom lens and intelligent tracking to capture distant subjects with exceptional clarity.

The panoramic channel continuously monitors the entire scene while the PTZ channel automatically or manually focuses on important targets. Operators can select a subject from the panoramic image, draw a box around an area of interest, or allow the camera’s analytics to detect and track pedestrians, vehicles, and non-motor vehicles.

Designed for large, high-security outdoor environments, the camera provides up to 500 meters of infrared illumination, advanced low-light imaging, heat-haze reduction, optical dehazing, gyroscopic stabilization, IP67 weather resistance, and IK10 impact protection.

Key Features

  • Eight-sensor panoramic imaging system

  • 32MP panoramic channel plus 4MP PTZ detail channel

  • Flexible 180°, 270°, or 360° panoramic coverage

  • Panoramic resolution up to 11520 × 2700 at 30 fps

  • Detail-channel resolution up to 2688 × 1520 at 60 fps

  • 42× optical zoom and 8× digital zoom

  • 6–252 mm motorized PTZ lens

  • Up to 500 meters of infrared illumination

  • Ultra-low-light 1/1.8-inch CMOS imaging

  • Wise-ISP low-light processing on the PTZ detail channel

  • Simultaneous panoramic and detailed viewing through a single IP address

  • Dynamic image stitching automatically adjusts as the scene changes

  • 110° panoramic vertical field of view

  • High-precision PTZ encoder with accuracy up to ±0.04°

  • Automatic panoramic-to-PTZ target linkage

  • Intelligent auto-tracking and handover tracking

  • Face and body detection, capture, and attribute extraction

  • Face recognition with up to 16 databases and 100,000 stored faces

  • People counting and crowd-density detection

  • Vehicle, non-motor vehicle, and pedestrian classification

  • Smart intrusion-prevention analytics

  • Heat-haze reduction and optical dehazing

  • Gyroscopic image stabilization

  • Adaptive nighttime glare suppression

  • Ultra 265, H.265, H.264, and MJPEG compression

  • MicroSD edge storage up to 512 GB

  • Gigabit Ethernet and SFP network connectivity

  • IP67 weather-resistant and IK10 vandal-resistant construction

Panoramic and PTZ Dual-Channel Design

The SkyView architecture combines two complementary surveillance channels:

32MP Panoramic Channel

The panoramic channel uses eight sensors and advanced stitching technology to produce a continuous, high-resolution overview of the monitored area. Installers can configure the camera for 180°, 270°, or 360° panoramic coverage depending on the application and mounting location.

The panoramic image provides a 110° vertical field of view, helping eliminate blind spots even when the camera is installed approximately six meters above the ground.

4MP PTZ Detail Channel

The detail channel uses a 6–252 mm lens with 42× optical zoom and 8× digital zoom. It can focus on distant subjects, follow moving targets, and capture detailed identification footage while the panoramic channel continues recording the complete scene.

High-Resolution Video Performance

The panoramic channel supports the following main-stream resolutions:

  • 32MP, 11520 × 2700 at up to 30 fps

  • 16MP, 8192 × 1800 at up to 30 fps

  • 6144 × 1200 at up to 30 fps

  • 4096 × 900 at up to 30 fps

The PTZ detail channel supports:

  • 4MP, 2688 × 1520 at up to 60 fps

  • 4MP, 2560 × 1440 at up to 60 fps

  • 1080p at up to 60 fps

  • 720p at up to 60 fps

The higher 60 fps frame rate on the detail channel helps provide smoother video of fast-moving people and vehicles.

Intelligent Panoramic-to-PTZ Linkage

Operators can manually select a target within the panoramic image, causing the detail channel to automatically position itself and track the selected subject. A box can also be drawn around any area in the web interface, prompting the PTZ channel to zoom in and center the selected region.

A one-click panoramic-detail calibration function simplifies setup and improves the accuracy of target linkage between the two imaging channels.

Auto-Tracking and Handover Tracking

The PTZ channel supports classification-based tracking of:

  • Pedestrians

  • Motor vehicles

  • Non-motor vehicles

When the configured tracking duration ends, the camera can automatically return to its preset position. Handover tracking allows the PTZ channel to continue following a target after it leaves the panoramic channel’s primary field of view, extending the effective tracking area.

Tracking capture also enables the camera to capture structured images and extract target attributes while a subject is being followed.

Smart Intrusion Prevention

The camera supports intelligent perimeter-protection analytics with four detection modes:

  • Cross-line detection

  • Enter-area detection

  • Leave-area detection

  • Area-intrusion detection

The detail channel can classify pedestrians, motor vehicles, and non-motor vehicles, while the panoramic channel supports classification of pedestrians and motor vehicles. Classification-based filtering helps reduce false alarms caused by environmental movement and irrelevant activity.

People Counting and Crowd Monitoring

Both channels support people-flow counting and crowd-density detection. Multi-zone counting allows different areas within the scene to be monitored separately, making the camera useful for entrances, plazas, transportation facilities, stadiums, and other high-traffic locations.

Face Detection and Recognition

The PTZ detail channel supports:

  • Face and body detection

  • Face and body capture

  • Face-body association

  • Attribute extraction

  • Face-angle filtering

  • Effect-priority capture

  • Speed-priority capture

  • Cycle-optimized capture

  • Face recognition

The camera supports up to 16 face databases with a combined capacity of as many as 100,000 faces.

Advanced Outdoor Imaging

The detail channel includes multiple technologies designed to maintain a clear image in difficult outdoor conditions:

  • Wise-ISP: Restores color and detail in extremely low-light environments

  • 120 dB WDR: Balances bright and dark areas within the same scene

  • Heat-Haze Reduction: Minimizes image distortion caused by heat shimmer

  • Optical Dehazing: Adjusts the dehazing level according to fog severity

  • Gyroscopic Stabilization: Reduces image shake caused by vibration or environmental movement

  • Adaptive Glare Suppression: Adjusts nighttime image brightness when moving vehicles and headlights are present

  • Highlight Compensation: Reduces the effect of intense light sources

  • Backlight Compensation: Improves subject visibility in backlit scenes

Long-Range Infrared Illumination

The PTZ detail channel provides up to 500 meters, or approximately 1,640 feet, of infrared illumination. Automatic and manual illumination controls allow the camera to adapt to changing nighttime conditions.

PTZ Performance

The high-speed PTZ mechanism provides precise positioning and extensive programming options:

  • Continuous 360° pan range

  • –15° to 90° tilt range

  • Pan speed from 0.1° to 300° per second

  • Tilt speed from 0.1° to 180° per second

  • Up to 1,024 preset positions

  • 16 preset patrols

  • Up to 64 presets per patrol

  • Home-position function

  • 3D positioning

  • Preset image freeze

  • Patrol recording

  • Snow-removal mode

  • Manual wiper

Video Compression and Streaming

The camera supports:

  • Ultra 265

  • H.265

  • H.264

  • MJPEG

  • Triple video streams

  • U-Code bandwidth reduction

  • Up to eight regions of interest

  • Up to 20 simultaneous bitstreams

  • Maximum bandwidth of 50 Mbps

  • Configurable privacy masking

  • 3D privacy masking on the detail channel

Ultra 265 compression helps reduce bandwidth and storage consumption while maintaining image quality.

Audio, Alarm, and System Integration

Integrated interfaces include:

  • Seven alarm inputs

  • Three alarm outputs

  • Two audio inputs

  • Two audio outputs

  • Two-way audio

  • One RS485 serial interface

  • One 10/100/1000 Mbps RJ45 Ethernet port

  • One 100/1000 Mbps SFP port

The camera supports ONVIF Profiles S, G, T, and M, along with API and SDK integration for compatible video-management and third-party security platforms.

Edge and Network Storage

The IPC98344ER-GX42-E8-W-VH3 supports:

  • MicroSD cards up to 512 GB

  • NAS storage through NFS

  • Automatic Network Replenishment

  • Local edge recording

  • Network-based video storage

ANR helps preserve recordings during temporary network interruptions by storing footage at the camera and transferring it when the connection is restored.

Ideal Applications

  • Airports and transportation hubs

  • Stadiums and large event venues

  • City surveillance and public spaces

  • Parking lots and parking structures

  • Industrial facilities

  • Warehouses and distribution centers

  • Utility and energy sites

  • Ports and shipping facilities

  • Large commercial campuses

  • Educational campuses

  • Critical infrastructure

  • Perimeter and border monitoring

  • Large intersections and traffic applications

Technical Specifications

Panoramic Channel

  • Resolution: 32 MP

  • Image Sensor: 1/1.8-inch CMOS

  • Maximum Resolution: 11520 × 2700

  • Maximum Frame Rate: 30 fps

  • Horizontal Field of View: 360°

  • Vertical Field of View: 110°

  • Lens: 2 mm

  • Minimum Illumination: 0.0003 lux in color at F1.0

  • Signal-to-Noise Ratio: Greater than 56 dB

PTZ Detail Channel

  • Resolution: 4 MP

  • Image Sensor: 1/1.8-inch CMOS

  • Maximum Resolution: 2688 × 1520

  • Maximum Frame Rate: 60 fps

  • Lens: 6–252 mm

  • Optical Zoom: 42×

  • Digital Zoom: 8×

  • Horizontal Field of View: 59.47°–2.20°

  • Vertical Field of View: 35.62°–1.24°

  • Minimum Color Illumination: 0.0005 lux at F1.2

  • Minimum IR Illumination: 0.0003 lux at F1.2

  • Wide Dynamic Range: 120 dB

  • Infrared Distance: Up to 500 meters

  • Pan Range: 0°–360°

  • Tilt Range: –15°–90°

  • Pan Speed: 0.1°–300° per second

  • Tilt Speed: 0.1°–180° per second

  • Presets: 1,024

General Specifications

  • Video Compression: Ultra 265, H.265, H.264, and MJPEG

  • Video Streams: Triple stream

  • Edge Storage: MicroSD up to 512 GB

  • Network Storage: NAS through NFS and ANR

  • Ethernet: One Gigabit RJ45 port

  • Fiber Interface: One 100/1000 Mbps SFP port

  • Alarm Inputs/Outputs: 7/3

  • Audio Inputs/Outputs: 2/2

  • Serial Interface: One RS485

  • Power Input: 24V DC or 36V DC, ±25%

  • Maximum Power Consumption: 124 W

  • Weather Protection: IP67

  • Impact Protection: IK10, excluding the front window

  • Surge Protection: 6 kV

  • Operating Temperature: –40°F to 158°F

  • Operating Humidity: Up to 95% RH, non-condensing

  • Dimensions: 380 mm diameter × 475.9 mm high

  • Weight: 13.5 kg, approximately 29.8 lb

  • Safety Certifications: UL, cUL, and CE-LVD

  • EMC Compliance: CE and FCC

  • Environmental Compliance: RoHS and WEEE

The Uniview IPC98344ER-GX42-E8-W-VH3 SkyView provides continuous panoramic awareness, long-range PTZ detail, intelligent analytics, and rugged outdoor performance in a single high-capacity surveillance camera.
