PN / UNV-NVR501-08B-P8*Â Â

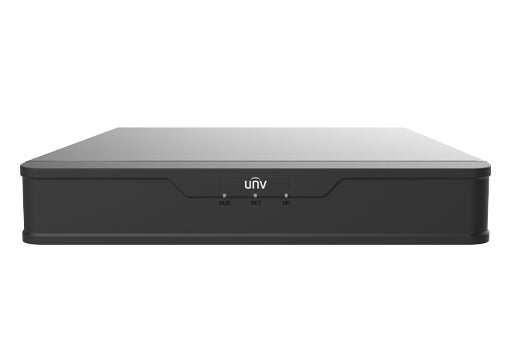

 UNIVIEW NVR501-B-P SERIES
 FEATURES
-
 Support Ultra 265/H.265 video formats
 8-channel input Plug & Play with 8 independent PoE network interfaces Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols Support HDMI and VGA simultaneous output Up to 8 Megapixels resolution recording 1 SATA HDDs, up to 8TB for each HDD ANR technology to enhance the storage reliability when the network is disconnected Support cloud upgrade
Â
|
Model |
NVR501-08B-P8 |
|
|
Video/Audio Input |
||
|
IP Video Input |
8-ch |
|
|
Audio Input |
1-ch, RCA |
|
|
Network |
||
|
Incoming Bandwidth |
80Mbps |
|
|
Outgoing Bandwidth |
64Mbps |
|
|
Remote Users |
128 |
|
|
Protocols |
TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP |
|
|
Browser |
IE(IE10/11) for Windows |
|
|
Video/Audio Output |
||
|
HDMI/VGA Output |
HDMI: |
|
|
Recording Resolution |
8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
|
Audio Output |
1-ch, RCA |
|
|
Two-way Audio |
1-ch, RCA(Using the audio input and output) |
|
|
Audio Compression |
G.711A, G.711U |
|
|
Synchronous Playback |
8-ch |
|
|
Liveview display |
1/4/6/8/9 |
|
|
Corridor Mode Screen |
3/4/5/7/9 |
|
|
Snapshot |
||
|
FTP/Schedule/Event Snapshot |
4-ch snapshot, up to D1 resolution |
|
|
Decoding |
||
|
Decoding format |
Ultra 265/H.265 |
|
|
Live view/Playback |
8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
|
Capability |
4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 9 x 4MP@25, 10 x 3MP@30, 16 x 1080p@30 |
|
|
Hard Disk |
||
|
SATA |
1 SATA interfaces |
|
|
Capacity |
Up to 8TB for each disk |
|
|
Smart |
||
|
VCA Detection by Camera |
Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, SMD(Smart Motion Detection) |
|
|
VCA Search |
Behavior Search, People Counting Report |
|
|
People counting |
People Flow Counting, Crowd Density Monitoring |
|
|
Smart Intrusion Prevention (SIP), SMD by Camera |
Total 4-ch |
|
|
General Alarm |
||
|
General Alarm |
Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
|
|
Alert Alarm |
IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
|
|
External Interface |
||
|
Network Interface |
1 RJ-45 10M/100M self-adaptive Ethernet Interface |
|
|
USB Interface |
Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0 |
|
|
RS232 |
NA |
|
|
RS485 |
NA |
|
|
Alarm In |
NA |
|
|
Alarm Out |
NA |
|
|
PoE |
||
|
Interface |
8 RJ-45 10M/100M self-adaptive Ethernet Interface |
|
|
Max Power |
Max 30W for single port |
|
|
Supported Standard |
IEEE 802.3af/at |
|
|
General |
||
|
Power Supply |
52V DC/1.8A |
|
|
Working Environment |
-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) |
|
|
Dimensions (W×D×H) |
260mm × 222mm × 47mm (10.2" × 8.7" × 1.8") |
|
|
Weight (without HDD) |
≤ 0.98Kg (2.16lb) |
|
|
Certification |
||
|
Certification |
CE, FCC, UL, RoHS, WEEE |
|
|
CE |
EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 |
|
|
FCC |
Part15 Subpart B, ANSI C63.4 |
|
