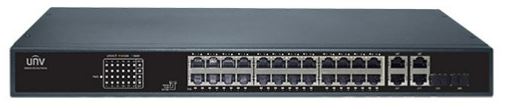

UNIVIEW UNV-NSW2010-26GT2GC-POE-IN 24 Port Gigabit POE Switch & 2 SFP Ports
Features:
- Support IEEE802.3 at standard, compatible with IEEE802.3 af by electrical equipment (PD)
- Supports PoE Power up to 30W for each PoE port;
- Auto detect power device; will not burned non-standard PoE device or normal PoE switch;
- Supports port power supply prioritization, guarantee the continuous power supply of key nodes;
- Supports IEEE802.3 x full duplex flow control and Backpressure half duplex flow control;
- Line-speed forwarding, intelligent identification
- Supports storage – and- forward for Data exchange;
Specifications:
| Model | NSW2010-26GT2GC-POE-IN |
| Ports | 24×1000Mbps PoE ports (RJ45)+2×1000Mbps ports(RJ45)+2×1000Mbps ports（Combo） |
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az |
| Switching capacity | 56Gbps |
| Forwarding performance | 41.7Mpps |
| Packet Buffer | 4Mbit |
| MAC | 8K |
| Dimensions (W×D×H) | 440mm x 207mm x 44mm |
| (17.3"×8.1"×1.7") | |
| Weight | <5kg |
| Input Voltage | AC: 100-240V, 50/60Hz |
| MAX. Power | 400W |
| PoE | 802.3at/af |
| Max. PoE Power | Max capacity: 370W |
| Max capacity for single port: 30W | |
| Cooling Fans | 2 |
| Operating Temperature | 0°C ~ 40 °C |
| Storage Temperature | -40 °C ~ 70 °C |
| Operating Humidity | 10% ~ 90% non-condensing |
| Storage Humidity | 5% ~ 90% non-condensing |
| Indicator | PWR(Green), LNK/ACT(Green), PoE(Orange) |
| Working Mode | Default(Normal mode) : All ports can communicate with each other. |
| VLAN(Secure mode): Downlink ports can communicate only with uplink ports. | |
| EXTEND(Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports. |
