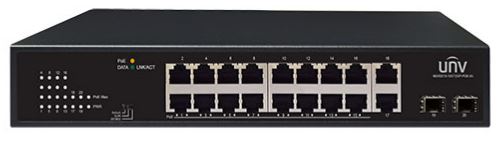

UNIVIEW NSW2010-18GT2GP-POE-IN 16 Port Gigabit POE Switch & 2 SFP Ports

Call 1-800-888-8101 for pricing
Vendor UniView
In stock

Call: 800-888-8101

Fill Out Customer Application

Discounts May Apply

UNIVIEW UNV-NSW2010-18GT2GP-POE-IN 16 Port Gigabit POE Switch & 2 SFP Ports


  • Support IEEE802.3 at standard, compatible with IEEE802.3 af by electrical equipment (PD)
  • Supports PoE Power up to 30W for each PoE port;
  • Auto detect power device; will not burned non-standard PoE device or normal PoE switch;
  • Supports port power supply prioritization, guarantee the continuous power supply of key nodes;
  • Supports IEEE802.3 x full duplex flow control and Backpressure half duplex flow control;
  • Line-speed forwarding, intelligent identification
  • Supports storage – and- forward for Data exchange;



Model NSW2010-18GT2GP-POE-IN
Ports 16×1000Mbps PoE ports (RJ45)+2×1000Mbps ports(RJ45)+2×1000Mbps ports(SFP)
Standards IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az
Switching capacity 40Gbps
Forwarding performance 29.76Mpps
Packet Buffer 4M bit
Dimensions (W×D×H) 280mm x 180mm x 44mm
Weight <4.2kg
Input Voltage AC: 100-240V, 50/60Hz
MAX. Power 200W
PoE 802.3at/af
Max. PoE Power Max capacity: 185W
Max capacity for single port: 30W
Cooling Fans 1
Operating Temperature 0°C ~ 40 °C
Storage Temperature -40 °C ~ 70 °C
Operating Humidity 10% ~ 90%  non-condensing
Storage Humidity 5% ~ 90%  non-condensing
Indicator PWR(Green),  LNK/ACT(Green),  PoE(Orange)
Working Mode Default(Normal mode) : All ports can communicate with each other.
VLAN(Secure mode): Downlink ports can communicate only with uplink ports.
EXTEND(Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports.
