UNIVIEW: UNV-IPC816SB-ADF16KMC-I1 6MP Fisheye Dome Network Camera

Call: 800-888-8101

Fill Out Customer Application

PN / UNV-IPC816SB-ADF16KMC-I1* | Download data sheet

See the Entire Scene with 360° 6MP Coverage

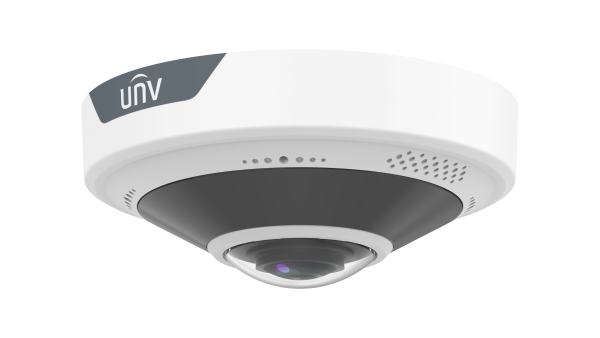

The UNV IPC816SB-ADF16KMC-I1 6MP Fisheye Dome Network Camera delivers complete panoramic surveillance from a single compact camera. Its ultra-wide 1.6mm fisheye lens provides a 360° panoramic image, helping reduce blind spots and the number of cameras required to monitor large indoor or outdoor areas.

Wise-ISP technology enhances color, detail, and motion clarity in extremely low-light environments. Intelligent analytics—including smart intrusion prevention, people-flow counting, crowd-density monitoring, and heat mapping—provide valuable security and operational insights. Multiple software and hardware decoding modes also allow users to view the scene in fisheye, panoramic, and virtual PTZ layouts.

Key Features

• 6MP resolution with a 1/2.5-inch CMOS sensor

• Maximum resolution of 2560 × 2560 at 30 fps

• Ultra-wide 1.6mm fisheye lens

• 360° panoramic image coverage

• Multiple fisheye, panoramic, and virtual PTZ viewing modes

• Wise-ISP low-light image enhancement

• 120dB Wide Dynamic Range

• Smart intrusion and cross-line detection

• Human, vehicle, and non-motor vehicle classification

• Ultra Motion Detection

• People-flow counting and crowd-density monitoring

• Heat-map analytics with a compatible management platform

• Built-in dual microphones and speaker

• Two-way audio support

• 360° infrared illumination up to 49 feet

• MicroSD storage support up to 512GB

• Ultra 265, H.265, H.264, and MJPEG compression

• IK10 vandal-resistant construction

• IP67-rated weather protection

• Powered by 12V DC or PoE

• ONVIF Profile S, G, T, and M compatible

Panoramic Surveillance with Intelligent Analytics

The IPC816SB-ADF16KMC-I1 is ideal for retail stores, lobbies, offices, schools, warehouses, public facilities, and other open areas requiring broad coverage from a single camera. Its panoramic imaging, intelligent analytics, two-way audio, and durable housing provide a versatile solution for security monitoring and occupancy insights.
