UNIVIEW UNV-ADU8706-E-V3 6 CHANNEL HD VIDEO DECODER

By UniView
Minus Plus
Login to see prices
More details Right

Call: 800-888-8101

Fill Out Customer Application

PN / UNV-ADU8706-E-V3

***THIS ITEM IS SPECIAL ORDER ONLY***
         CALL FOR PRICE & AVAILIBILITY

FEATURES

  •  Provide 6/9/12 HDMI output interfaces

     Provide 2 DVI-D and 2 HDMI input interfaces

     Up to 3840x2160@30Hz via HDMI output interfaces

     Up to 3840x2160@30Hz via HDMI input interfaces

     Single port decoding capability up to 16*1080P@30

     Up to decoding at 12MP resolution

     Support window opening, roaming and picture in picture

     Support multicast

     Support for virtual LED

     Support Fine Pixel LED display

     Decode video stream in H.265/ H.264/MPEG4

     Support up to 6/9/12 video-wall display units

     Support local upgrade and remote upgrade



Data Sheet

6 Channel High Definition Video Decoder

Product specification

Model

ADU8706-E-V3





Input

Input

4-ch HDMI (video only)

HDMI input resolution

4K interface：3840*2160(4K)@30Hz, 1920*1080(1080P)@60Hz, 1920*1080(1080P)@50Hz, 1920*1080(1080P)@30Hz, 1600*1200(UXGA)@60Hz, 1440*900(WXGA)@60Hz, 1280*1024(SXGA)@60Hz, 1280*720(720P)@60Hz, 1280*720(720P)@50Hz, 1024*768(XGA)@60Hz(4K interface：1, 2)
1080P interface：1920*1080(1080P)@60Hz, 1920*1080(1080P)@50Hz, 1920*1080（1080P）@30Hz, 1600*1200(UXGA)@60Hz, 1440*900(WXGA)@60Hz, 1280*1024(SXGA)@60Hz, 1280*720(720P)@60Hz, 1280*720(720P)@50Hz, 1024*768(XGA)@60Hz(1080P interface：3, 4)

Output

Output

6-ch HDMI



HDMI output resolution

4K interface：3840*2160(4K)@30Hz, 1920*1200(WUXGA)@60Hz, 1920*1080(1080P)@60Hz, 1600*1200(UXGA)@60Hz, 1440*900(WXGA+)@60Hz, 1280*1024(SXGA)@60Hz, 1280*720(720P)@60Hz, 1024*768(XGA)@60Hz(4K interface：1, 2, 4, 5)
1080P interface：1920*1200(WUXGA)@60Hz, 1920*1080(1080P)@60Hz, 1600*1200(UXGA)@60Hz, 1440*900(WXGA+)@60Hz, 1280*1024(SXGA)@60Hz, 1280*720(720P)@60Hz, 1024*768(XGA)@60Hz(1080P interface：3, 6)

Decoding

Decoding format

H.265, H.264, MPEG4

Decoding capability

8*12MP@20Hz
8*4K@30Hz
32*1080P@30Hz
72*720P@30Hz





Splicing

M*N (the number of windows cannot exceed the number of output channels)

Windows

36* number of output channels

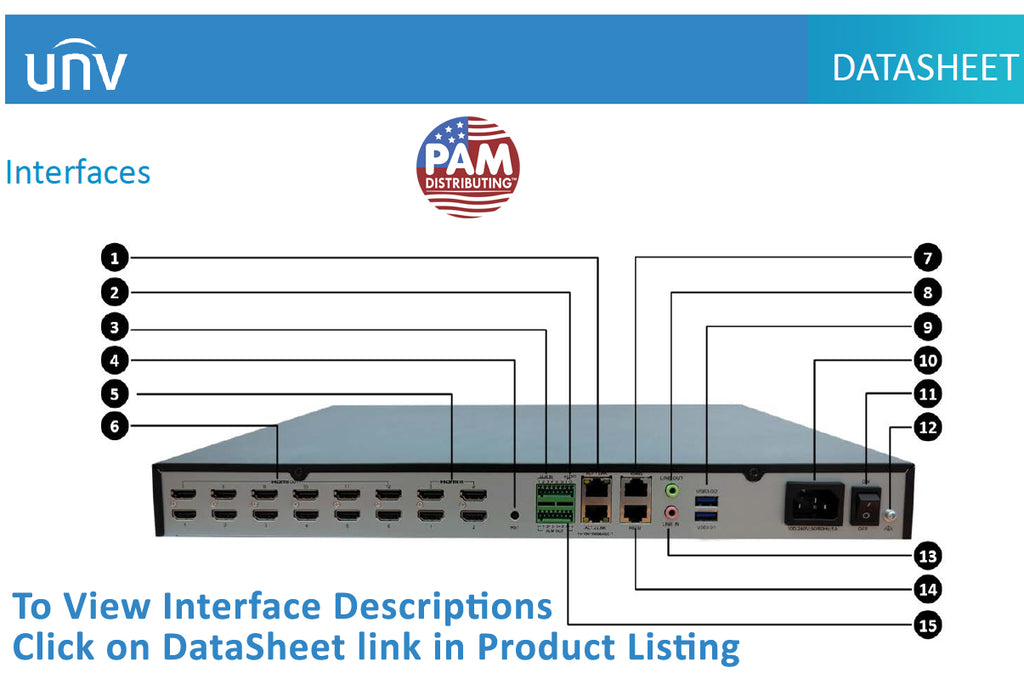

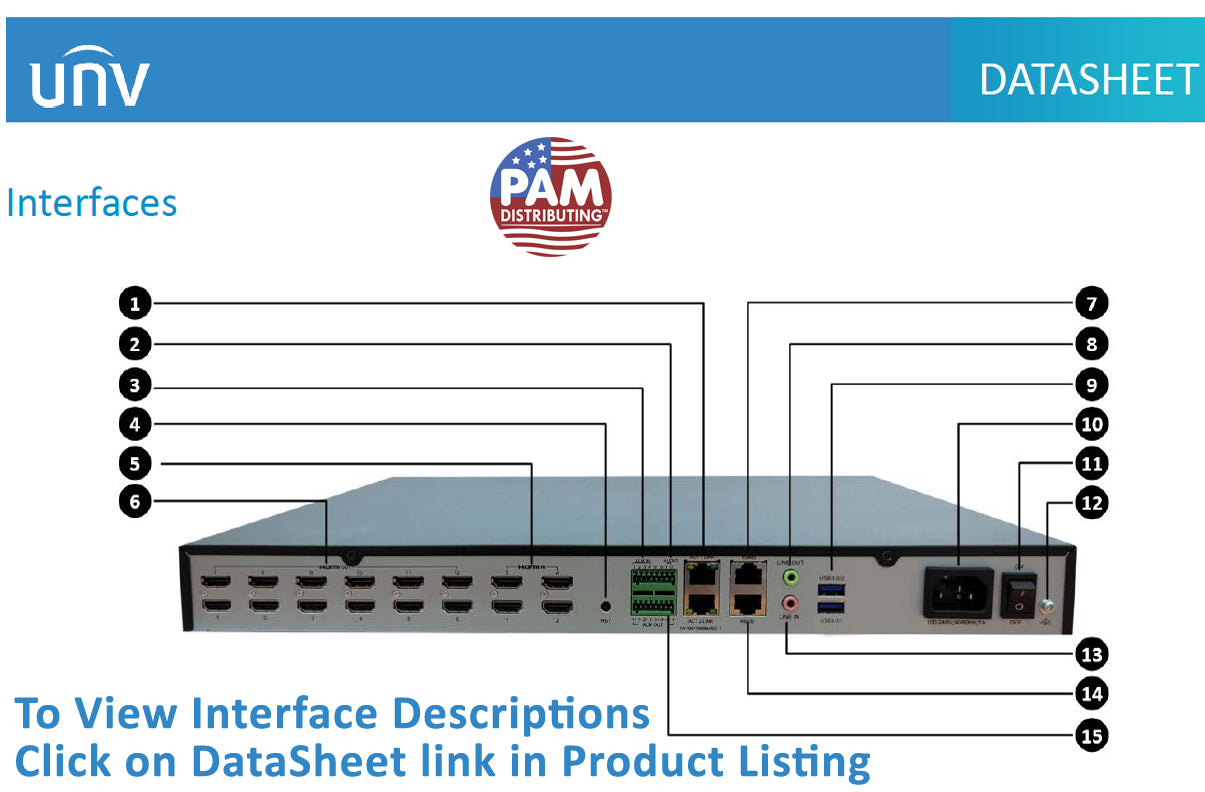

Interface

Audio input

1 * terminal audio input (reserved)
1 * 3.5mm audio input (reserved)

Audio output

1 * terminal audio output (reserved)
1 * 3.5mm audio output, dual channel

Alarm input

4 * terminal alarm input (reserved)

Alarm output

4 * terminal alarm output (reserved)

Serial port

1 * RS232, 1 * RS485

Ethernet

2 * GE port, RJ45 interface, half-duplex/full-duplex Ethernet, 10M/100M/1000M Base-T adaptive

USB

2 * USB3.0

General

Dimensions (W*H*D)(mm)

440 * 44 * 339

Weight (kg)

3.83

Max. power consumption (W)

32

Power supply

100V to 240V AC; 50Hz/60Hz

Operating temperature

-10°C to 55°C

Operating humidity

10% to 90% RH, non-condensing
