PN / UNV-NSW2010-10GT-POE-IN *
Discounts May Apply
Features:

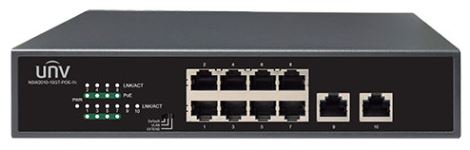

UNIVIEW NSW2010-10GT-POE-IN 8 Port Gigabit POE Switch
- Support IEEE802.3 at standard, compatible with IEEE802.3 af by electrical equipment (PD)
- Supports PoE Power up to 30W for each PoE port;
- Auto detect power device; will not burned non-standard PoE device or normal PoE switch;
- Supports port power supply prioritization, guarantee the continuous power supply of key nodes;
- Supports IEEE802.3 x full duplex flow control and Backpressure half duplex flow control;
- Line-speed forwarding, intelligent identification
- Supports storage – and- forward for Data exchange
Specifications:
| Model | NSW2010-10GT-POE-IN |
| Ports | 8×1000Mbps PoE ports (RJ45)+2×1000Mbps ports(RJ45) |
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at |
| Switching capacity | 20Gbps |
| Forwarding performance | 14.88Mpps |
| Packet Buffer | 2Mbit |
| MAC | 2K |
| Dimensions (W×D×H) | 220mm x 150mm x 44mm |
| (8.7"×5.9"×1.7") | |
| Weight | <1.24kg |
| Input Voltage | AC: 100-240V, 50/60Hz |
| MAX. Power | 130W |
| PoE | 802.3at/af |
| Max. PoE Power | Max capacity: 120W |
| Max capacity for single port: 30W | |
| Cooling Fans | 1 |
| Operating Temperature | 0°C ~ 40 °C |
| Storage Temperature | -40 °C ~ 70 °C |
| Operating Humidity | 10% ~ 90% non-condensing |
| Storage Humidity | 5% ~ 90% non-condensing |
| Indicator | PWR(Green), LNK/ACT(Green), PoE(Orange) |
| Working Mode | Default(Normal mode) : All ports can communicate with each other. |
| VLAN(Secure mode): Downlink ports can communicate only with uplink ports. | |
| EXTEND(Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports. |
