PN/ SEC-SM-4201-LQ*

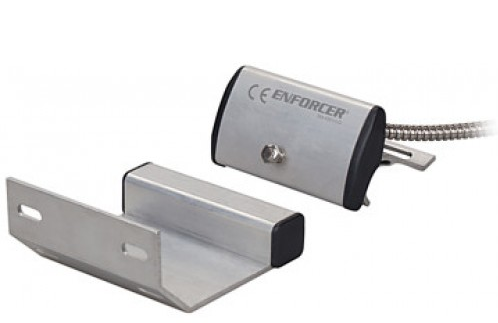

Track-Mount Overhead Door Magnetic Contact Switch
FEATURES:
- Used for overhead doors in both industrial and residential situations where a wide gap is present
- Adjustable to fit most door-channel widths
- Rugged aluminum housing
- Contact Type: SPST, iridium-plated to have a high melting point and Vickers hardness, which results in higher handling power and long life
- Mounting bracket included
- 36" (91cm) wire leads enclosed in armored cable
- 3" (76mm) Gap
- Lifetime limited warranty
SPECIFICATIONS:
| Loop Type | N.C. |
| Operation Gap | 3" (76mm) |
| Material - Case | Aluminum |
| Material - Terminals | 36" (91cm) armored leads |
| Contacts | Iridium-plated |
| Contact Rating | 0.1A@100VDC (max), 1.0A@10VDC (max), 10W (max) |
| Operating Temperature | -15°~160°F (-25°~70°C) |
| Switch Cycles | 50 Million (0.1mA@5VDC) |
| Switch Dimensions | 3-7/64" x 2-19/32" x 1-13/16" (79 x 66 x 46 mm) |
| Magnet Dimensions | 3-7/32" x 3-17/32" x 1-3/4" (82 x 90 x 44 mm) |
| Magnet Type | Ferrite |
