KERI SYSTEMS PXL-500W Tiger II Controller (Wiegand compatible) 1 Door/2 Reader Controller

SKU: KER-PXL-500W

KERI SYSTEMS PXL-500W Tiger II Controller (Wiegand compatible) 1 Door/2 Reader Controller

PN / KER-PXL-500W *

PAM Distributing is an Authorized Keri Systems Reseller

The PXL-500 Tiger Controller has all of the functionality needed to manage a single door, alarm output, and 2 reader ports. A second door can be added when used with SB-593 Satellite Expansion Board.

The SB-593 Satellite Expansion Board economically provides second door control plus extra general purpose inputs and outputs.

Features

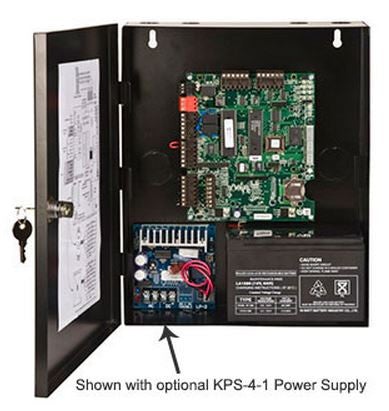

  • Locking Metal Enclosure that can also house KPS-4 Power Supply and battery
  • Added RAM for increased cardholder capacity (up to 65K per controller)
  • On-board LAN socket for LAN-500 Adapter

Installer Features

  • Double row header pins to ensure SB-593 is properly seated on PXL
  • Additional LED indicator to confirm SB is properly seated
  • RS-232 connector changed from DB-9 to quick disconnect terminal block
  • RS-485 continuity indicator LED
  • RS-485 connector different size so as not to interconnect with power input

Other Great Installation Features

  • On-board diagnostic tests built into the controller firmware
  • Diagnostic LEDs on the controller board to assist with troubleshooting communication and controller power issues
  • Automatically senses communication method (direct connect to PC or via modem)
  • Auto-Configures RS-485 grounding for optimum performance - NO JUMPER SETTINGS
  • Quick disconnect terminals
  • Software auto-configures system components, no data entry required
  • Push-button setting and visual LED display of address selection - NO DIP SWITCHES
