SUPREMA BIOMETRIC ACCESS CONTROLLER WITH 4 FINGERPRINT SLAVE READERS

Call 1-800-888-8101 for pricing
Vendor Suprema

PN:SUP-CSR-4DR-R2*

BIOMETRIC ACCESS CONTROLLER WITH 4 FINGERPRINT SLAVE READERS

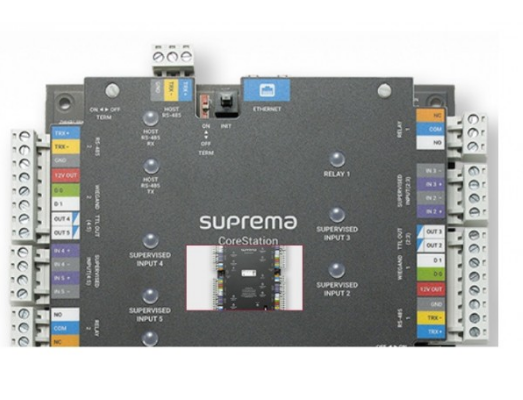

CS-40 BIOMETRIC ACCESS CONTROLLER

  • Centralized, secure storage of biometric and access group data
  • No Ethernet connection to the edge devices
  • No data stored on the edge devices
  • Secure communication via TLS 1.2
  • AES-256 encryption
  • System Flexibility and Scalability
  • OSDP 2.0 compatible
  • Elevator control with OM-120
  • Supports up to 132 access points with DM-20 and Secure I/O 2 (132 x Wiegand readers/64 x RS-485 readers)
  • 3rd party Wiegand reader
  • 4ch onboard reader control (Wiegand, RS-485, relays, inputs, outputs, power out, AUX)
  • Leverages existing wiring

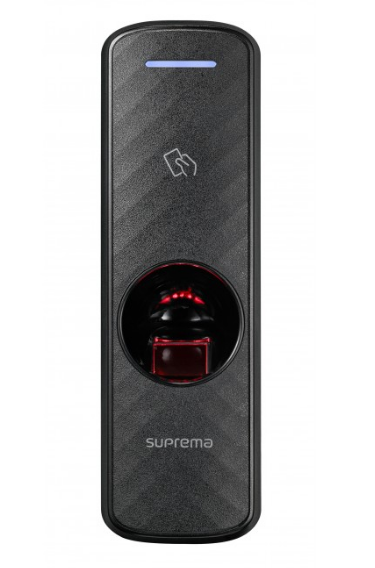

BER2-OD COMPACT FINGERPRINT READER

  • Fingerprint
  • Optical Sensor (OP6)
  • SUPREMA / ISO 19794-2 / ANSI 378
  • MINEX certified and compliant
  • 1.0 GHz
  • 32MB Flash + 32MB RAM
  • Multi-Color
  • Multi-tone Buzzer
  • 1ch Slave, OSDP V2.1.6
  • Supported
  • DC 12V
  • -20°C ~ 50°C
  • 0% ~ 80%, non-condensing
  • 50 x 164 x 37.5
  • 158g
  • CE, FCC, KC, RoHS, REACH, WEEE
