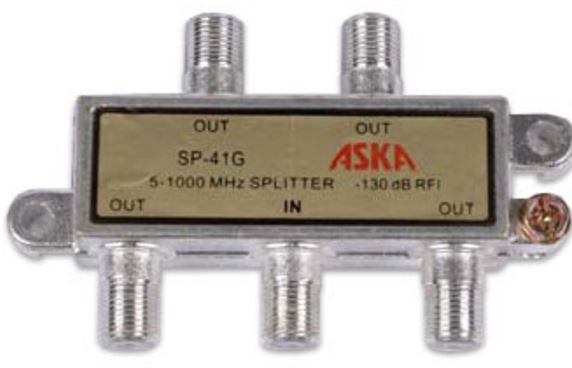

SPLITTER 5-1000 MHZ (1GHz) 4 Way Solder Back
PN / ASK-SP41G *
1GHz CATV SOLDER BACK SPLITTER - (4-Way)
NO DC POWER PASSING DESIGN.
Tin plated zinc die-cast housings for perfect corrosion protection and grounding. Completely soldered back provides the highest possible RFI shielding more than 130dB. High precision machine threaded F-ports with NO DC POWER PASSING DESIGN.
Applications may vary from headend combining to typical drop installations. This splitter series should be used where increased bandwidth is being designed into the distribution systems. Printed circuit board ensures consistent RF performance and high port to port isolation. Available with equal Loss ports or unbalanced Loss ports for 3-way splitters
