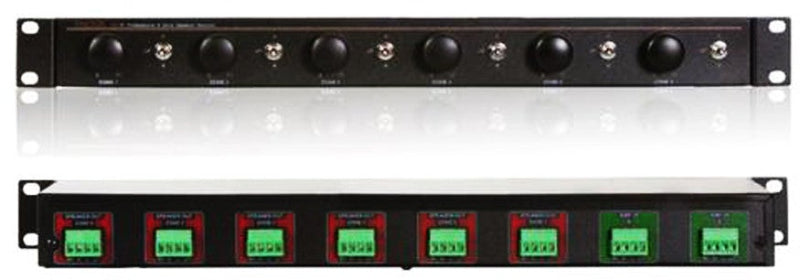

Factor VC-6 Speaker Selector Impedance matching 6 Stereo Zones

SKU: FAC-VC-6

Factor VC-6 Speaker Selector Impedance matching 6 Stereo Zones

PN / FAC-VC-6 *

Impedance Matching Speaker Selector

The Factor Electronics VC-6 six zone impedance matching speaker selector sets a new standard for distributing audio. The VC-6 is designed
for professional installations with 200 watts power handling per zone and an extended range of features.
The VC-6 turns any amplifier into a complete distributed audio system with two sources to six zones.

Features:
Six stereo zones
200 watts RMS per zone
Six notched volume controls for easily level matching
Amplifier A/B/Off per zone
Connect up to 12 x 8 ohm speakers to 8 ohm stable amplifiers
Speaker outputs via removable terminal block 12awg connectors
Amplifier A/B inputs via removable terminal block 12awg connectors
Includes 19” rack kit

Specifications:
Frequency Response: 50 Hz – 22 kHz
Power Rating: 200W per zone into 8 ohm stereo loads
Six reset-able volume controls
Toggle switch amp A/B/Off per zone
12awg removable terminal block input and output connectors
19” rack kit included


Dimensions: (W*D*H):17” (431.8mm) x 9.5” (241.3mm) x 1.75”
(44.45mm) with rack kit width = 19” (482.6mm)
Weight: 15lbs/6.8kg



Owners Manual
