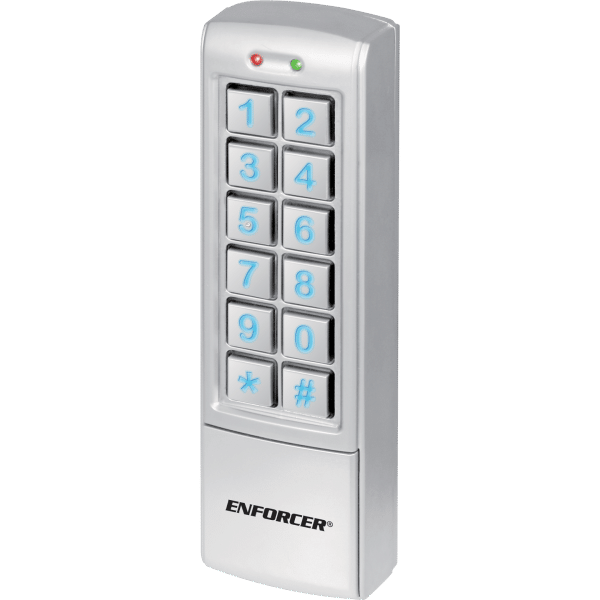

SECO-LARM SK-2323-SPQ Mullion-Style Digital Access Keypad – Adds Built-In Proximity Card Reader
Vendor SECO-LARM USA, Inc.
PN / SEC-SK-2323-SPQ *
Mullion-Style Digital Access Keypad – Adds Built-In Proximity Card Reader
DESCRIPTION
• 12~24 VAC/VDC operation
• 1,010 Users (Output #1: 1,000 users, Output #2: 10 users)
• 2 Form C relays, each rated 1 Amp @ 30VDC
• Each relay has programmable output time from 1~99 seconds or toggle
• Output #2 can be programmed for use with a doorbell
• 2 Egress inputs and 1 door sensor input
• Backlit keys for easy nighttime use
• 2 Multi-colored status LEDs
• All features are programmed directly from the keypad – no need for an external programmer
• EEPROM memory protects programmed information in case of power loss
• Optical tamper sensor for added security
• Circuitry is potted with epoxy for outdoor use
• IP65 Weatherproof rating, rugged aluminum construction
• Built-in proximity card reader
• 3 Programmable access modes for Output #1: Card Only, Card or Code, and Card with Code
• Output #2 may have either a card or a code programmed for each user
SPECIFICATIONS
| Type | Mullion-Style Weatherproof Digital Access Keypads |
| Number of User Codes | Up to 1,010 |
| Operating Voltage | 12~24 VAC/VDC |
| Current Draw – Standby | 64mA@12VDC |
| Current Draw- Active | 1 Relay active 92mA@12VDC 2 Relays active 120mA@12VDC |
| Relay Outputs (2) | 1A@30VDC, Form C, NO/COM/NC |
| IP Rating | Weatherproof IP65 |
| Egress Inputs | 2, N.O. Ground |
| Door Sensor Input | N.C. Ground |
| Tamper Sensor | Optical |
| Proximity Reader Frequency | 125kHz |
| Keypad LED Life | 60,000 hours (over 6.8 years) |
| Proximity Reader Sensing Distance | 1-15/16″ (50 mm) |
| Operating Temperature | -4°~122° F (-20°~50° C) |
| Dimensions | 6″ x 1-3/4″ x 15/16″ (152x44x24 mm) |
| Weight | 11-oz (312g) |
