PN / SEC-SD7104SGEX1 *

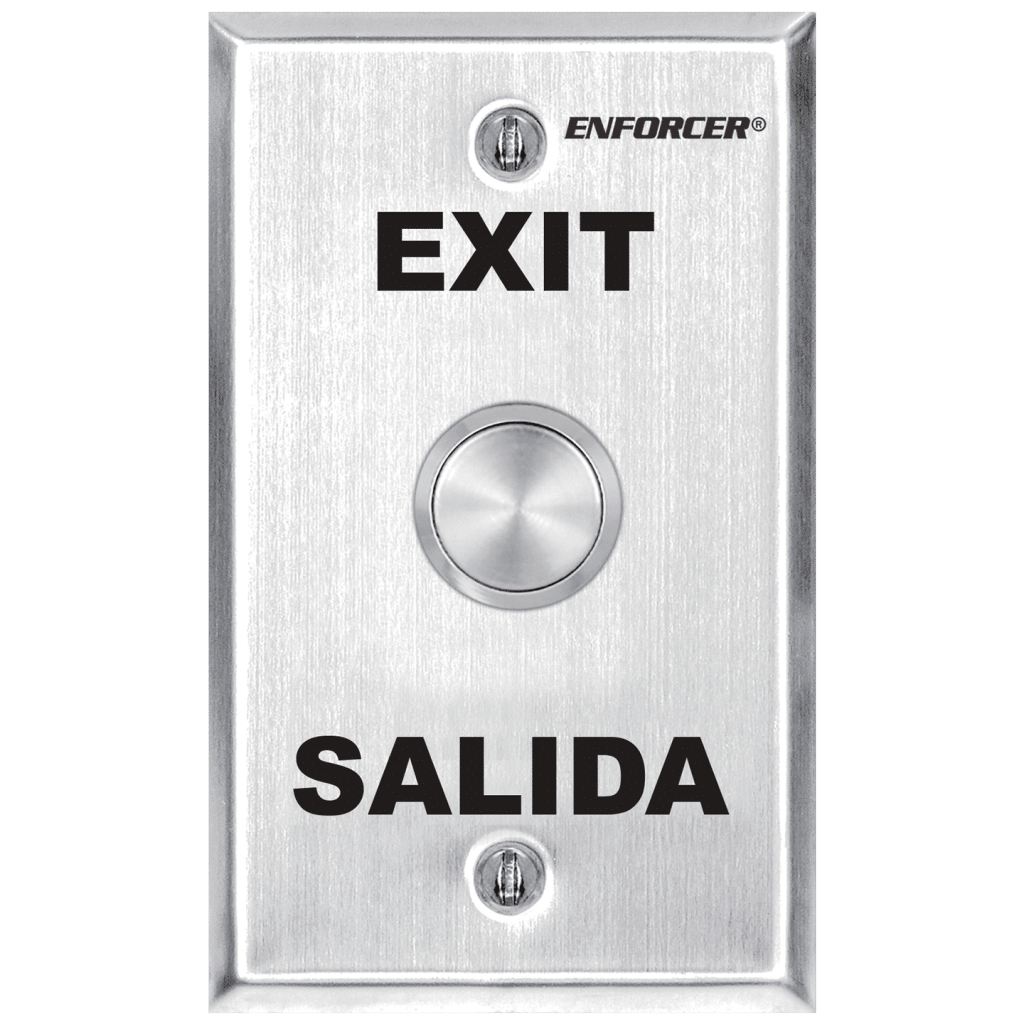

Vandal-Resistant RTE Plate – Single-gang
DESCRIPTION
- ETL, Conforms to UL Std. 294
- Switch contact rating: 50A@24VAC
- Equipped with NO/NC (DPST) switch
- Weather-resistant (IP65)
- “EXIT” and “SALIDA” silk-screened on plate
- Vandal-resistant 1″ (25mm) pushbutton switch
SPECIFICATIONS
| Plate | Single-gang |
| Contact rating | 50A@24VAC |
| Switch type | NO/NC |
| Destructive attack | Level I |
| Line security | Level I |
| Endurance level | Level I |
| Standby power | Level I |
| IP Rating | Weatherproof IP65 |
| Operating Temperature | -4°~140° F (-20°~60° C) |
| Dimensions | 4-1/2″x2-3/4″x2-13/16″ (115x70x20 mm) |
