SECO-LARM SD-998C-D3AQ 1/2″ Tamper-Resistant Electric Rim Strike

Call 1-800-888-8101 for pricing
In stock

PN / SEC-SD-998C-D3AQ *

DATA SHEET

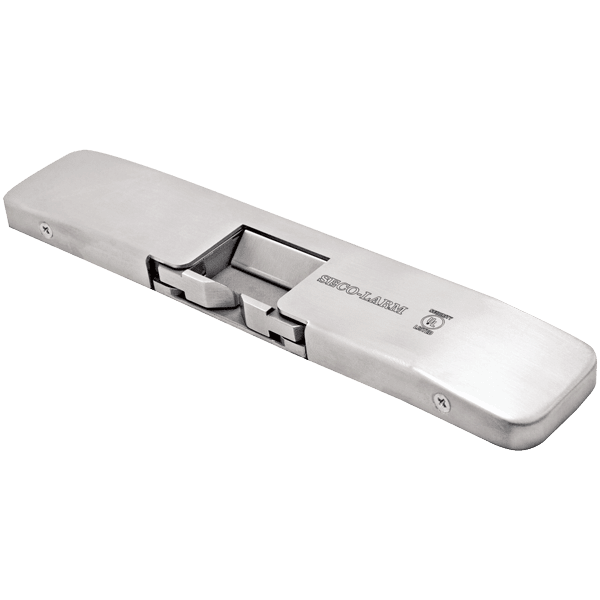

1/2″ Tamper-Resistant Electric Rim Strike

The SECO-LARM Surface-Mount Electric Rim Strike designed with the strength and durability for use with rim-type exit devices with a Pullman latch bolt (1/2″ throw). The strike features 12/24 VDC operating voltage, selectable fail-safe/fail-secure operation, horizontal adjustment, and a surface-mount metal housing, eliminating the need for frame cutting during installation.

product_iconproduct_iconproduct_icon

DESCRIPTION

  • UL 294 and 1034 Listed
  • Tamper-resistant
  • 12/24 VDC Operating voltage
  • Non-polarized connection
  • Horizontal adjustment
  • Accommodates up to 3/4″ Pullman latch
  • Reversible non-handed design
  • Stainless steel construction
  • Surface-mount on metal or wood frames
  • Works with standard rim-type exit devices including SECO-LARM SD-962AR-36A and SD-962AR-36G
  • For Indoor Use Only
  • Static strength – 1,500-lb (6673N)
  • Tested for 250,000 cycles (UL Tested)
  • Low current draw: 540mA@12VDC, 270mA@ 24VDC
  • Field-selectable for fail-safe or fail-secure operation
  • Spacers included: 1x-1/16″, 2x-1/8″ (1.5mm, 3mm)
  • The SD-998C series is intended to be used with UL Listed Exit Hardware
  • The SD-998C series shall not impair the intended operation of an emergency unit
  • The SD-998C series shall not impair the operation of panic hardware mounted on the door

SPECIFICATION

Operating Voltage 12/24 VDC
Current Draw 540mA@12VDC , 270mA@24VDC
Latch Throw 1/2″
Static Strength 1,500-lb (6673N)
Dynamic strength 70ft-lb (95J)
Endurance 250,000 cycles (UL Tested), Level IV
Destructive attack Level I
Line security Level I
Standby power Level I
Operating Temperature 14°~120° F (-10°~49° C)
Operating Humidity 0~85%
Dimensions 9″x1-3/4″x1/2″ (229x45x13 mm)
