Outdoor Wave-to-Open Sensor – Single-Gang – English

The ENFORCER Outdoor Wave-to-Open Sensor is a full-featured exit plate which uses IR technology to allow egress from a protected area or activate a device with the simple wave of a hand. Since no touch is required, this sensor is suitable for use in hospitals, clinics, labs, cleanrooms (to reduce the risk of contamination), schools, factories, or offices.



  • ETL, Conforms to UL Std. 294
  • Adjustable sensor range up to 7″ (18cm)
  • Weatherproof (IP65) for outdoor use*
  • Stainless steel plate
  • 1.2A relay, adjustable trigger duration 0.8~30 seconds or toggle
  • LED illuminated sensor area for easy identification

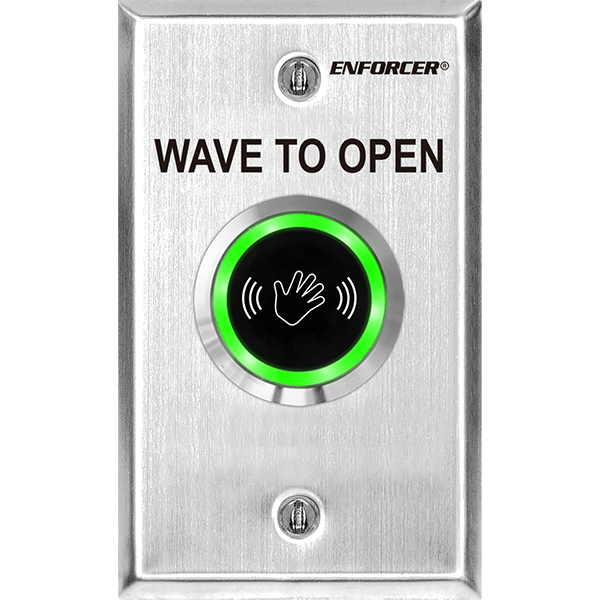

  • Selectable LED colors (turns from red to green or green to red) to show sensor activated

​*When properly installed


Operating temperature 12~24 VDC
Current draw (max. ±10%) Standby red (12/24 VDC): 18mA / 23mA
Triggered green (12/24 VDC): 23mA / 29mA
Standby green (12/24 VDC): 14mA / 18mA
Triggered red (12/24 VDC):  28mA / 35mA
Relay type SPDT dry contact, 1.2A@24VDC
Response time 10ms

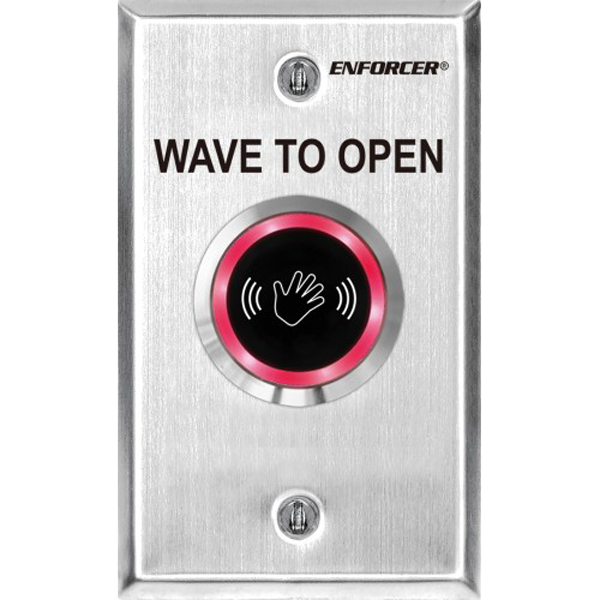

LED Standby: Red*
Triggered: Green*
Ouput duration 0.8~30 s, toggle
Range 2″~7″ (5~18 cm)
Destructive attack level Level I
Line security Level I
Endurance level Level IV
Standby power Level I
IP Rating Weatherproof, IP65
Operating Temperature -4°~131° F (-20°~55° C)
Dimensions 2-3/4″ x 4-1/2″  (70 x 115 mm)
Weight 3.8-oz (108g)

*Color function reversible †When properly installed
