PN/ SEC-E-941DA-1K2Q*
*SPECIAL ORDER

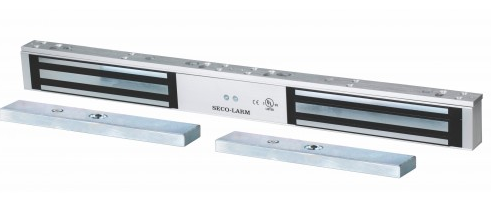

SECO-LARM Double-Door Maglock – 1,200-lb Holding Force, UL
FEATURES:
- Anodized aluminum housing (US 28)
- 12 or 24 VDC (selectable)
- No residual magnetism
- Adjustable mounting bracket
- MOV surge protection
-
Complete mounting hardware for
typical installations -
"L" bracket and "Z" brackets available for
easy mounting - Detachable face plate
- UL and ULC listed
- CE listed
- RoHS compliant
SPECIFICATIONS:
| Holding Force | 1,200-lb (545kg) per door |
| Operating Voltage | 12 or 24 VDC±10% |
| Current Draw | 500mA@12VDC per door (1A total) 250mA@24VDC per door (500mA total) |
| Operating Temperature | 14º~131º F (-10º~55º C) |
| Certification | UL, ULC, CE |
| Electromagnet Dimensions | 21"x1-5/8"x2-5/8" (536x42x67 mm) |
| RoHS Compliance | Yes |
| Armature Dimensions | 7-1/4"x5/8"x2-3/8" (185x16x61 mm) |
| Case Shipping Weight | 43-lb (19.5kg) |
| Weight | 21-lb (10kg) |
| Case Quantity | 2 pcs |
