SECO-LARM 7103GC-PEQ Illuminated RTE Plate – Slimline

Call 1-800-888-8101 for pricing
In stock

Call: 800-888-8101

Fill Out Customer Application

PN / SEC-7103GC-PEQ * | Download data sheet

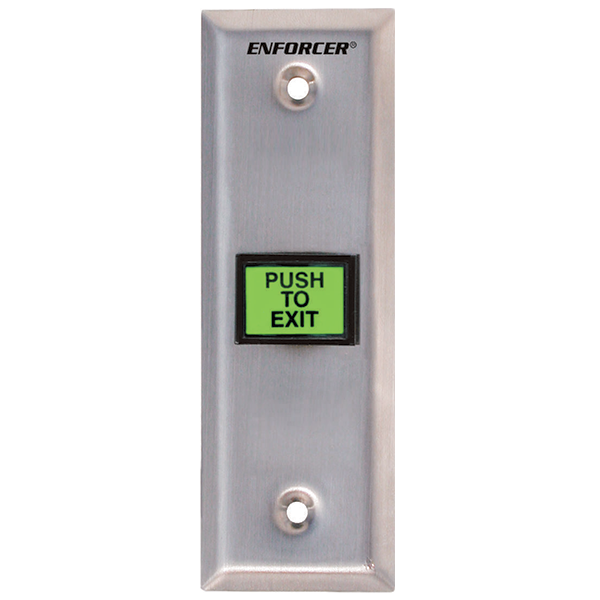

Illuminated RTE Plate – Slimline



  • ETL, Conforms to UL Std. 294
  • Square illuminated push button with caption “PUSH TO EXIT”

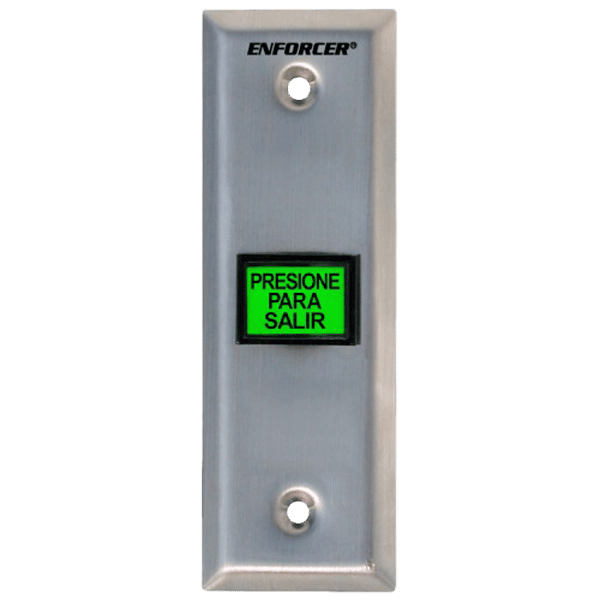

  • Message language can be easily changed in the field to Spanish or French
  • CE and UL approved switch is rubber-sealed to prevent liquid penetration
  • Includes stainless-steel slimline plate
  • Includes six colored 12-inch wire leads with easyto-attach spade lugs for fast installation
  • Long-life green LED 12/24 VAC/VDC (~35,000hr)
  • Weather resistant when properly installed
  • Momentary switch, DPST, NO/NC contacts rated 5A@24VAC max.
  • UL 294 Access control levels
    • Destructive attack: Level I
    • Line security: Level I
    • Endurance: Level I
    • Standby power: Level I


Contact Rating NO/NC contacts rated 5A@24VAC
Material Stainless-steel
Dimensions 4-1/2”x1-1/2″x1-15/16″ (114x38x49mm)
