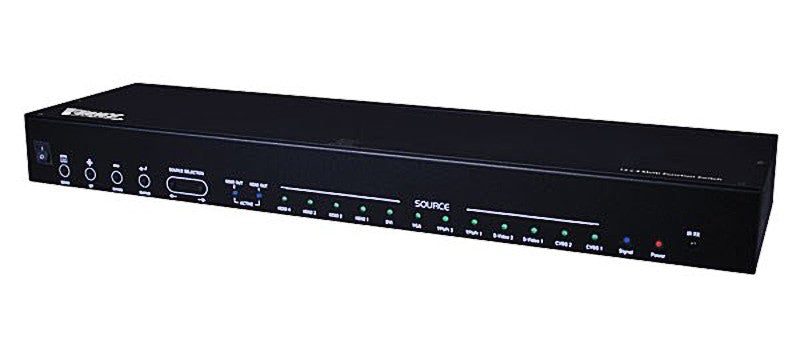

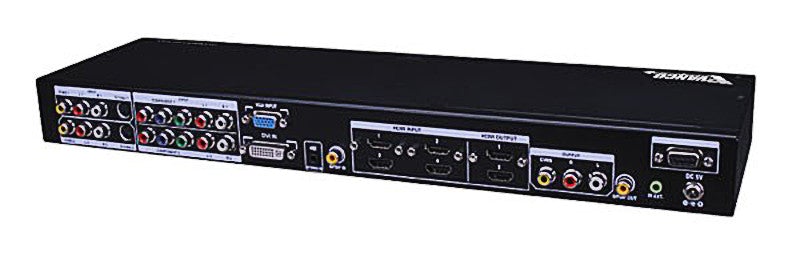

VANCO 280595 HDMI® 12 x 3 Multi-Function Switch/Scaler

Call 1-800-888-8101 for pricing
Vendor VANCO
In stock

PN / VAN-280595 *

VANCO 280595 12x3 Multi-Function Switch/Scaler

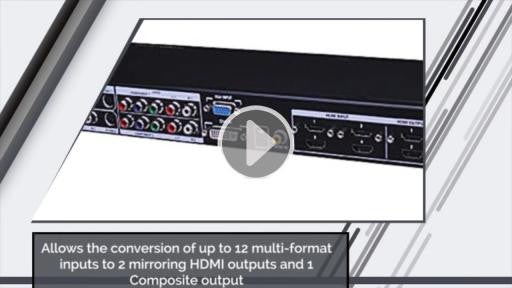

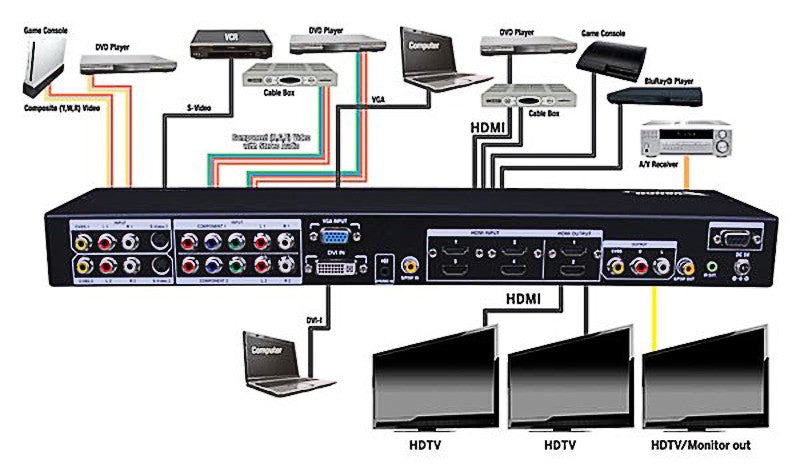

  • Allows the conversion of up to 12 multi-format inputs to 2 mirroring HDMI outputs and 1 Composite output
  • Upscales standard definition/high definition sources to resolutions up to 720p or 1080p, with both HDMI outputs working simultaneously along choice of composite output - some VESA formats can be bypassed by using VGA and DVI-I ports
  • Buffers, amplifies and equalizes the signal to ensure optimum transmission and reception over the length of the cable run without any loss in video/audio quality
  • Inputs supported include:
    • 1 x VGA source
    • 2 x S-Video source
    • 2 x Composite AV sources with LR audio
    • 2 x Component sources with LR audio
    • 4 x HDMI sources
    • 1 x DVI-I source
    • Stereo input for audio
    • S/PDIF input for digital audio
  • HDMI Outputs feature bypass from either stereo input or S/PDIF input
  • Features noise reduction and video enhancements when upscaling to 720p/1080p
  • DVI-I supports both analog and digital formats with L/R and/or S/PDIF audio input
  • Detached audio output by L/R and optical
  • Delivers uncompressed digital video with zero signal loss
  • Supports high definition resolutions up to 1080p
  • Dual switching option: IR control with included remote and manual front panel control
  • IR receiver included for IR extension
  • Serial port for firmware update
  • Power Supply: 5V 4A DC, UL Listed
  • Dimensions: 17.25” (438.15mm) W x 1.75” (44.45mm) H x 4.75” (120.65mm) D

 VAN-280595 Product Manual


Part No Pkg. UPC
280595 Packaged 741835101837
