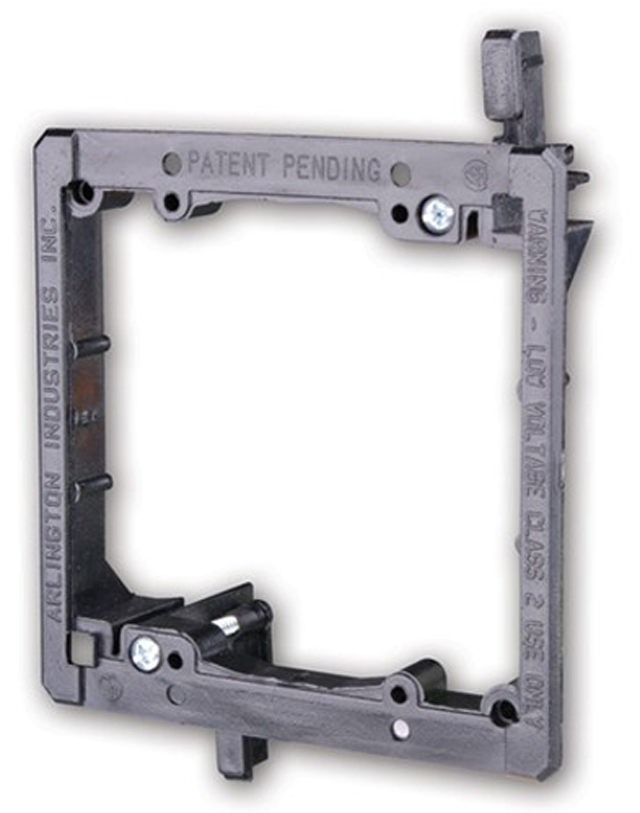

PVC Low Voltage Mounting Brackets- Dual
PN / VAN-LV2 *
- Use to Retrofit Telephone, Coax, or Network Installation Where an Electrical Box is Not Present
- Seats Wall Plates Flush with Mounting Surface
- Adjusts to Fit 1/4” to 1” Thick Wallboard, Paneling, or Drywall.
- UL and CSA Listed
This single gang mounting bracket is designed for use in homes and/or offices where you need to correctly mount a single gang wall plate for low voltage installations such as networking, Home Theater or other similar audio/video applications. To install cut a rectangular hole in the dry wall/wall surface which is approximately the width and height of the raised rectangle on the back. A correctly sized hole will have the outer portion of the mount backed by the wall, so that it does not push through. One then backs up on the flap screws enough so that they clear the dry wall upon insertion. Once inserted you tighten the screws back down, making sure the flaps swing outward, until the mounting bracket is snugly against the wall. Now you have a mount to which to screw your wall plate to.
