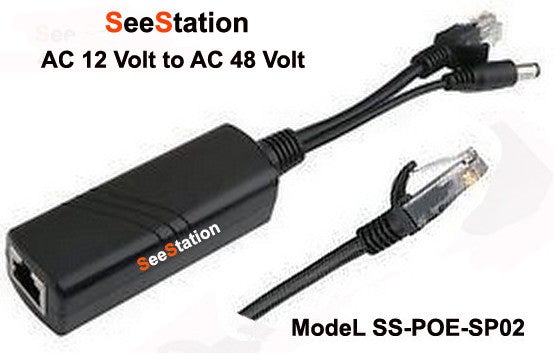

POE SPLITTER 48V, 300M TRANSFER DISTANCE, 10/100M DATA TRANSFER
Couldn't load pickup availability
Vendor SeeStation
PN / SS-POE-SP02 *
POE Splitter Cable Adapter IEEE802.3af 12VDC 2A For IP Cameras.
Use with AC48V POE Switch, Power Supply or other power device Transfer distance of 100M. Compatible with all brands POE switches, network cameras. lightning proof and interference resistant.
Main Features:
- RJ45 female INPUT Port:
- Support the IEEE 802.3af the Power over Ethernet PoE Switch
- Support 48V Unsolicited Power Over Ethernet PoE Switch
- Support 48V Unsolicited Power Over Ethernet PoE Adapter
Specification:
- Compliant with IEEE802.3af 15.4W
- Power Input: DC44~57V
- Power Output: DC12V, max 2A
- Splits the 48V DC power over RJ-45 Ethernet cable into different DC output
- Data & Power INPUT Port: from RJ45 female
- Data Output Port: RJ45 Male
- Power Output Port: 5.5x2.1mm DC Power Plug
- Data Transfer Rate: 10/100Mbps
- Data Transfer Distance 300M
- Devices will be detected before poe input
- Power Pin: support both 1/2(+),3/6(-) or 4/5(+),7/8(-)
- Body size: 80 x 26x 26 mm
- DC cable length:210mm
- RJ45 Modular Plug cable length:210mm
