PDK-RDRKP: Keypad Proximity Reader

Call 1-800-888-8101 for pricing
Vendor PDK
In stock

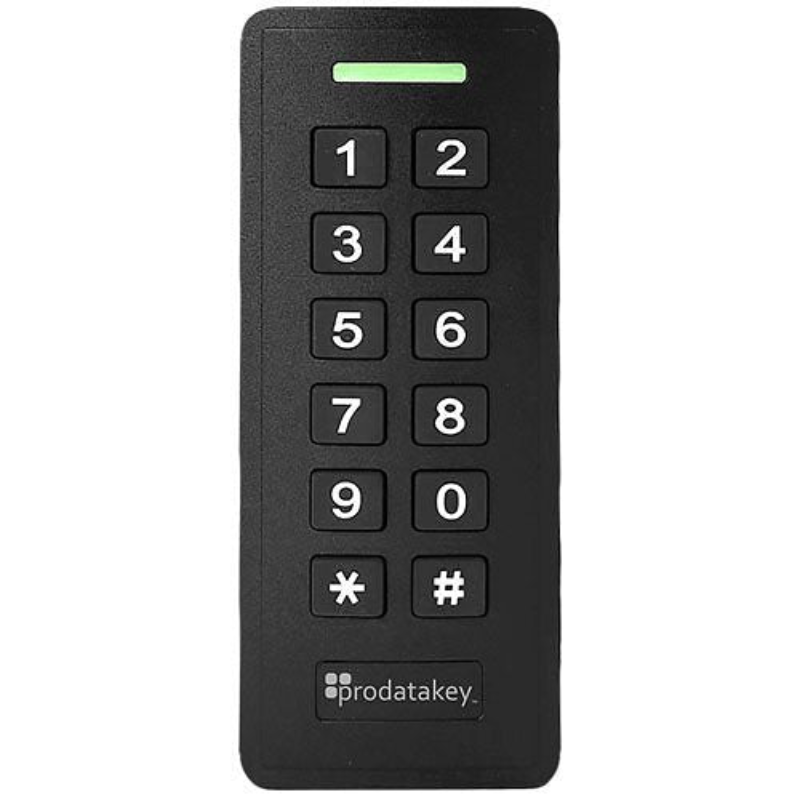

ProdataKey Keypad Proximity Reader

The PDK-RDRKP Keypad Proximity Reader is ideal for both indoor and outdoor use, offering versatile access options using either everyday proximity credentials or PIN numbers for secure area entry. Enhance security with two-factor authentication, requiring users to provide both proximity credentials and a PIN number.

This Wiegand output keypad integrates a proximity reader and features backlighting along with a built-in Light Dependent Resistor (LDR) sensor for anti-tamper protection. Its waterproof design allows for installation indoors or outdoors, even in challenging environments.

Product Overview

  • RFID Proximity 26- to 37-bitWiegand-based 125 kHz pass-through of bit length
  • Output converts toWiegand formats
  • Voltage: 9 to 18V DC at the reader (12V DC recommended)

Key Features

  • RFID Proximity: 26- to 37-bit Wiegand-based 125 kHz pass-through
  • Output converts to Wiegand formats
  • Voltage: 9 to 18V DC (12V DC recommended)
  • Electronics potted and sealed with tamper-resistant epoxy for durability in any environment
  • IP66-rated for moisture and dust resistance
  • Compliant with FCC, RoHS, and UL Standard 294
  • Includes a 5 kHz audio buzzer
