PDK-RCNEW: Red CloudNode Built-in Single Door Controller w/ Ethernet + Wireless Connectivity

Call 1-800-888-8101 for pricing
Vendor PDK

Call: 800-888-8101

Fill Out Customer Application

PN / PDK-RCNEW * | Download data sheet

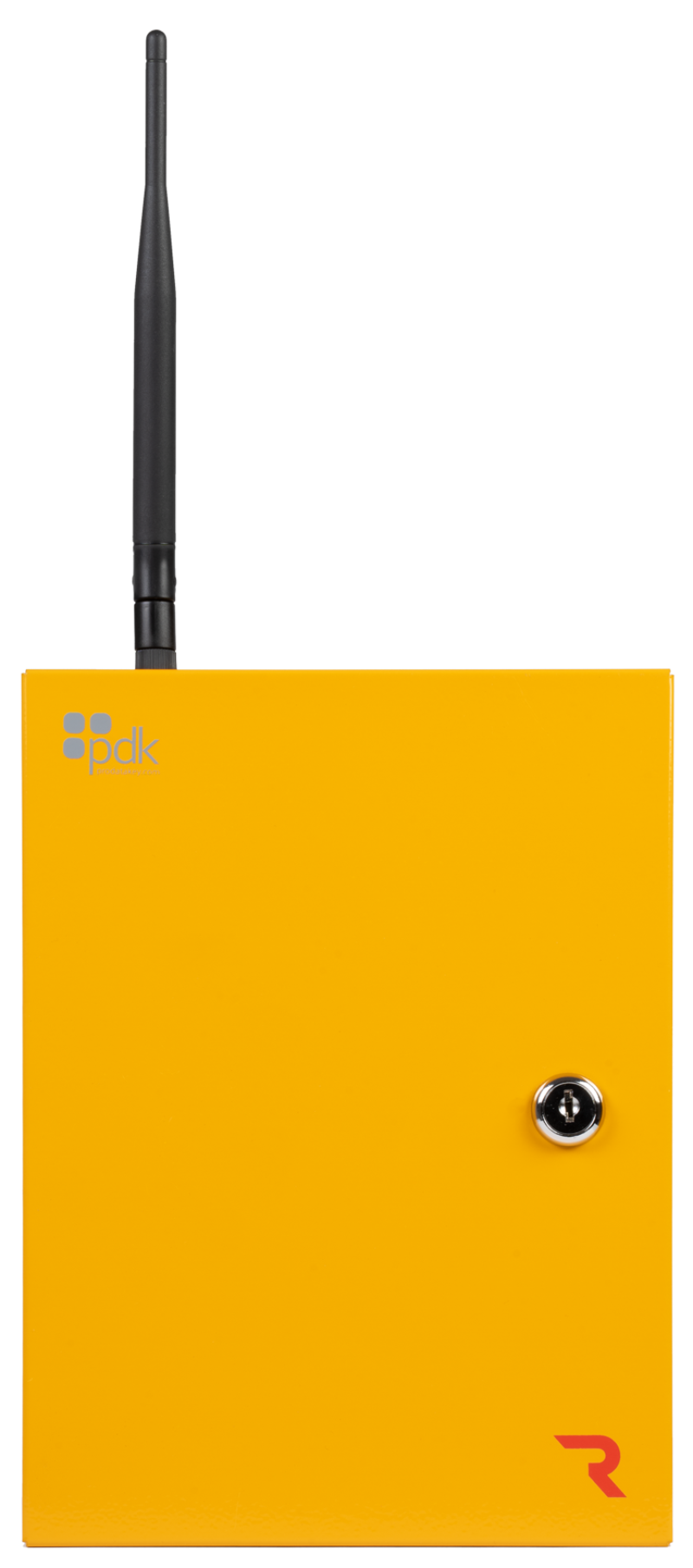

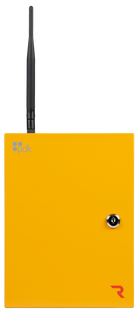

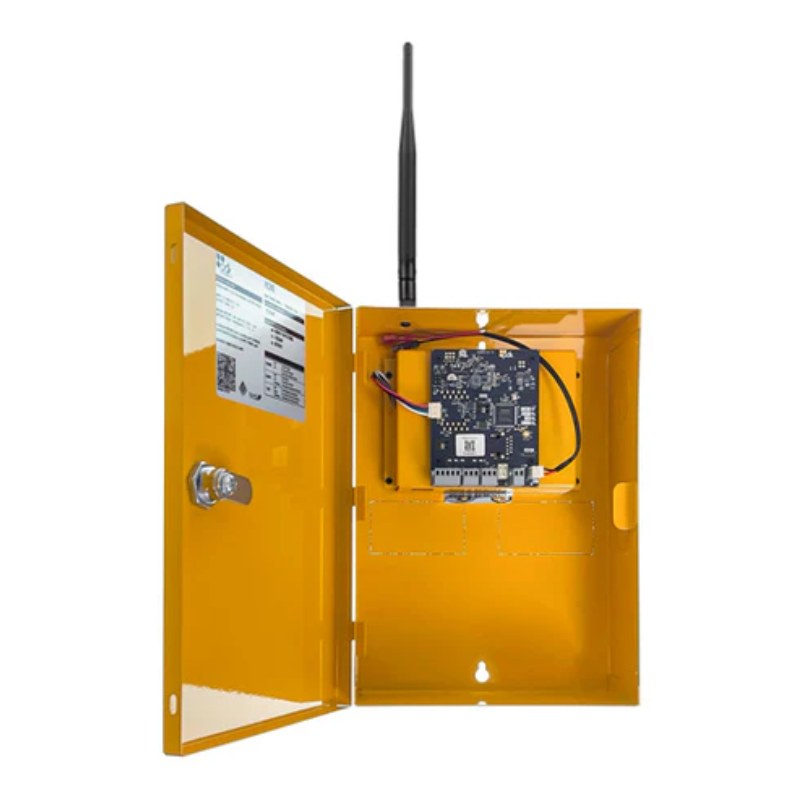

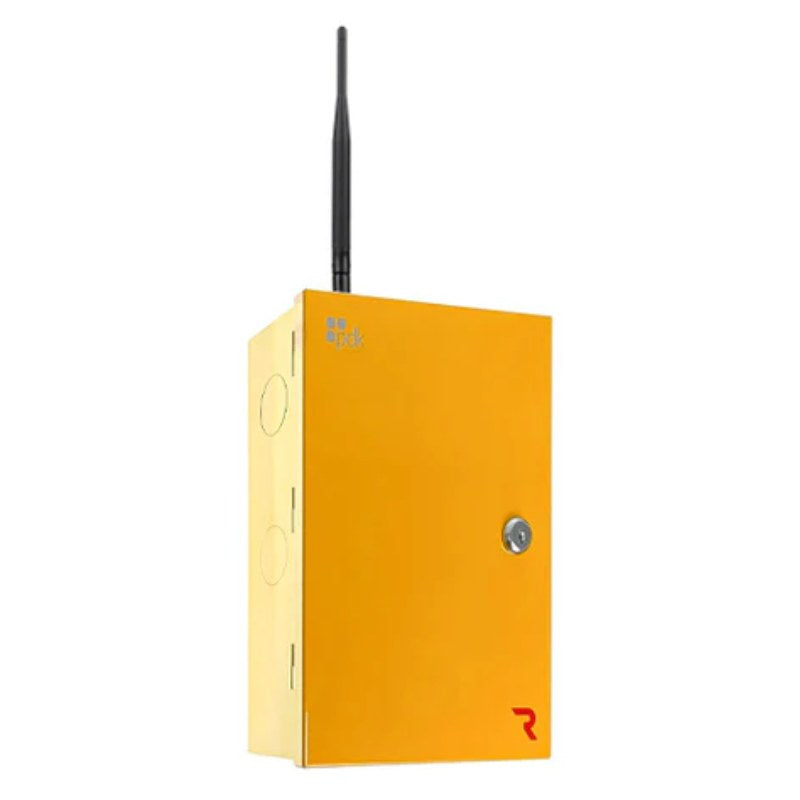

Red CloudNode with Built-in Single-Door Controller with Ethernet + Wireless Connectivity

The PDK-RCNEW Red CloudNode with Built-in Single-Door controller with ethernet and wireless connectivity is the main system panel and the gateway to the PDK.io cloud platform. Each site requires one CloudNode with an Internet connection. The CloudNode then communicates with all local door controllers while storing all data on-site in case of an internet outage. With the PDK.io API, the CloudNode becomes a fully integrated access control solution.

PDK certification may be required to install this product. Contact us for more information.

Product Overview

  • Advanced Security: ProdataKey Red products lead the industry in secure communication protocols. This includes OSDP, mobile, and encrypted credential communication.
  • Power Monitoring: Equipped with an on board power supply, and a fully-supervised power circuit that monitors input, output, battery voltage, and overall controller health.
  • Plug-and-Play Connectivity: All PDK.io devices were designed to be plug-and-play. That means they’re super easy to install right out of the box. It’s easy to add in any io device, no matter how large the job is.
  • Automatic Updates: Experience future-proof access control that’s always secure, and up-to-date features, and security enhancements become available.
  • Multi-Door: In addition to connecting to our cloud platform, the CloudNode doubles as a single door controller. It’s the only device you need for a single door install. Connect to the network and door hardware for a streamlined installation.
  • Cloud Platform: PDK.io provides the most powerful and streamlined access control platform on the market. Experience full configuration and management from any internet-connected device.
  • System Scalability: Whether you need one door or a thousand, the PDK Red CN gives you the flexibility to add more doors anytime, anywhere, on any device.

Key Features

  • Removable screw-down terminals
  • Built-in power supply
  • Industrial-grade 2A Form-C relay
  • Reader input A and input B
  • 12V-24V DC input
  • 14 VDC 2A 28 watt class 2 wall-wort power supply (Input supply to the board)
  • Powers readers and other door hardware directly from the bus
  • Battery not included but a backup battery must be installed to comply with UL 294
  • Conforms to UL 294
  • Dimensions (W x H x D) 10.4375 x 7.625 x 3

Download Product Resources

Download PDK CloudNode quick start guide

Download PDK cheat sheet
