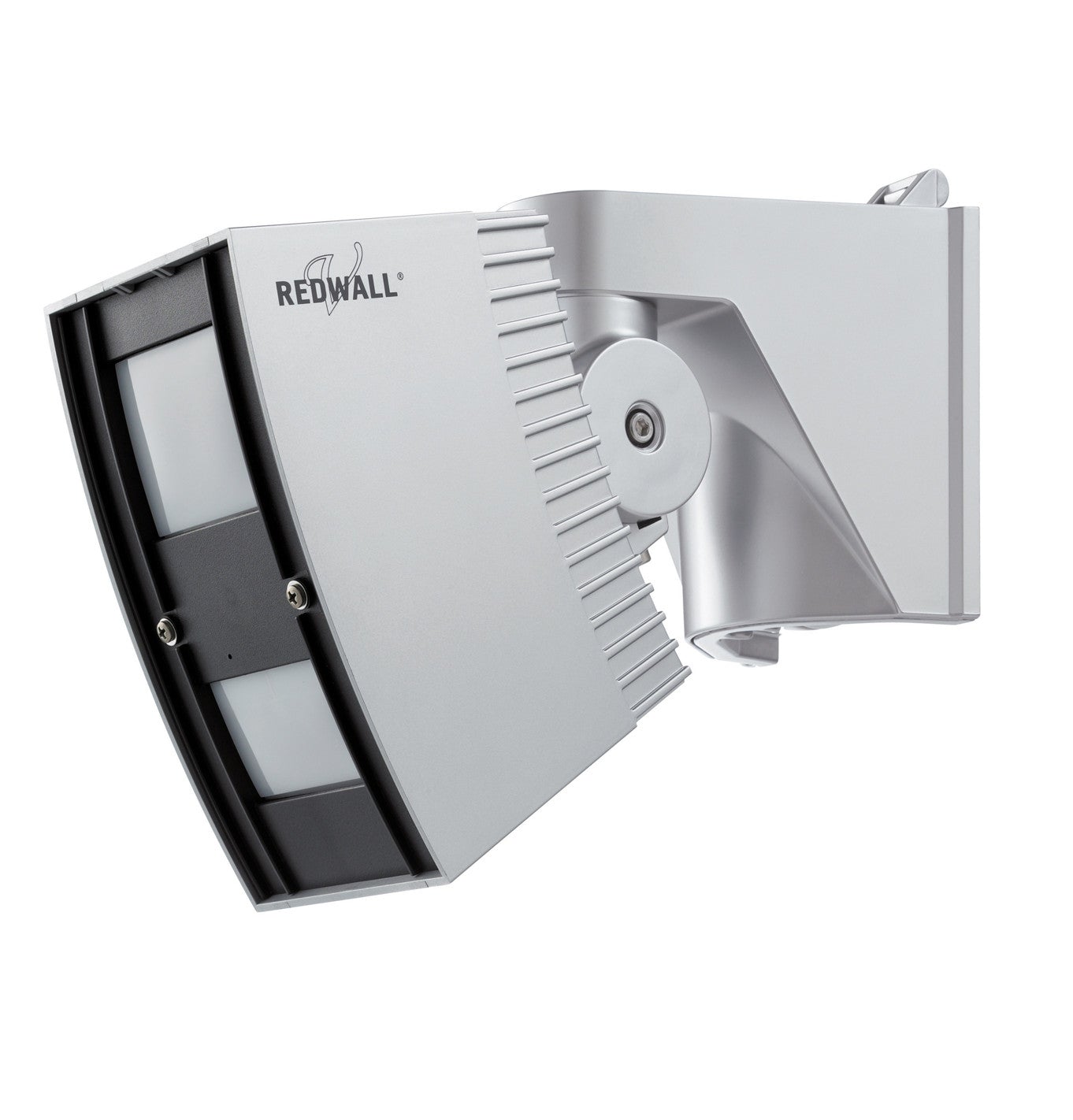

OPTEX SIP-3020 100' X 65' Superior Intelligent PIR detector with Anti-Masking and Rotation

Brand OPTEX
SKU: OPT-SIP-3020

OPTEX SIP-3020 100' X 65' Superior Intelligent PIR detector with Anti-Masking and Rotation

PN / OPT-SIP-3020 *

 **AVF-1 & AWT-3 Required for Proper Installation**



Description:

The SIP-3020 PIR detector is designed to trigger CCTV cameras in small and mid-sized outdoor areas. It has an intelligent detection system that uses data on the ambient environment, such as temperature and illuminance conditions, to automatically adjust the sensitivity. Mechanisms for easy installation enable accurate adjustment of the detection area at setup, which results in more reliable operation. The recommended AVF-1 Area View Finder allows the installer to visually identify the detection area. The SIP-3020 is also equipped with anti-rotation and anti-masking, two features that help detect vandalism or tampering on the unit. These functions provide greater security in operations.



Features:
  • Intelligent PIR detection system
  • Automatic sensitivity management to ambient temperature and light
  • Advanced detection algorithm
  • Three dual pyro-elements with patented Double Conductive Shielding
  • Anti-vandalism functions including anti-masking and anti-rotation function with 3-axis accelerometer

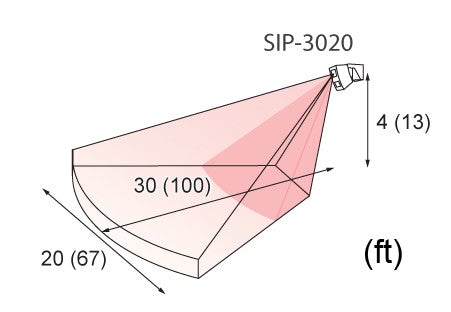

  • 7.6ft. to 13ft. mounting height
  • Independant sensitivity for near and far detection zones
  • Detection logic selector
  • Independant N.C. and N.O. outputs
  • Adjustable alarm interval time
Technology:
Passive Infrared
Wiring:
PoE
Wired
Installation:
Commercial
Government
Industrial
Indoor/Outdoor:
Outdoor
Product Type:
Detector
Zone:
Building
Approach
Perimeter
Power Input:
11 - 16VDC, 22 - 26 VAC (22 - 26VAC with optional heating unit)
Alarm Output:
N.O., N.C. 28VDC 0.2A max.
Current Consumption:
45mA max. at 12V DC, 80mA max. at 24V AC (420mA max. (24VAC) with optional heating unit)
Operation Temperature:
-13° to +140°F (-40° to +140°F with optional SIP-HU heating unit)
y8

100' X 65' Superior Intelligent PIR detector with Anti-Masking and Rotation

A&E Specifications
