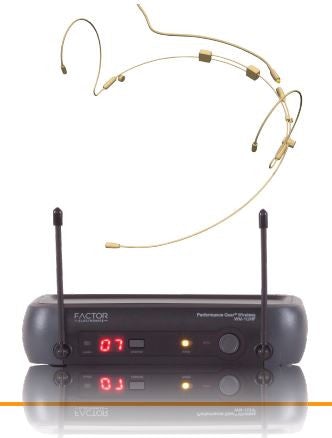

FACTOR WM-1UHF-HS UHF Wireless Headset Microphone System

Call 1-800-888-8101 for pricing
In stock


Single diversity UHF wireless microphone system

Features: Single diversity UHF wireless microphone system 10 Selectable UHF channels Wide frequency miniature beige headset microphone Plus professional lavalier microphone Belt-pack transmitter operates on two inexpensive AA batteries Infrared belt-pack auto sync function Excellent feedback rejection Cardioid pickup pattern Integrated ON/OFF switch 3 Pin balanced XLR output & 1/4” unbalanced output Receiver with VFD display Includes: 6' 1/4” phone cable HSM-09 beige miniature headset mic Black Lavalier mic with clothing clip & wind sock WBP-08 belt-pack transmitter 2 x AA batteries Power supply PVC Carry case.

Specifications: Receiver:
Carrier wave freq range - UHF 600-870MHz
Oscillation Mode – Phase-lock loop controlled
Carrier wave stability - 10PPM
Sensitivity – 100dB @ sinad= 12dB
S/N ratio – 80dB
THD - <0.8% @ 1kHz
Image rejection – 85dB
Spurious rejection – 75dB
Frequency response – 50Hz-16kHz
Working distance 200ft approx
Squelch – Dual-squelch circuit
AF Output impedance – 2.2k ohms
Max output level – 0-400mv bal / 0-200mv unbal
Display type – VFD
Power supply – 0.4A 12 DC Included

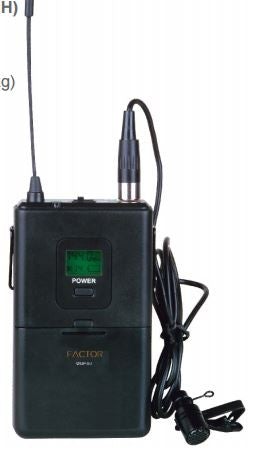

 WBP-08 Belt-pack Transmitter:
Frequency Response – 50Hz- 16kHz
Sensitivity - (-74dB +/- 3dB)
ON/OFF switch – Yes
Channel sync - Infrared
Power – 30mW
Spurious Emission<40dB (with carrier)
Display – LED
Battery voltage 1.5V x 2 AA batteries
Battery life- 6 hours approx
Connector Miniature XLR female

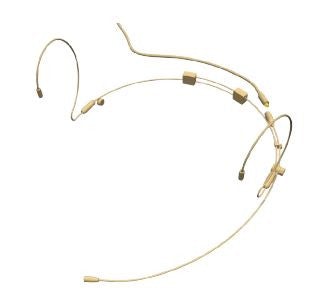

HSM-09 Headset Microphone:
Frequency response 40Hz-20kHz
Pattern – Omni-directional
Sensitivity 7.0mV/Pascal
Noise 24dBA SPL Max SPL 120dB
Weight 0.25oz / 6.5 grams
