LYSORA LS2T-8GT2SFP-HP: 8-Port Industrial Layer 2 Managed PoE+ Switch

Login to see prices
Vendor Lysora
View details

Call: 800-888-8101

Fill Out Customer Application


PN / LYS-LS2T-8GT2SFP-HP  * | Download data sheet

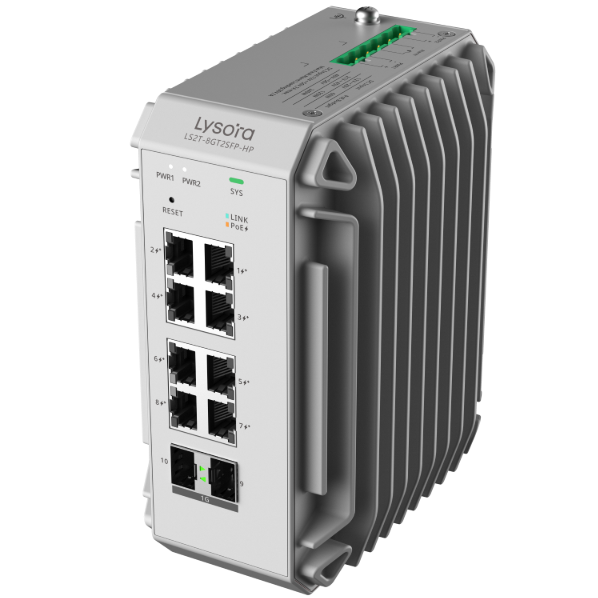

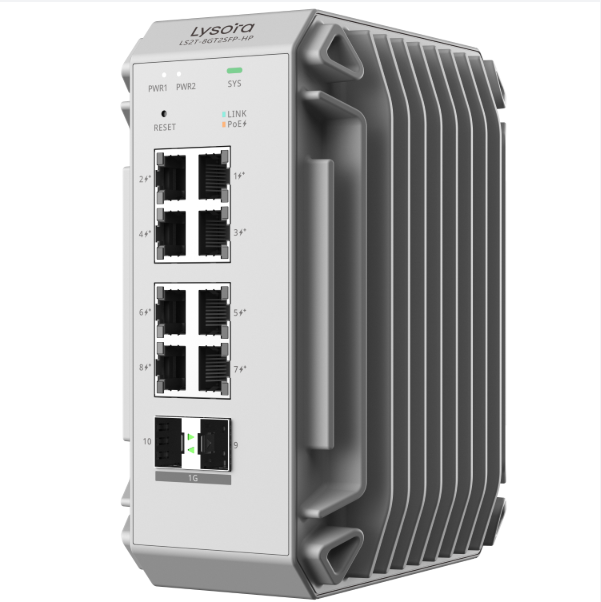

Lysora LS2T-8GT2SFP-HP 8-Port Industrial Layer 2 Managed PoE+ Switch

Rugged High-Power PoE Switching for Industrial Networks

The Lysora LS2T-8GT2SFP-HP is an industrial-grade Layer 2 managed switch designed for surveillance, transportation, manufacturing, wireless, and other demanding network environments. It features eight Gigabit PoE/PoE+ ports, two dedicated Gigabit SFP uplinks, and a maximum 240W PoE power budget.

Its rugged metal enclosure, fanless design, wide DC input range, and extreme-temperature capability provide dependable performance in equipment cabinets and industrial installations. Advanced Layer 2 controls and cloud-based management give administrators the tools needed to monitor, secure, and optimize connected devices.

Key Features

  • 8 Gigabit PoE/PoE+ Ports — Deliver network data and electrical power through a single Ethernet cable.

  • Up to 240W PoE Power Budget — Supports multiple IP cameras, wireless access points, VoIP phones, and other compatible PoE devices.

  • 2 Gigabit SFP Uplink Ports — Provides reliable fiber connectivity for long-distance links and network expansion.

  • Industrial-Grade Construction — Built for dependable operation in harsh commercial and industrial environments.

  • Wide 12–56V DC Input Range — Offers flexible integration with industrial power systems.

  • Extreme-Temperature Operation — Operates down to -40°F (-40°C) and supports higher maximum temperatures when installed with sufficient ventilation.

  • Cloud, App, and Web Management — Configure, monitor, and troubleshoot the switch locally or remotely.

  • Advanced VLAN Support — Supports port-based VLANs, IEEE 802.1Q VLANs, and Voice VLANs.

  • Network Redundancy — Supports STP, RSTP, and MSTP to prevent network loops and improve reliability.

  • Link Aggregation — Supports static aggregation and LACP for increased bandwidth and connection redundancy.

  • Multicast Management — Includes IGMP snooping and filtering for efficient multicast traffic delivery.

  • Quality of Service — Prioritizes critical traffic using 802.1p and DSCP-based classification.

  • Advanced Security Features — Includes 802.1X authentication, DHCP snooping, IP Source Guard, ARP anti-spoofing, port isolation, and storm control.

  • Camera Detection — Helps installers quickly locate and manage connected surveillance cameras.

  • Cloud-Based Auto-Recovery — Helps restore network service following certain connectivity interruptions.

  • Cable Testing — Assists with identifying common Ethernet cabling problems.

  • Fanless Operation — Provides quiet, reliable performance through natural cooling.

  • DIN-Rail or Wall Mounting — Offers flexible installation inside cabinets, enclosures, and equipment areas.

  • NDAA Compliant — Suitable for projects requiring NDAA-compliant networking equipment.

  • 3-Year Warranty — Backed by Lysora’s manufacturer warranty.

Designed for Demanding Installations

The LS2T-8GT2SFP-HP combines high-capacity PoE, fiber uplinks, advanced traffic management, and industrial durability in a compact form factor. Its wide operating-temperature range makes it well suited for factories, warehouses, roadside cabinets, parking facilities, and other locations where standard commercial switches may not be appropriate.

Ideal Applications

  • Industrial IP surveillance systems

  • Manufacturing and warehouse facilities

  • Transportation and traffic-monitoring networks

  • Outdoor and roadside equipment cabinets

  • Parking lots and perimeter-security systems

  • Wireless access-point installations

  • Building automation networks

  • Fiber-connected remote locations

  • Harsh or temperature-variable environments

Technical Specifications

  • PoE Ports: 8 × Gigabit PoE/PoE+

  • Fiber Uplinks: 2 × Gigabit SFP

  • Maximum PoE Power Budget: 240W

  • Switching Capacity: 20 Gbps

  • Forwarding Rate: 14.88 Mpps

  • Packet Buffer: 4.1 Mbit

  • MAC Address Table: 8,000 entries

  • Maximum VLANs: 4,094

  • Jumbo Frame Support: Up to 9,216 bytes

  • Layer 2 Features: IEEE 802.1Q VLAN, Voice VLAN, STP, RSTP, MSTP, LACP, and IGMP snooping

  • Security Features: 802.1X, DHCP snooping, IP-MAC-port binding, ARP anti-spoofing, IP Source Guard, port isolation, and storm control

  • Management: Lysora Cloud, mobile app, web interface, SNMP, Syslog, and RLOG

  • Power Input: 12–56V DC

  • Enclosure Rating: IP40

  • Enclosure: Metal

  • Mounting: DIN rail or wall

  • Cooling: Fanless

  • Operating Temperature: -40°F to 149°F (-40°C to 65°C) in a sealed cabinet; higher maximum temperatures supported with specified forced ventilation

  • Dimensions: 3.35 × 5.20 × 6.50 inches

  • Weight: 3.13 lbs. without packaging

  • Warranty: 3 years

Power Supply Notice: A compatible DC power adapter or power module is required and is not included; it is sold separately. Available PoE output depends on the input voltage and power-supply capacity. Achieving the full 240W PoE budget requires an appropriately rated power source.

The Lysora LS2T-8GT2SFP-HP delivers high-power PoE, fiber connectivity, advanced Layer 2 management, and industrial reliability—making it a strong solution for critical networks operating in challenging environments.
