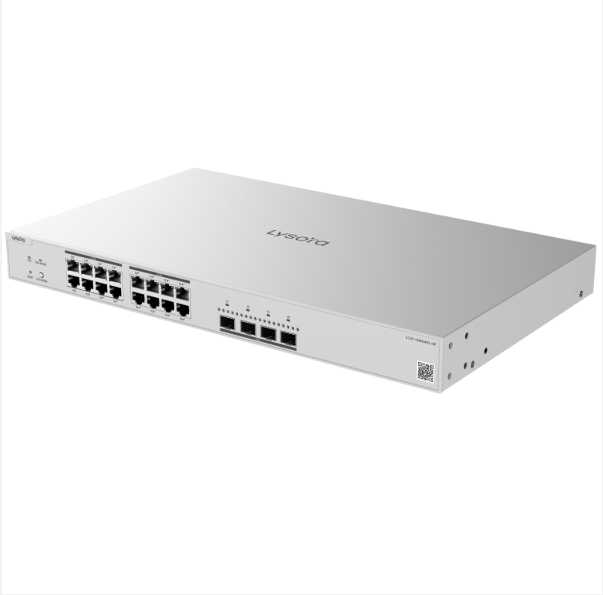

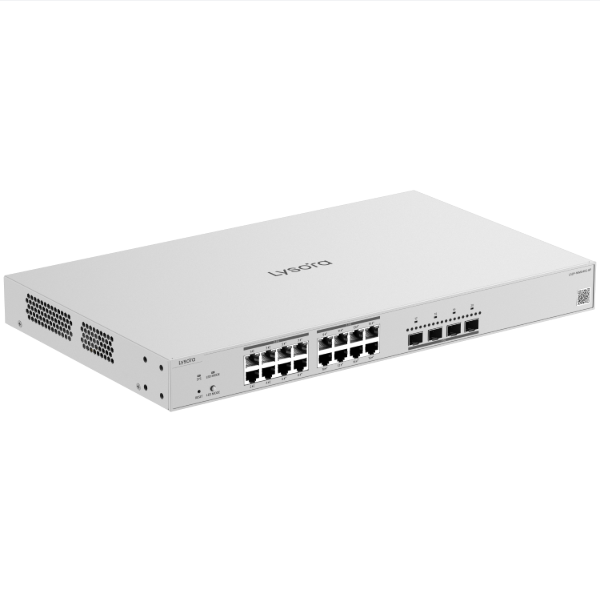

Lysora LS2P-16MG4XS-HP 16-Port 2.5G Layer 2+ Managed PoE++ Switch

Multi-Gigabit PoE Power with High-Speed 10G Fiber Uplinks

The Lysora LS2P-16MG4XS-HP is a high-performance Layer 2+ managed switch designed for bandwidth-intensive surveillance, wireless, and business networks. It features 16 multi-Gigabit 2.5G Ethernet ports, including 12 PoE+ ports and four high-power PoE++ ports, along with four 10G SFP+ uplinks.

A substantial 370W PoE power budget supports high-performance wireless access points, PTZ cameras, and other power-demanding network devices. Advanced traffic management, static routing, network security, and cloud-based administration make this switch an excellent foundation for modern, scalable networks.

Key Features

  • 16 Multi-Gigabit 2.5G Ports — Each RJ45 port supports 10/100/1000 Mbps and 2.5 Gbps Ethernet connections.

  • 12 PoE+ and 4 PoE++ Ports — Provides high-power connectivity for access points, PTZ cameras, and other compatible PoE devices.

  • 370W PoE Power Budget — Delivers centralized power across all 16 Ethernet ports.

  • 4 High-Speed 10G SFP+ Uplinks — Provides high-bandwidth fiber connectivity for network backbones, servers, and switch-to-switch connections.

  • 160 Gbps Switching Capacity — Handles demanding multi-Gigabit traffic with minimal bottlenecks.

  • Layer 2+ Management — Adds IPv4 and IPv6 static routing capabilities to advanced Layer 2 switching.

  • Cloud, App, and Web Management — Configure, monitor, and troubleshoot the switch locally or remotely.

  • PoE Watchdog — Detects an unresponsive powered device and automatically restarts its PoE connection.

  • Camera Detection — Helps installers quickly identify and manage connected surveillance cameras.

  • Advanced VLAN Support — Supports port-based VLANs, IEEE 802.1Q VLANs, and Voice VLANs.

  • Network Redundancy — Supports STP, RSTP, and MSTP to help prevent loops and maintain network availability.

  • Link Aggregation — Supports static aggregation and LACP for greater bandwidth and connection redundancy.

  • Multicast Management — Includes IGMP snooping and filtering for efficient multicast traffic delivery.

  • Quality of Service — Prioritizes critical network traffic using 802.1p and DSCP-based classification.

  • Advanced Security Features — Includes 802.1X authentication, RADIUS, DHCP snooping, IP Source Guard, ARP anti-spoofing, port isolation, and storm control.

  • Cloud-Based Auto-Recovery — Helps restore network services following certain connectivity interruptions.

  • Cable Testing — Assists with identifying common Ethernet cabling problems.

  • 19-Inch Rack-Mountable Design — Installs easily in standard network racks and equipment cabinets.

  • NDAA Compliant — Suitable for projects requiring NDAA-compliant networking equipment.

  • 3-Year Warranty — Backed by Lysora’s manufacturer warranty.

Built for Modern High-Bandwidth Networks

The LS2P-16MG4XS-HP provides more than twice the bandwidth of standard Gigabit Ethernet on every RJ45 port. Its 2.5G connectivity and PoE++ support make it ideal for high-performance wireless access points and advanced surveillance equipment, while four 10G SFP+ uplinks provide the capacity needed to move aggregated traffic across the network.

Ideal Applications

  • High-performance wireless networks

  • Wi-Fi access-point deployments

  • Multi-Gigabit business networks

  • High-resolution IP surveillance systems

  • PoE++ PTZ cameras and powered devices

  • Offices and corporate facilities

  • Schools and educational campuses

  • Hotels and hospitality environments

  • Warehouses and industrial facilities

  • High-bandwidth fiber backbones

Technical Specifications

  • Ethernet Ports: 16 × 10/100/1000/2500BASE-T

  • PoE Configuration: 12 × PoE+ and 4 × PoE++

  • Fiber Uplinks: 4 × 10G SFP+

  • PoE Power Budget: 370W

  • Switching Capacity: 160 Gbps

  • Forwarding Rate: 119.04 Mpps

  • Packet Buffer: 12 Mbit

  • MAC Address Table: 16,000 entries

  • Maximum VLANs: 4,094

  • Static Routing: Up to 64 IPv4 and 64 IPv6 static routes

  • Jumbo Frame Support: Up to 9,216 bytes

  • Layer 2 Features: IEEE 802.1Q VLAN, Voice VLAN, STP, RSTP, MSTP, LACP, and IGMP snooping

  • Security Features: 802.1X, RADIUS, DHCP snooping, IP-MAC-port binding, ARP anti-spoofing, IP Source Guard, port isolation, and storm control

  • Management: Lysora Cloud, mobile app, web interface, SNMP, Syslog, and RLOG

  • Maximum Power Consumption: 460W with a full PoE load

  • Enclosure: Metal

  • Mounting: 19-inch rack or desktop

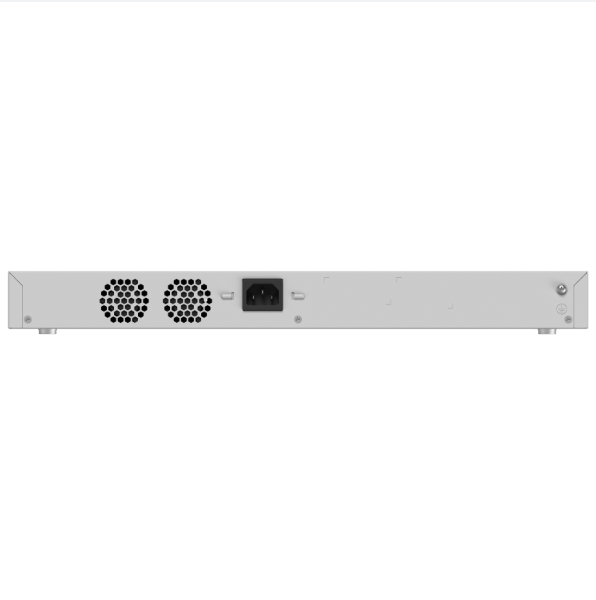

  • Cooling: Two fixed fans

  • Operating Temperature: 32°F to 122°F (0°C to 50°C)

  • Dimensions: 17.32 × 10.53 × 1.72 inches

  • Weight: 7.94 lbs. without packaging

  • Warranty: 3 years

The Lysora LS2P-16MG4XS-HP combines 2.5G multi-Gigabit connectivity, high-power PoE++, four 10G fiber uplinks, Layer 2+ routing, and convenient cloud management—making it a powerful solution for next-generation surveillance and wireless networks.
