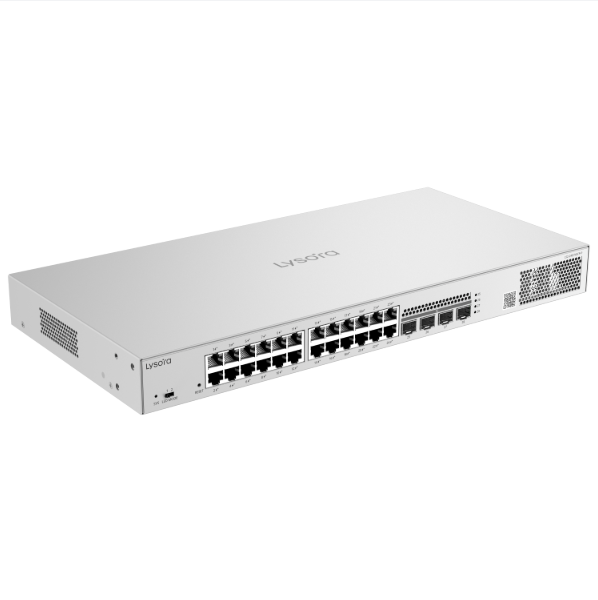

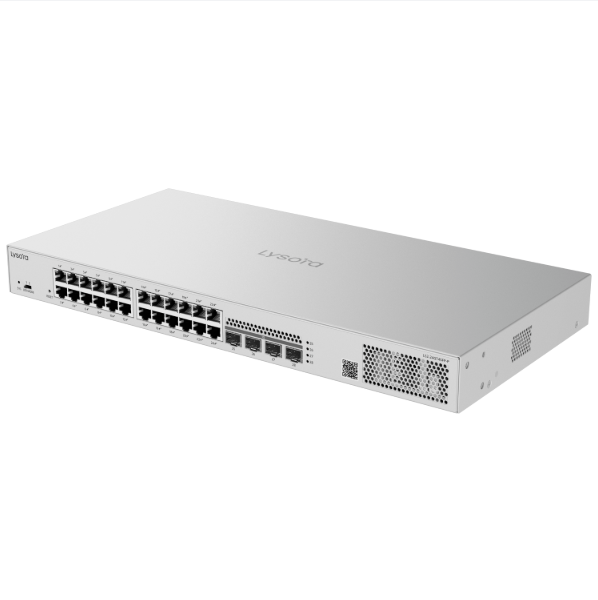

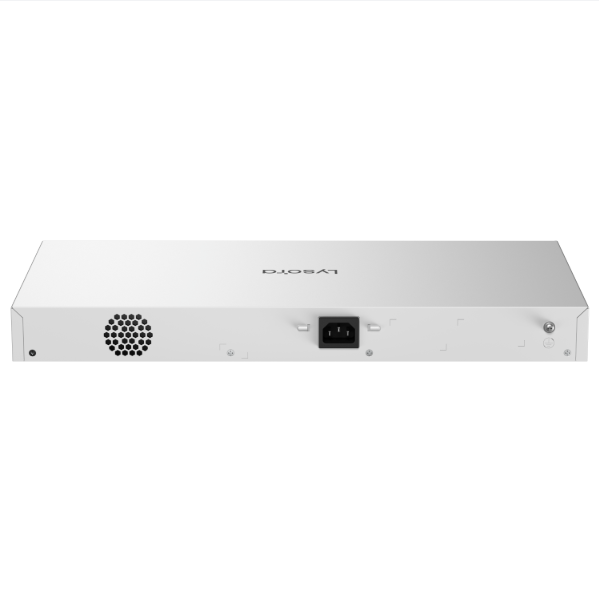

Lysora LS2-24GT4SFP-P 24-Port Layer 2 Managed PoE+ Switch

High-Density PoE Power with Advanced Layer 2 Management

The Lysora LS2-24GT4SFP-P is a high-performance Layer 2 managed switch designed for professional surveillance, wireless, VoIP, and business-network installations. It features 24 Gigabit PoE/PoE+ ports, four dedicated Gigabit SFP uplinks, and a substantial 370W PoE power budget for supporting large numbers of connected devices.

Advanced Layer 2 features, intelligent PoE management, and cloud-based remote access make the LS2-24GT4SFP-P a powerful foundation for scalable commercial networks. Its durable, rack-mountable metal enclosure is ideal for equipment rooms, network cabinets, and centralized security installations.

Key Features

  • 24 Gigabit PoE/PoE+ Ports — Transmit network data and electrical power through a single Ethernet cable.

  • 370W PoE Power Budget — Provides centralized power for IP cameras, wireless access points, VoIP phones, and other compatible devices.

  • 4 Gigabit SFP Uplink Ports — Supports reliable fiber connectivity, long-distance network expansion, and high-capacity uplinks.

  • Layer 2 Managed Switching — Provides advanced control over traffic, connected devices, VLANs, redundancy, and network performance.

  • Cloud, App, and Web Management — Configure, monitor, and troubleshoot the switch locally or remotely.

  • PoE Watchdog — Detects an unresponsive powered device and automatically restarts its PoE connection.

  • Camera Detection — Helps installers quickly locate and manage connected surveillance cameras.

  • Advanced VLAN Support — Supports port-based VLANs, IEEE 802.1Q VLANs, and Voice VLANs.

  • Network Redundancy — Supports STP, RSTP, and MSTP to help prevent network loops and improve reliability.

  • Link Aggregation — Supports static aggregation and LACP for combining connections and increasing uplink capacity.

  • Multicast Management — Includes IGMP snooping and filtering for efficient delivery of multicast traffic.

  • Quality of Service — Prioritizes important network traffic using 802.1p and DSCP-based classification.

  • Advanced Security Features — Includes 802.1X authentication, DHCP snooping, IP Source Guard, ARP anti-spoofing, port isolation, and storm control.

  • Cable Testing — Helps locate common Ethernet cabling problems during installation and troubleshooting.

  • Cloud-Based Auto-Recovery — Helps restore network operation following certain service interruptions.

  • Intelligent Fan Control — Automatically adjusts fan speed according to operating requirements.

  • 19-Inch Rack-Mountable Design — Installs easily in standard network racks and cabinets.

  • NDAA Compliant — Suitable for projects requiring NDAA-compliant networking equipment.

  • 3-Year Warranty — Backed by Lysora’s manufacturer warranty.

Built for Large PoE Networks

With 24 powered Gigabit ports and a 370W PoE budget, the LS2-24GT4SFP-P is designed for installations requiring dependable connectivity across numerous devices. Its four SFP uplinks provide flexible fiber connectivity, while Layer 2 management features give administrators greater control over traffic, security, redundancy, and network segmentation.

Ideal Applications

  • Medium and large IP surveillance systems

  • Commercial wireless networks

  • VoIP phone systems

  • Offices and corporate facilities

  • Retail and hospitality environments

  • Schools and educational facilities

  • Warehouses and industrial buildings

  • Multi-floor and multi-building networks

  • Fiber-connected network expansion

  • Centralized equipment rooms

Technical Specifications

  • PoE Ports: 24 × Gigabit PoE/PoE+

  • Fiber Uplinks: 4 × Gigabit SFP

  • PoE Power Budget: 370W

  • Switching Capacity: 56 Gbps

  • Forwarding Rate: 41.66 Mpps

  • Packet Buffer: 4.1 Mbit

  • MAC Address Table: 8,000 entries

  • Maximum VLANs: 4,094

  • Jumbo Frame Support: Up to 9,216 bytes

  • Layer 2 Features: IEEE 802.1Q VLAN, Voice VLAN, STP, RSTP, MSTP, LACP, and IGMP snooping

  • Security Features: 802.1X, DHCP snooping, IP-MAC-port binding, ARP anti-spoofing, IP Source Guard, port isolation, and storm control

  • Management: Lysora Cloud, mobile app, web interface, SNMP, Syslog, and RLOG

  • Maximum Power Consumption: 443W with a full PoE load

  • Enclosure: Metal

  • Mounting: 19-inch rack or desktop

  • Cooling: Single fan with intelligent speed adjustment

  • Operating Temperature: 32°F to 122°F (0°C to 50°C)

  • Dimensions: 17.32 × 8.46 × 1.73 inches

  • Weight: 6.61 lbs. without packaging

  • Warranty: 3 years

The Lysora LS2-24GT4SFP-P combines high-density PoE power, four fiber uplinks, advanced Layer 2 management, and convenient cloud access—making it an excellent solution for scalable surveillance and business networks.
