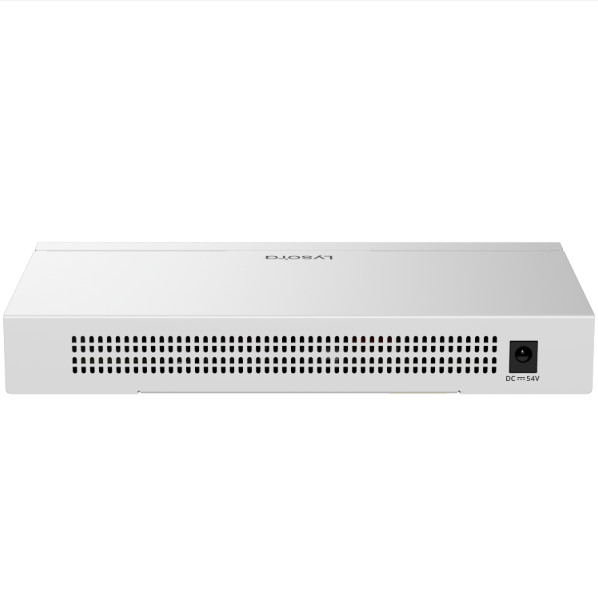

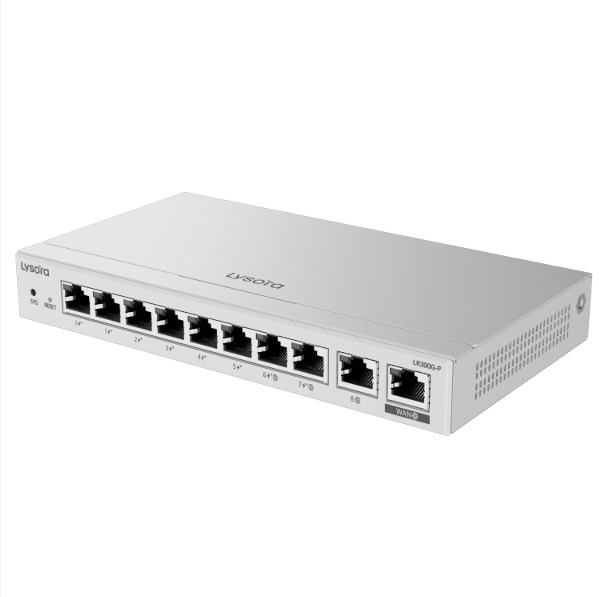

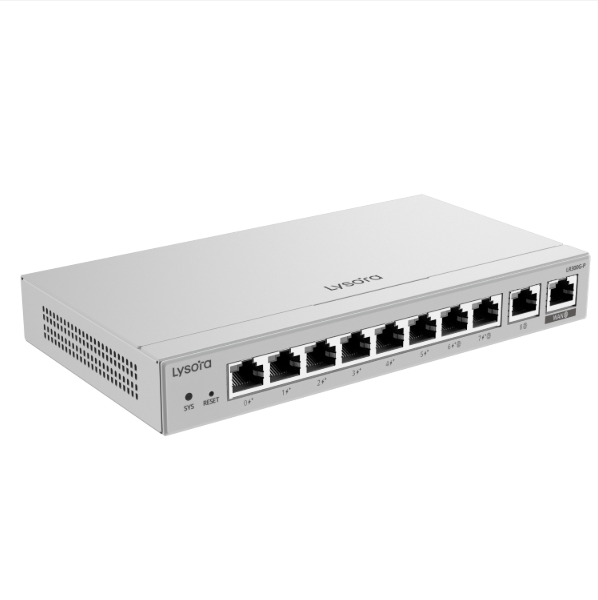

LYSORA LR300G-P: 10-Port Gigabit Cloud-Managed PoE+ Router

Login to see prices
Vendor Lysora
In stock
View details

Call: 800-888-8101

Fill Out Customer Application


PN / LYS-LR300G-P * | Download data sheet

Lysora LR300G-P 10-Port Gigabit Cloud-Managed PoE+ Router

High-Performance Routing, PoE Power, and Centralized Network Management

The Lysora LR300G-P is a powerful cloud-managed Gigabit router designed for medium-sized businesses, offices, retail locations, hospitality environments, and professional wireless networks. It combines advanced routing, integrated access-point management, and eight PoE/PoE+ ports in one compact device.

With 1.5 Gbps routing throughput, support for up to four WAN connections, and a 110W PoE power budget, the LR300G-P provides the performance and flexibility needed to manage demanding business networks. Cloud, mobile app, and web-based management make configuration, monitoring, and troubleshooting convenient from virtually anywhere.

Key Features

  • 10 Gigabit Ethernet Ports — Includes six dedicated LAN ports, one dedicated WAN port, and three configurable LAN/WAN ports.

  • 8 PoE/PoE+ Ports — Powers compatible wireless access points, IP cameras, VoIP phones, and other network devices.

  • 110W PoE Power Budget — Provides centralized power for multiple PoE devices without requiring separate adapters.

  • Up to 4 WAN Connections — Supports multi-WAN configurations for load balancing and improved internet availability.

  • 1.5 Gbps Routing Throughput — Delivers fast network performance for bandwidth-intensive business applications.

  • Supports 300+ Concurrent Users — Designed for medium-sized commercial and multi-user environments.

  • Cloud, App, and Web Management — Configure, monitor, restart, diagnose, and update the router locally or remotely.

  • Integrated AP Management — Centrally manage compatible wireless access points, clients, RF settings, roaming, mesh networks, and SSIDs.

  • Routing and AC Operating Modes — Supports up to 150 access points in Routing Mode or up to 500 access points in AC Mode.

  • Multi-WAN Load Balancing — Distributes traffic across multiple internet connections for improved performance and reliability.

  • SD-WAN Support — Simplifies secure connectivity and management across multiple business locations.

  • Comprehensive VPN Support — Includes IPsec, WireGuard, OpenVPN, L2TP, L2TP over IPsec, and PPTP options.

  • Guest and Captive Portal Authentication — Supports voucher, account, SMS, QR-code, one-click, and custom cloud portal authentication.

  • Advanced Routing Protocols — Supports static routing, policy-based routing, URL-based routing, RIP, OSPF, and BGP.

  • Network Security Controls — Includes access-control lists, MAC filtering, IP-MAC binding, security zones, and local attack defense.

  • VLAN Support — Supports up to 64 VLANs across the LAN interfaces for network segmentation and organization.

  • User and Application Management — Provides application control, flow control, traffic auditing, and user-behavior management.

  • Fanless Metal Design — Delivers quiet and reliable operation in a durable desktop enclosure.

  • NDAA Compliant — Suitable for projects requiring NDAA-compliant networking equipment.

  • 3-Year Warranty — Backed by Lysora’s manufacturer warranty.

Router, PoE Switch, and Wi-Fi Controller in One

The LR300G-P combines several essential network functions into a single compact device. Its integrated PoE ports can power compatible access points and other connected equipment, while centralized AP management gives administrators control over wireless settings, roaming, mesh networking, client access, and guest authentication.

Ideal Applications

  • Medium-sized businesses and offices

  • Retail stores and restaurants

  • Hotels and hospitality environments

  • Schools and training facilities

  • Multi-location businesses

  • Managed wireless networks

  • Guest and captive portal Wi-Fi

  • IP surveillance and VoIP installations

  • Networks requiring multi-WAN connectivity

  • Branch-office and SD-WAN deployments

Technical Specifications

  • Ethernet Ports: 10 × 10/100/1000BASE-T

  • Port Configuration: 6 × LAN, 1 × WAN, and 3 × LAN/WAN

  • PoE Ports: 8 × PoE/PoE+

  • PoE Power Budget: 110W

  • Maximum WAN Connections: 4

  • Routing Throughput: 1.5 Gbps

  • Maximum Concurrent Sessions: 100,000

  • Recommended Concurrent Users: 300+

  • AP Capacity: Up to 150 APs in Routing Mode or 500 APs in AC Mode

  • Maximum SSIDs: 8

  • VLAN Support: Up to 64 VLANs across LAN interfaces

  • Processor: Dual-core, 1.35 GHz per core

  • Memory: 512 MB RAM and 256 MB flash

  • VPN Support: IPsec, WireGuard, OpenVPN, L2TP, L2TP over IPsec, and PPTP

  • SD-WAN: Supported

  • IPv4/IPv6: Supported

  • Management: Lysora Cloud, mobile app, and web interface

  • Maximum Power Consumption: 119W with a full PoE load

  • Enclosure: Metal

  • Cooling: Fanless

  • Mounting: Desktop

  • Operating Temperature: 14°F to 122°F (-10°C to 50°C)

  • Dimensions: 7.95 × 4.25 × 1.10 inches

  • Weight: 1.21 lbs. without packaging

  • Warranty: 3 years

The Lysora LR300G-P combines high-speed routing, multi-WAN flexibility, PoE power, advanced security, and centralized Wi-Fi management—making it a complete networking solution for growing businesses and professional installations.
