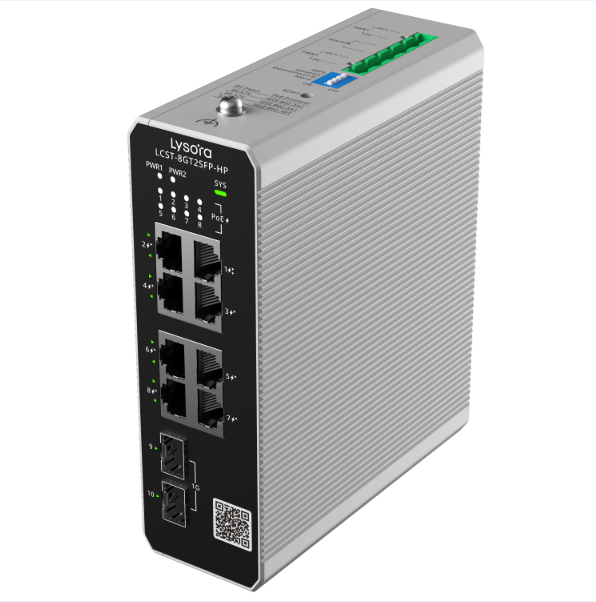

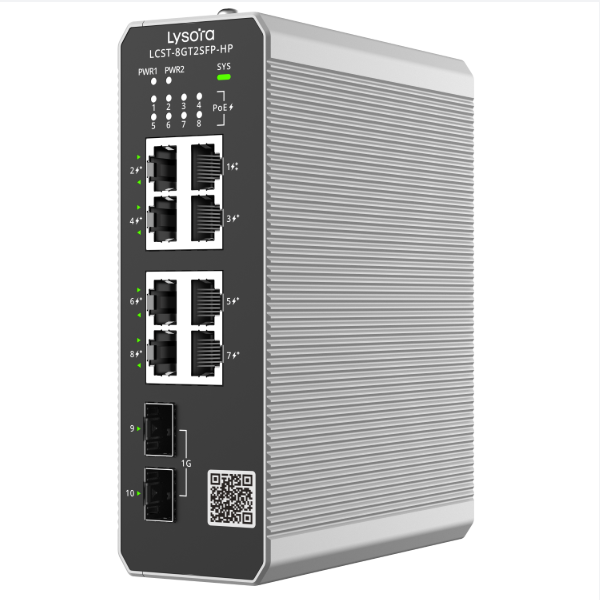

Lysora LCST-8GT2SFP-HP 8-Port Industrial Cloud-Managed PoE++ Switch

Rugged High-Power PoE Switching for Demanding Environments

The Lysora LCST-8GT2SFP-HP is an industrial-grade, cloud-managed Gigabit PoE switch built for surveillance, wireless networking, transportation, manufacturing, and other demanding installations. It features eight Gigabit PoE ports, including seven PoE+ ports and one high-power PoE++ port, along with two dedicated Gigabit SFP uplink ports for reliable fiber connectivity.

A rugged metal enclosure, fanless design, DIN-rail mounting, and an extended operating-temperature range make this switch ideal for harsh environments. Cloud, mobile app, and web-based management provide convenient access to configuration, monitoring, and troubleshooting from virtually anywhere.

Key Features

  • 8 Gigabit PoE Ports — Includes seven PoE+ ports and one PoE++ port for high-power devices.

  • Adjustable High-Capacity PoE Budget — Provides a default 228W PoE budget that can be adjusted up to 300W through the web interface.

  • 2 Gigabit SFP Uplink Ports — Supports reliable long-distance fiber connections and network expansion.

  • Industrial Rugged Design — Engineered for dependable operation in demanding commercial and industrial environments.

  • Extreme Temperature Operation — Operates in temperatures ranging from -40°F to 167°F (-40°C to 75°C).

  • Cloud, App, and Web Management — Configure and monitor the switch locally or remotely through Lysora’s management platforms.

  • PoE Watchdog — Detects an unresponsive powered device and automatically restarts its PoE connection.

  • Camera Detection — Helps installers quickly identify and manage connected surveillance cameras.

  • ERPS Ring Protection — Supports fast network recovery with Layer 2 traffic convergence as low as 50 milliseconds.

  • VLAN and Port Isolation — Separates network traffic to improve organization, performance, and security.

  • Network Security Features — Includes DHCP snooping, storm control, CPU protection, and static MAC address support.

  • Cable Testing — Helps identify common Ethernet cabling problems during installation and troubleshooting.

  • Fanless Operation — Provides quiet, reliable performance through natural cooling.

  • DIN-Rail or Wall Mounting — Offers flexible installation inside cabinets, enclosures, and equipment areas.

  • NDAA Compliant — Suitable for installations requiring NDAA-compliant networking equipment.

  • 3-Year Warranty — Backed by Lysora’s manufacturer warranty.

Built for Industrial and High-Power Applications

The LCST-8GT2SFP-HP is designed for installations that require dependable PoE delivery, fiber uplinks, and continuous operation under challenging environmental conditions. Its PoE++ capability supports higher-powered network devices, while ERPS ring protection helps maintain network availability in mission-critical applications.

Ideal Applications

  • Industrial IP surveillance systems

  • High-power PTZ cameras

  • Outdoor equipment cabinets

  • Manufacturing and warehouse facilities

  • Transportation and traffic-monitoring networks

  • Wireless access points and point-to-point equipment

  • Parking lots and perimeter-security systems

  • Fiber-connected network expansion

  • Harsh or temperature-variable environments

Technical Specifications

  • PoE Ports: 8 × Gigabit RJ45

  • PoE Configuration: 7 × PoE+ and 1 × PoE++

  • Fiber Uplinks: 2 × Gigabit SFP

  • PoE Power Budget: 228W default; adjustable up to 300W

  • Switching Capacity: 20 Gbps

  • Forwarding Rate: 14.8 Mpps

  • Packet Buffer: 4.1 Mbit

  • Management: Lysora Cloud, mobile app, and web interface

  • Ring Protection: ERPS with up to 50 devices per ring

  • Layer 2 Convergence: As low as 50 milliseconds

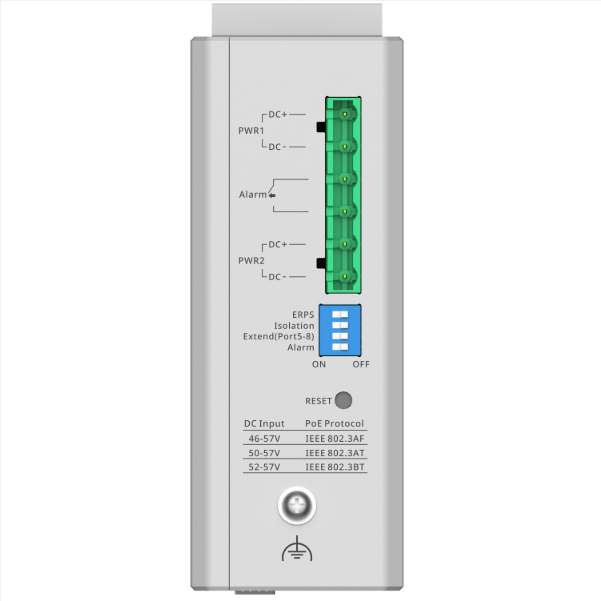

  • Power Input: 46–57V DC

  • Enclosure Rating: IP40

  • Mounting: DIN rail or wall

  • Enclosure: Metal

  • Cooling: Fanless

  • Operating Temperature: -40°F to 167°F (-40°C to 75°C)

  • Dimensions: 1.97 × 6.10 × 5.12 inches

  • Weight: 1.74 lbs. without packaging

  • Warranty: 3 years

Power Supply Notice: A compatible DC power adapter or power module is required and is not included with the switch; it is sold separately.

The Lysora LCST-8GT2SFP-HP combines high-power PoE, dual fiber uplinks, industrial durability, and intelligent cloud management—making it an excellent solution for critical networks operating in demanding environments.
