PN / LYS-LCS-8GS-P * | Download data sheet

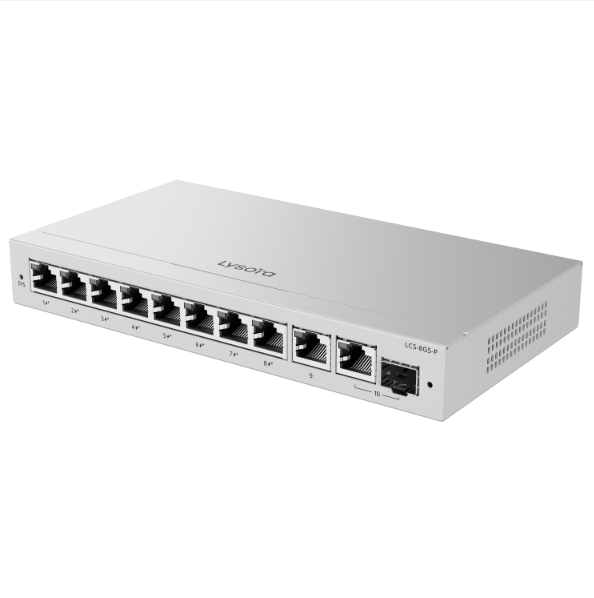

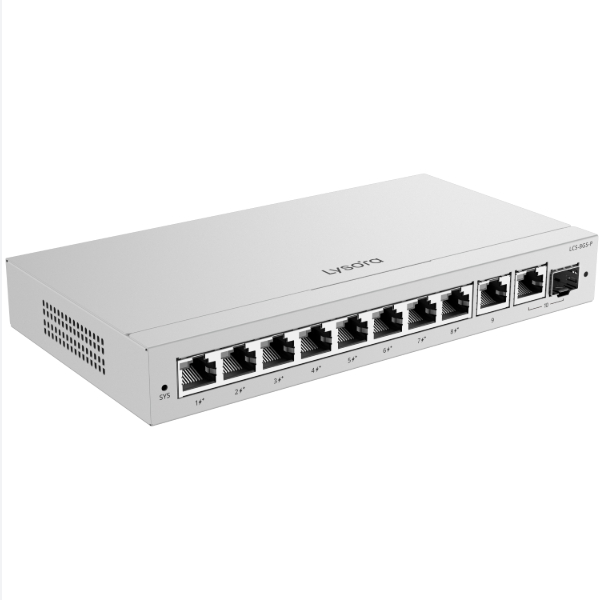

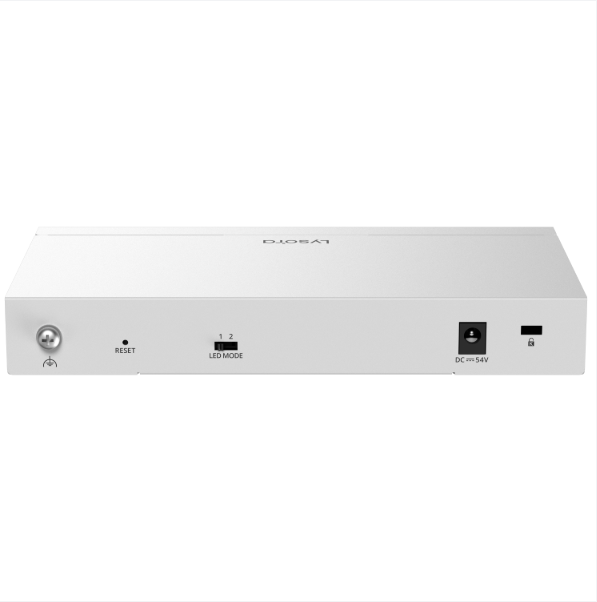

Lysora LCS-8GS-P 8-Port Cloud-Managed PoE+ Switch
Powerful PoE Connectivity with Flexible Gigabit Uplinks
The Lysora LCS-8GS-P is a compact, cloud-managed Gigabit PoE switch designed for IP surveillance, wireless networking, VoIP, and small-business applications. It features eight Gigabit PoE/PoE+ ports, two Gigabit uplink connections, and a generous 120W total PoE power budget for powering cameras, access points, phones, and other compatible devices.
Cloud, mobile app, and web-based management provide convenient access to network configuration, monitoring, and troubleshooting. Intelligent features—including PoE watchdog, camera detection, VLAN support, and port isolation—make the LCS-8GS-P especially well suited for professional security installations.
Key Features
-
8 Gigabit PoE/PoE+ Ports — Deliver network data and electrical power through a single Ethernet cable.
-
120W PoE Power Budget — Provides reliable power for multiple IP cameras, wireless access points, VoIP phones, and other PoE devices.
-
Flexible Gigabit Uplinks — Includes two Gigabit uplink connections, with a combo RJ45/SFP option for copper or fiber connectivity.
-
Cloud, App, and Web Management — Configure, monitor, and manage the switch locally or remotely.
-
PoE Watchdog — Detects an unresponsive powered device and automatically restarts its PoE connection.
-
Camera Detection — Helps installers quickly identify and manage connected surveillance cameras.
-
Self-Organizing Network Support — Simplifies device discovery, network deployment, and ongoing management.
-
VLAN and Port Isolation — Separate network traffic to improve organization, performance, and security.
-
Traffic Management Tools — Supports flow control, port-based rate limiting, port mirroring, and storm control.
-
Cable Testing — Assists with locating common Ethernet cabling problems during installation and troubleshooting.
-
Fanless Operation — Provides quiet, dependable performance through natural cooling.
-
Compact Metal Enclosure — Designed for convenient desktop or wall-mounted installation.
-
NDAA Compliant — Suitable for installations requiring NDAA-compliant networking equipment.
-
3-Year Warranty — Backed by Lysora’s manufacturer warranty.
Designed for Professional PoE Installations
The LCS-8GS-P combines power, management, and installation flexibility in a compact footprint. Its 120W PoE budget supports demanding security and networking applications, while its fanless design makes it an excellent choice for offices, retail locations, equipment rooms, and other noise-sensitive environments.
Ideal Applications
-
IP surveillance systems
-
Wireless access points
-
VoIP phone installations
-
Retail and small-business networks
-
Offices and commercial facilities
-
Residential networking
-
Desktop and wall-mounted installations
-
Copper or fiber network expansion
Technical Specifications
-
PoE Ports: 8 × Gigabit PoE/PoE+
-
Total RJ45 Ports: 10
-
Optical Connectivity: 1 × Gigabit SFP through a combo port
-
PoE Power Budget: 120W
-
Switching Capacity: 20 Gbps
-
Forwarding Rate: 14.8 Mpps
-
Management: Lysora Cloud, mobile app, and web interface
-
Network Features: IEEE 802.1Q VLAN, port isolation, DHCP snooping, port mirroring, flow control, rate limiting, and storm control
-
Mounting: Desktop or wall
-
Enclosure: Metal
-
Cooling: Fanless
-
Maximum Power Consumption: 130W with a full PoE load
-
Operating Temperature: 32°F to 104°F (0°C to 40°C)
-
Dimensions: 7.95 × 4.25 × 1.10 inches
-
Weight: 1.21 lbs. without packaging
-
Warranty: 3 years
The Lysora LCS-8GS-P delivers dependable PoE power, intelligent management, and flexible Gigabit uplinks in a compact design—making it an excellent solution for small and medium-sized surveillance and business networks.
