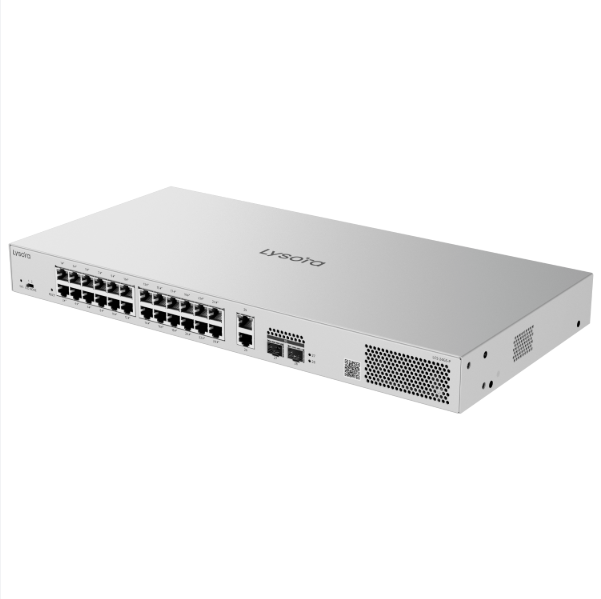

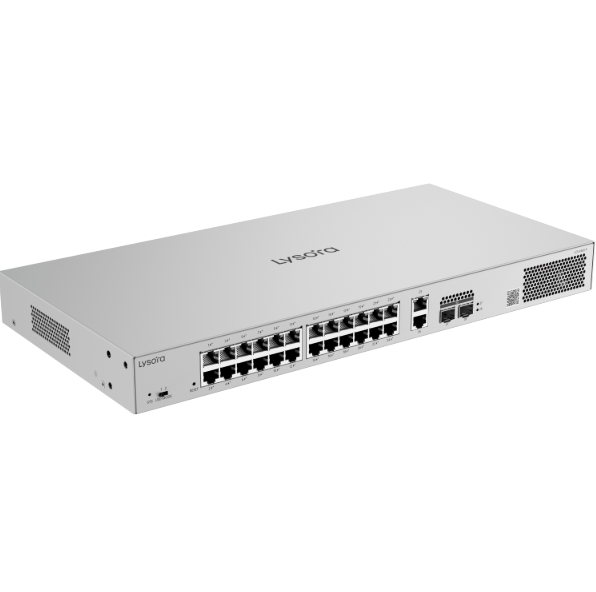

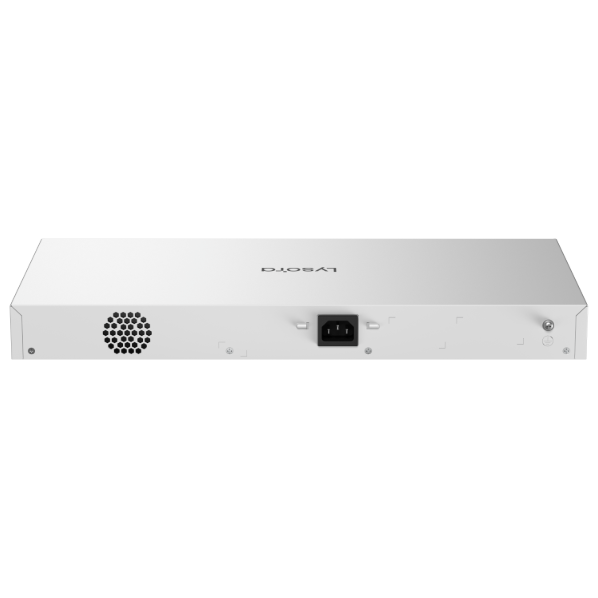

Lysora LCS-24GS-P 28-Port Cloud-Managed PoE+ Switch

High-Capacity PoE Power and Cloud Management for Professional Networks

The Lysora LCS-24GS-P is a cloud-managed Gigabit PoE switch designed for larger surveillance, access control, wireless networking and commercial low-voltage installations.

It features 24 Gigabit PoE/PoE+ ports, two Gigabit RJ45 uplink ports and two Gigabit SFP ports for flexible copper and fiber connectivity. A powerful 370W PoE budget provides dependable power for cameras, wireless access points, VoIP phones and other compatible network devices.

Cloud, mobile app and web-based management allow installers to configure, monitor and maintain the network locally or remotely.

Key Features

• 24 Gigabit PoE/PoE+ ports
• Two Gigabit RJ45 uplink ports
• Two Gigabit SFP uplink ports
• 370W total PoE power budget
• 56 Gbps switching capacity
• 41.6 Mpps forwarding rate
• Automatic PoE watchdog
• Camera detection
• Cloud, mobile app and web management
• Self-organizing network support
• IEEE 802.1Q VLAN support
• Up to 16 VLANs
• Port isolation
• DHCP snooping
• Broadcast, multicast and unknown-unicast storm control
• Interface-based traffic rate limiting
• Port mirroring
• Cable testing
• Energy-Efficient Ethernet
• 10,000-byte jumbo frames
• Rack-mount brackets included
• Metal housing
• 200,000-hour MTBF
• Three-year warranty
• NDAA compliant

Built for Larger Surveillance and Low-Voltage Systems

The LCS-24GS-P combines high port density with a substantial PoE power budget, making it well suited for installations requiring numerous powered devices.

Its dedicated copper and fiber uplink ports simplify connections to recorders, routers, additional switches and network backbones. The integrated PoE watchdog can automatically monitor and restart unresponsive powered devices, helping improve system reliability and reduce service calls.

Ideal Applications

• Large IP surveillance systems
• Access-control installations
• Wireless access-point deployments
• VoIP phone systems
• Offices and commercial buildings
• Retail chains
• Warehouses and distribution facilities
• Schools and campuses
• Hospitality properties
• Multi-device business networks

Technical Specifications

• PoE ports: 24 × 10/100/1000BASE-T PoE/PoE+
• RJ45 uplink ports: Two Gigabit Ethernet
• SFP uplink ports: Two Gigabit SFP
• Total ports: 26 RJ45 and two SFP
• PoE budget: 370W
• Switching capacity: 56 Gbps
• Forwarding rate: 41.6 Mpps
• Packet buffer: 4.1 Mbit
• MAC address table: 8,000 entries
• Maximum VLANs: 16
• Maximum power consumption: 25W without PoE load; 400W at full PoE load
• Power input: 100–240V AC, 50/60 Hz
• Cooling: Fixed fan with front-to-rear airflow
• Operating temperature: 32°F to 104°F
• Surge protection: ±4 kV on service ports; ±6 kV on the power connector
• Dimensions: 17.32 × 8.46 × 1.73 inches
• Weight: 6.26 pounds
• Mounting: Rack mount
• Rack-mount brackets: Included
• Warranty: Three years
• Certifications: CE and FCC
• Compliance: NDAA compliant

Specifications are based on Lysora’s official LCS-24GS-P product information.
