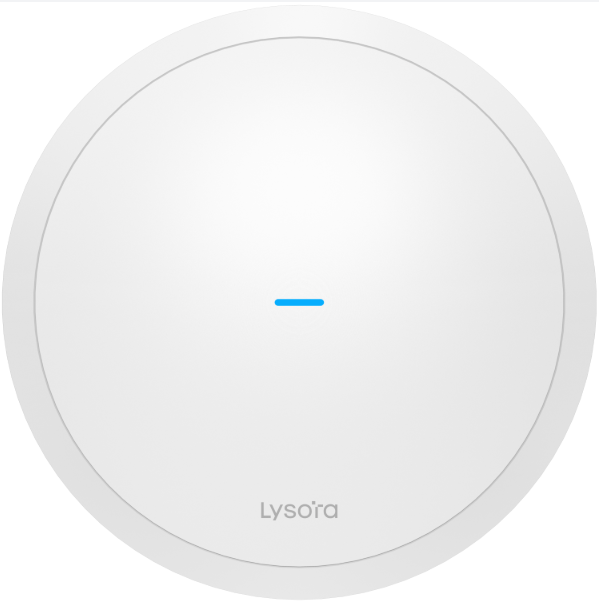

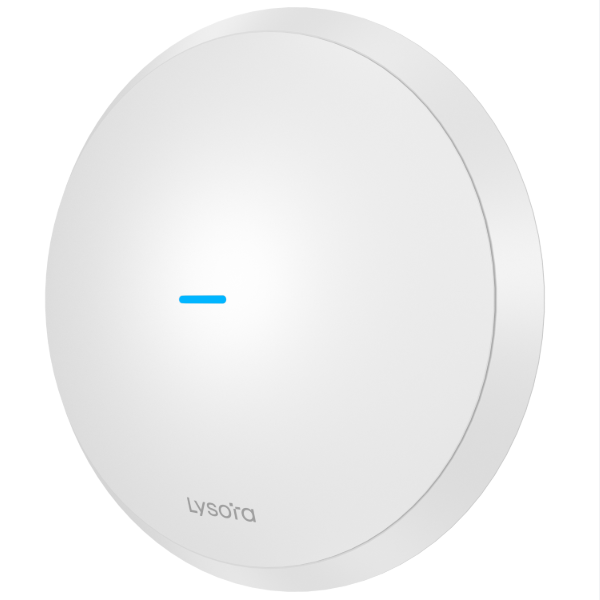

Lysora L7 Lite Wi-Fi 7 BE3600 Dual-Band Access Point

High-Speed Wi-Fi 7 Coverage for Modern Indoor Networks

The Lysora L7 Lite is a dual-band Wi-Fi 7 access point designed to deliver fast, dependable wireless coverage throughout offices, retail spaces, hospitality properties and other indoor commercial environments.

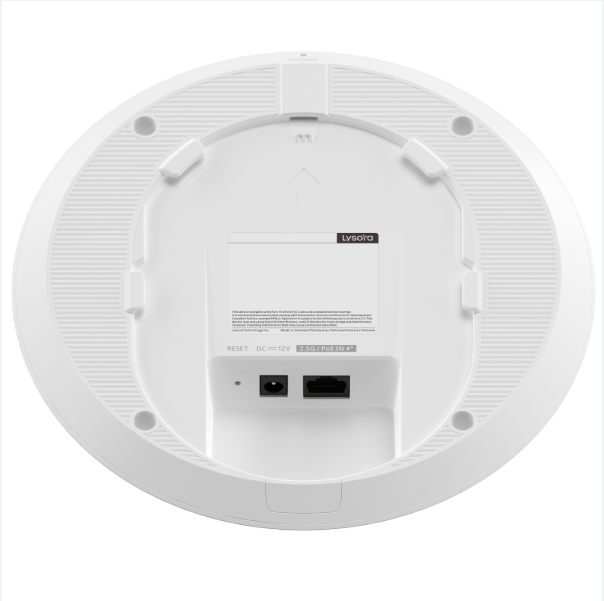

With four spatial streams, combined wireless speeds of approximately 3.6 Gbps and a 2.5GbE uplink, the L7 Lite provides the performance and capacity needed for modern wireless devices and bandwidth-intensive applications. Its low-profile design supports ceiling or wall installation, while PoE+ and optional 12V DC power provide flexible deployment options.

Key Features

• Dual-band Wi-Fi 7 connectivity
• Up to 688 Mbps on 2.4 GHz
• Up to 2,882 Mbps on 5 GHz
• Four spatial streams
• 2×2 MU-MIMO on both frequency bands
• One 2.5GbE Ethernet port
• PoE+ or optional 12V DC power
• Ceiling or wall mounting hardware included
• Multi-Link Operation and 4K-QAM
• RF beamforming and band steering
• Wireless meshing support
• Eight configurable SSIDs
• 802.11k, 802.11v and 802.11r roaming
• Layer 2 and Layer 3 roaming
• WPA3, 802.1X and client-isolation support
• Captive portal and bandwidth limiting
• AP and router operating modes
• Local or remote management through the Lysora App
• Unified monitoring and configuration through Lysora Cloud
• AI-powered network optimization
• NDAA compliant

Reliable Coverage and Seamless Roaming

The L7 Lite provides an estimated coverage area of approximately 1,507 square feet under ideal, unobstructed conditions. Support for band steering, beamforming and advanced roaming protocols helps connected devices maintain stable performance as users move throughout the network.

Wireless meshing also provides additional flexibility when extending coverage across larger properties or locations where Ethernet cabling is difficult to install.

Ideal Applications

• Offices and conference rooms
• Retail stores
• Hotels and hospitality properties
• Schools and educational facilities
• Clinics and healthcare offices
• Restaurants
• Multi-tenant commercial buildings
• Small and medium-sized businesses
• Indoor surveillance and IoT networks

Technical Specifications

• Wi-Fi standard: IEEE 802.11a/b/g/n/ac/ax/be
• Frequency bands: 2.4 GHz and 5 GHz
• Maximum wireless rate: 688 Mbps at 2.4 GHz; 2,882 Mbps at 5 GHz
• Spatial streams: Four
• Ethernet interface: One 2.5GbE port
• Power input: 802.3at PoE+ or 12V DC
• DC power adapter: Not included
• Maximum power consumption: 14W
• Maximum client count: Up to 511
• Maximum SSIDs: Eight
• Coverage area: Approximately 1,507 square feet
• Mounting: Ceiling or wall
• IP rating: IP41
• Surge protection: ±2 kV
• Operating temperature: 32°F to 104°F
• Dimensions: 7.68-inch diameter × 1.61 inches
• Weight: 1.32 pounds
• Certifications: FCC, ISED, cTUVus, TEC, WPC, TELEC and VCCI
• Compliance: NDAA compliant

Specifications are based on Lysora’s official L7 Lite product information.
