LYSORA: LYS-L7 Wi-Fi 7 BE5040 Dual-Band Ceiling-Mount Access Point

Call: 800-888-8101

Fill Out Customer Application

PN / LYS-L7 * | Download data sheet

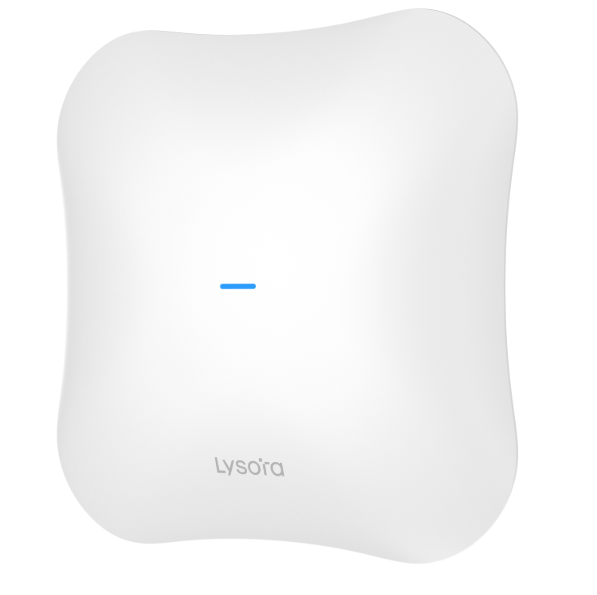

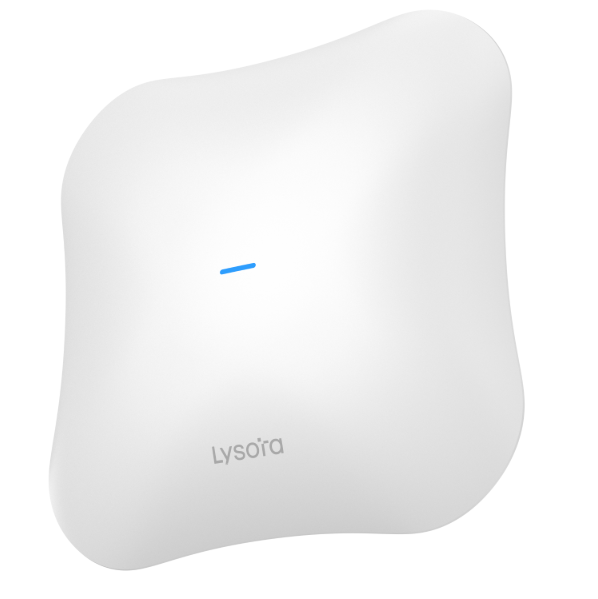

Lysora L7 Wi-Fi 7 BE5040 Dual-Band Ceiling-Mount Access Point

Deliver fast, reliable wireless connectivity with the Lysora L7, a high-performance Wi-Fi 7 ceiling-mount access point designed for professional networking environments. With five spatial streams, dual-band performance, Multi-Link Operation and a 2.5 Gigabit Ethernet port, the L7 provides the speed and capacity needed for offices, commercial facilities, retail spaces and other high-demand installations.

The L7 supports both access point and router modes and integrates with the Lysora Cloud platform for unified configuration, monitoring and remote management. Its included mounting hardware allows for clean ceiling or wall installation.

Key Features

• Wi-Fi 7 BE5040 dual-band performance
• Simultaneous 2.4 GHz and 5 GHz operation
• Five spatial streams
• Up to 688 Mbps on 2.4 GHz
• Up to 4,323 Mbps on 5 GHz
• 2×2 MU-MIMO on 2.4 GHz
• 3×3 MU-MIMO on 5 GHz
• One 2.5 Gigabit Ethernet port
• One Gigabit Ethernet port
• Multi-Link Operation and 4K-QAM support
• AP and router operating modes
• Wireless meshing and band steering
• 802.11k, 802.11v and 802.11r roaming
• Up to eight SSIDs
• 802.1Q VLAN support
• WPA3 security support
• Lysora Cloud, mobile app and web-interface management
• AI optimization and unified network monitoring
• Ceiling or wall mounting hardware included
• NDAA compliant

Technical Specifications

Wi-Fi Standards: IEEE 802.11a/b/g/n/ac/ax/be
Frequency Bands: 2.4 GHz and 5 GHz
Spatial Streams: 5
Wireless Data Rate: Up to 688 Mbps at 2.4 GHz and 4,323 Mbps at 5 GHz
Channel Width: Up to 40 MHz at 2.4 GHz and 160 MHz at 5 GHz

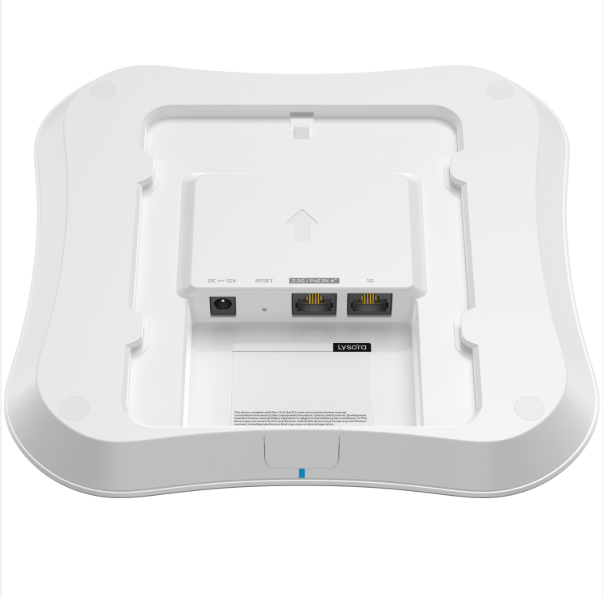

Network Interfaces: 1 × 10/100/1000/2500BASE-T and 1 × 10/100/1000BASE-T
Maximum Client Capacity: Up to 511 clients with both bands enabled
Recommended Client Capacity: Up to 110 clients, depending on configuration
Estimated Coverage: Up to 1,560 square feet in an ideal, unobstructed environment
Power: 802.3at PoE+ or 12V DC, 2.5A
Maximum Power Consumption: 30W
Mounting: Ceiling or wall; mounting hardware included
Dimensions: 8.19 × 8.19 × 1.57 inches
Weight: 1.65 pounds or less
Operating Temperature: 32°F to 104°F
Weather Resistance: IP41
Certifications: FCC, IC and cTUVus

Please Note: PoE injector and DC power adapter are sold separately. Actual wireless coverage, performance and client capacity may vary depending on environmental conditions, interference, connected devices and network configuration.
