LYSORA: LYS-L7-W Wi-Fi 7 BE3600 Dual-Band Wall-Plate Access Point

Call: 800-888-8101

Fill Out Customer Application

PN / LYS-L7-T * | Download data sheet

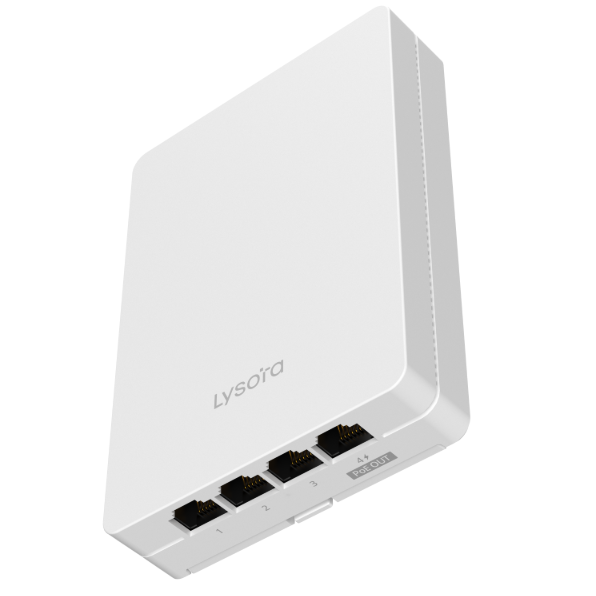

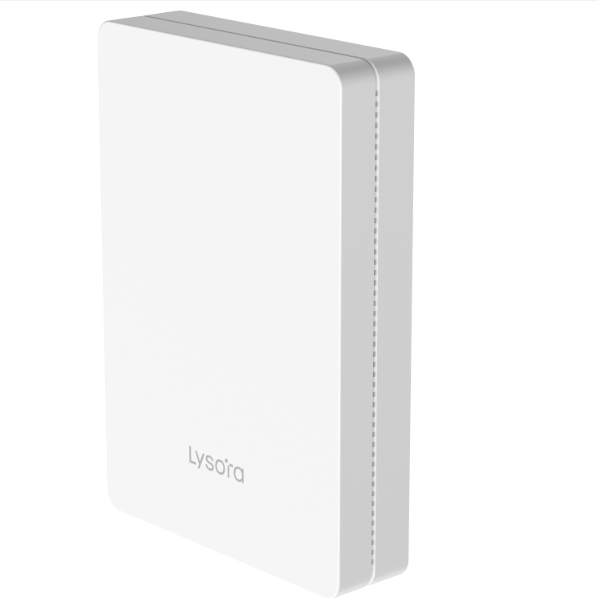

Lysora L7-W Wi-Fi 7 BE3600 Dual-Band Wall-Plate Access Point

High-Speed Wi-Fi 7 and Flexible Wired Connectivity in One Compact Design

The Lysora L7-W is a compact Wi-Fi 7 wall-plate access point designed to deliver fast, dependable wireless coverage and convenient wired connectivity in hotels, offices, apartments, dormitories and other multi-room environments.

With four spatial streams, combined wireless speeds of approximately 3.6 Gbps and a 2.5GbE uplink, the L7-W supports modern high-bandwidth applications and multiple connected devices. Four integrated Gigabit LAN ports—including one port with PoE output—make it easy to connect and power compatible network devices directly from the access point.

Key Features

• Dual-band Wi-Fi 7 connectivity
• Up to 688 Mbps on 2.4 GHz
• Up to 2,882 Mbps on 5 GHz
• Four spatial streams
• 2×2 MU-MIMO on both frequency bands
• One 2.5GbE WAN/uplink port
• Four Gigabit LAN ports
• One LAN port supporting 802.3af PoE output
• PoE+ input for streamlined installation
• Multi-Link Operation and 4K-QAM
• RF beamforming and band steering
• Wireless meshing support
• Eight configurable SSIDs
• 802.11k, 802.11v and 802.11r roaming
• Layer 2 and Layer 3 roaming
• WPA3, 802.1X and client-isolation support
• Captive portal and bandwidth limiting
• Local or remote management through the Lysora App
• Unified monitoring and configuration through Lysora Cloud
• AI-powered network optimization
• NDAA compliant

Wireless and Wired Connectivity in Every Room

The L7-W combines high-performance wireless coverage with multiple wired connections in a low-profile wall-mounted design. Its four Gigabit LAN ports can support computers, phones, televisions, cameras and other Ethernet devices, while the PoE-out port can power a compatible device without requiring an additional power supply.

With an estimated coverage area of approximately 592 square feet under ideal conditions, the L7-W is well suited for individual rooms, suites, offices and similarly sized indoor spaces.

Ideal Applications

• Hotels and hospitality properties
• Offices and conference rooms
• Apartments and multi-dwelling units
• College dormitories
• Assisted-living facilities
• Clinics and medical offices
• Retail spaces
• Individual rooms requiring wired and wireless connectivity

Technical Specifications

• Wi-Fi standard: IEEE 802.11a/b/g/n/ac/ax/be
• Frequency bands: 2.4 GHz and 5 GHz
• Maximum wireless rate: 688 Mbps at 2.4 GHz; 2,882 Mbps at 5 GHz
• Spatial streams: Four
• WAN interface: One 2.5GbE port
• LAN interfaces: Four Gigabit Ethernet ports
• PoE output: One 802.3af PoE-out LAN port
• Power input: PoE+
• Maximum power consumption: 15W, excluding PoE output
• Maximum client count: Up to 511
• Maximum SSIDs: Eight
• Coverage area: Approximately 592 square feet

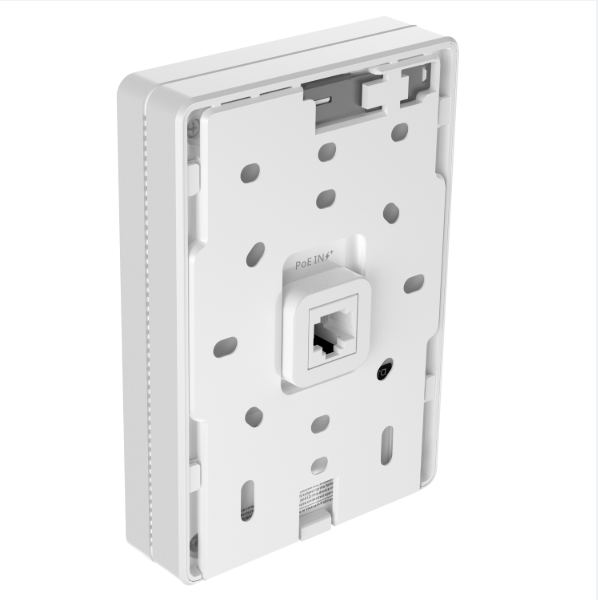

• Mounting: Wall mount included
• IP rating: IP41
• Surge protection: ±2 kV
• Operating temperature: 32°F to 104°F
• Dimensions: 3.39 × 0.94 × 4.88 inches
• Weight: 0.60 pounds
• Certifications: FCC, IC and cTUVus
• Compliance: NDAA compliant

Specifications are based on Lysora’s official L7-W product information.
