PN / LYS-L7-T * | Download data sheet

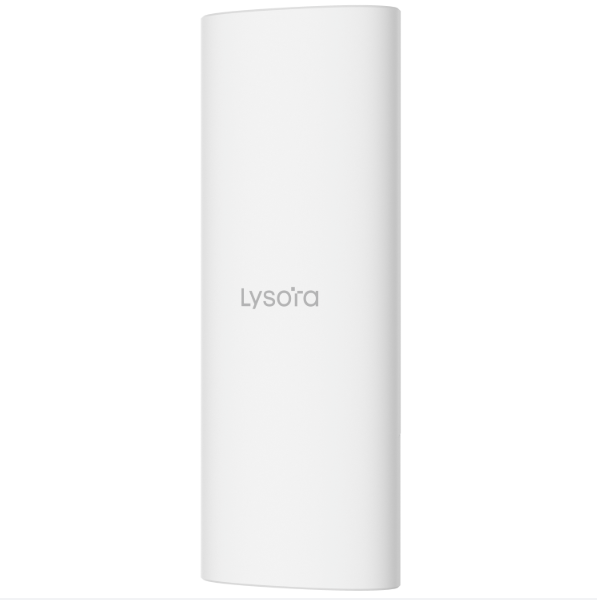

Lysora L7-T Wi-Fi 7 BE5040 Dual-Band Outdoor Access Point

High-Performance Wi-Fi 7 for Demanding Outdoor Environments

The Lysora L7-T is a high-capacity, dual-band Wi-Fi 7 outdoor access point designed to deliver fast, dependable wireless coverage across warehouses, industrial properties, campuses and other challenging environments.

With five spatial streams, combined wireless speeds of approximately 5 Gbps, a 2.5GbE uplink and PoE+ power, the L7-T provides the performance needed for bandwidth-intensive applications and large numbers of connected devices. Its IP65-rated housing, wide operating-temperature range and included wall and pole mounts make it ready for demanding outdoor installations. lysoratech.com

Key Features

• Dual-band Wi-Fi 7 connectivity
• Up to 688 Mbps on 2.4 GHz
• Up to 4,323 Mbps on 5 GHz
• Five spatial streams for improved capacity
• 2.4 GHz 2×2 MU-MIMO and 5 GHz 3×3 MU-MIMO

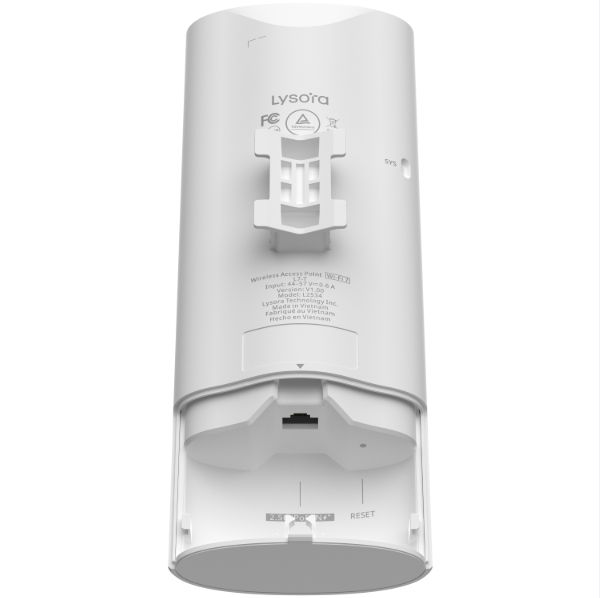

• One 10/100/1000/2500BASE-T Ethernet port
• PoE+ power for streamlined installation
• IP65-rated weather-resistant enclosure

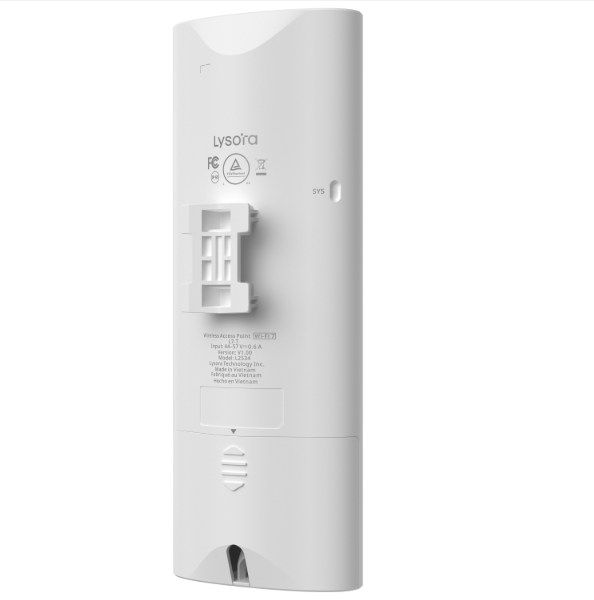

• Wall and pole mounting hardware included
• Multi-Link Operation and 4K-QAM
• RF beamforming and band steering
• Wireless meshing support
• 802.11k, 802.11v and 802.11r roaming
• Layer 2 and Layer 3 roaming
• WPA3, 802.1X and client-isolation support
• Local or remote management through the Lysora App
• Unified monitoring and configuration through Lysora Cloud
• AI-powered network optimization
• NDAA compliant

Built for Reliable Outdoor Coverage

The L7-T delivers recommended coverage distances of up to approximately 492 feet on 5 GHz and 164 feet on 2.4 GHz under ideal, unobstructed conditions. Its roaming, beamforming and band-steering capabilities help connected devices maintain stable performance as users move throughout the coverage area.

Ideal Applications

• Warehouses and distribution centers
• Industrial facilities and outdoor yards
• Business and educational campuses
• Parking areas
• Hospitality properties
• Retail and commercial environments
• Outdoor surveillance and IoT networks
• High-density wireless deployments

Technical Specifications

• Wi-Fi standard: IEEE 802.11a/b/g/n/ac/ax/be
• Frequency bands: 2.4 GHz and 5 GHz
• Maximum wireless rate: 688 Mbps at 2.4 GHz; 4,323 Mbps at 5 GHz
• Spatial streams: Five
• Ethernet interface: One 2.5GbE RJ45 port
• Power: PoE+
• Maximum power consumption: 21W
• Maximum client count: Up to 511
• Mounting: Wall or pole
• Weather resistance: IP65
• Surge protection: ±4 kV
• Operating temperature: -22°F to 149°F
• Dimensions: 3.54 × 1.81 × 9.41 inches
• Weight: 1.54 pounds
• Certifications: FCC, IC and cTUVus
• Compliance: NDAA compliant
