PN / LYS-L6LITE * | Download data sheet

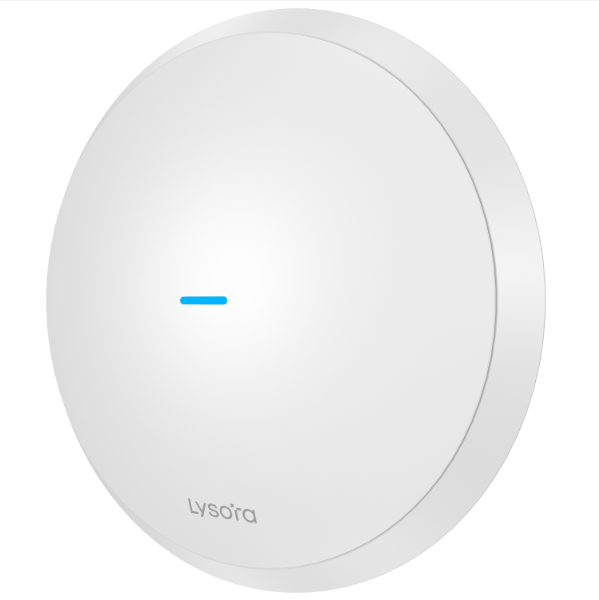

Lysora L6Lite Wi‑Fi 6 Dual-Band Ceiling Mount Access Point

Powerful Wi‑Fi 6 Performance in a Compact, Installation-Friendly Design

The Lysora L6Lite is a compact Wi‑Fi 6 dual-band access point designed to deliver fast, reliable wireless connectivity for offices, retail spaces, hospitality environments, surveillance networks, and other commercial applications.

With simultaneous 2.4 GHz and 5 GHz connectivity, the L6Lite delivers combined wireless speeds of up to 1,774 Mbps. Advanced features—including MU-MIMO, beamforming, band steering, wireless meshing, and seamless roaming—help maintain reliable connections throughout busy, multi-device environments.

Its compact housing can be mounted to a ceiling or wall using the included hardware. The L6Lite can be powered through PoE or a 12V DC power supply, providing installers with greater flexibility. Local and remote management is available through the Lysora App, web interface, and Lysora Cloud.

Key Features

• Wi‑Fi 6 dual-band wireless performance

• Up to 573 Mbps on the 2.4 GHz band

• Up to 1,201 Mbps on the 5 GHz band

• Combined wireless speeds up to 1,774 Mbps

• 2×2 MU-MIMO on both wireless bands

• Four spatial streams

• One Gigabit Ethernet RJ45 port

• Coverage area up to 1,345 sq. ft. under ideal conditions

• Supports up to eight SSIDs

• Wireless meshing and mesh management

• Band steering and RF beamforming

• Seamless 802.11k, 802.11v, and 802.11r roaming

• Layer 2 and Layer 3 roaming

• Client isolation and Wi‑Fi scheduling

• 802.1Q VLAN support

• WPA3-SAE, WPA2, 802.1X, and additional security options

• Captive portal and bandwidth limiting

• Local and remote management through the Lysora App, web interface, and Lysora Cloud

• AI-powered network optimization

• AP Mode and Router Mode

• Ceiling and wall mounting hardware included

• NDAA compliant

Specifications

• Wireless Standard: IEEE 802.11a/b/g/n/ac/ax

• Network Interface: One 10/100/1000BASE-T RJ45 port

• Maximum Client Capacity: Up to 256 connected clients

• Recommended Client Capacity: Up to 100 compatible wireless clients

• Power: PoE or 12V DC, 1.5A

• Maximum Power Consumption: 12.95W

• Dimensions: 6.89 in. diameter × 1.54 in.

• Weight: 0.88 lbs. or less

• Operating Temperature: 32°F to 104°F

• Environmental Rating: IP41

• Mounting: Ceiling or wall

Please Note: The DC power adapter is not included. Actual wireless coverage, capacity, and performance may vary depending on the installation environment, connected devices, physical obstructions, and wireless interference.
