PN / LYS-CPE5 * | Download data sheet

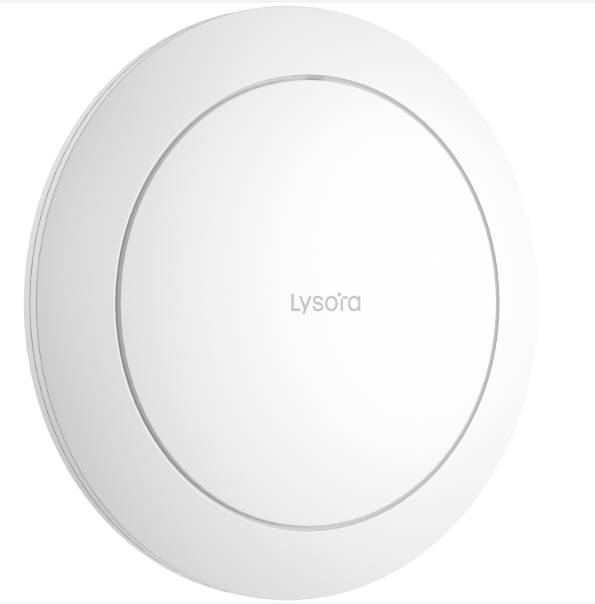

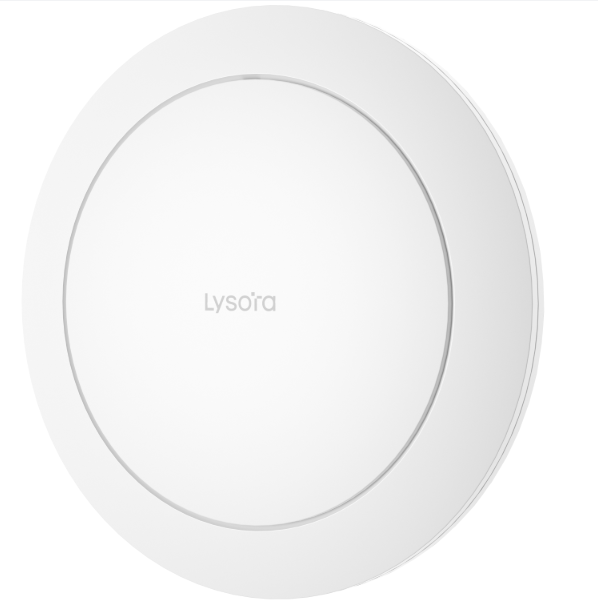

Lysora L6 Wi‑Fi 6 AX3000 Dual-Band Ceiling Mount Access Point

Fast, Reliable Wi‑Fi 6 Coverage for Professional Networks

The Lysora L6 is a high-performance Wi‑Fi 6 AX3000 dual-band access point designed to provide fast, reliable wireless coverage for offices, retail environments, hospitality applications, surveillance networks, and other commercial installations.

Featuring simultaneous 2.4 GHz and 5 GHz connectivity, the L6 delivers combined wireless speeds of up to 2,974 Mbps. Advanced features—including MU-MIMO, beamforming, band steering, wireless meshing, and seamless roaming—help maintain strong connections across busy, high-device environments.

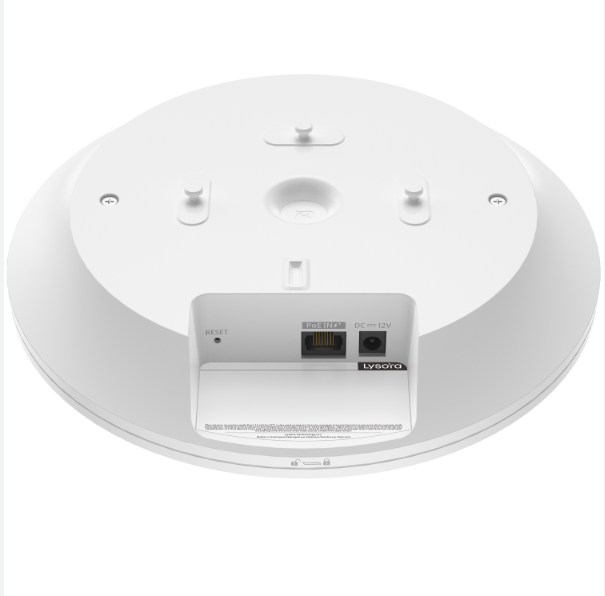

The L6 supports ceiling or wall mounting and can be powered using 802.3at PoE or a 12V DC power supply, providing installation flexibility without requiring a nearby electrical outlet when PoE is used. Management is available locally through the web interface or remotely using the Lysora App and Lysora Cloud.

Key Features

• Wi‑Fi 6 AX3000 dual-band performance

• Up to 573 Mbps on 2.4 GHz

• Up to 2,401 Mbps on 5 GHz

• 2×2 MU-MIMO on both wireless bands

• Four spatial streams

• One Gigabit Ethernet RJ45 port

• Coverage area up to 1,560 sq. ft. under ideal conditions

• Supports up to eight SSIDs per radio

• Wireless meshing and mesh management

• Band steering and RF beamforming

• Seamless 802.11k, 802.11v, and 802.11r roaming

• Layer 2 and Layer 3 roaming

• Client isolation and Wi‑Fi scheduling

• 802.1Q VLAN support

• WPA3-SAE, WPA2, 802.1X, and additional security options

• Captive portal and bandwidth limiting

• Local and remote management through the Lysora App, web interface, and Lysora Cloud

• AP Mode and Router Mode

• Ceiling and wall mounting hardware included

• NDAA compliant

Specifications

• Wireless Standard: IEEE 802.11a/b/g/n/ac/ax

• Wireless Class: AX3000

• Network Interface: One 1GbE RJ45 port

• Power: PoE/PoE+ or 12V DC, 2A

• Maximum Power Consumption: 18W

• Dimensions: 8.66 in. diameter × 2.07 in.

• Weight: 1.10 lbs. or less

• Operating Temperature: 32°F to 104°F

• Environmental Rating: IP41

• Mounting: Ceiling or wall

Please Note: The PoE injector and DC power adapter are sold separately. Actual wireless coverage and performance may vary depending on the installation environment, connected devices, obstructions, and interference.
