PN / LYS-BASE5I *

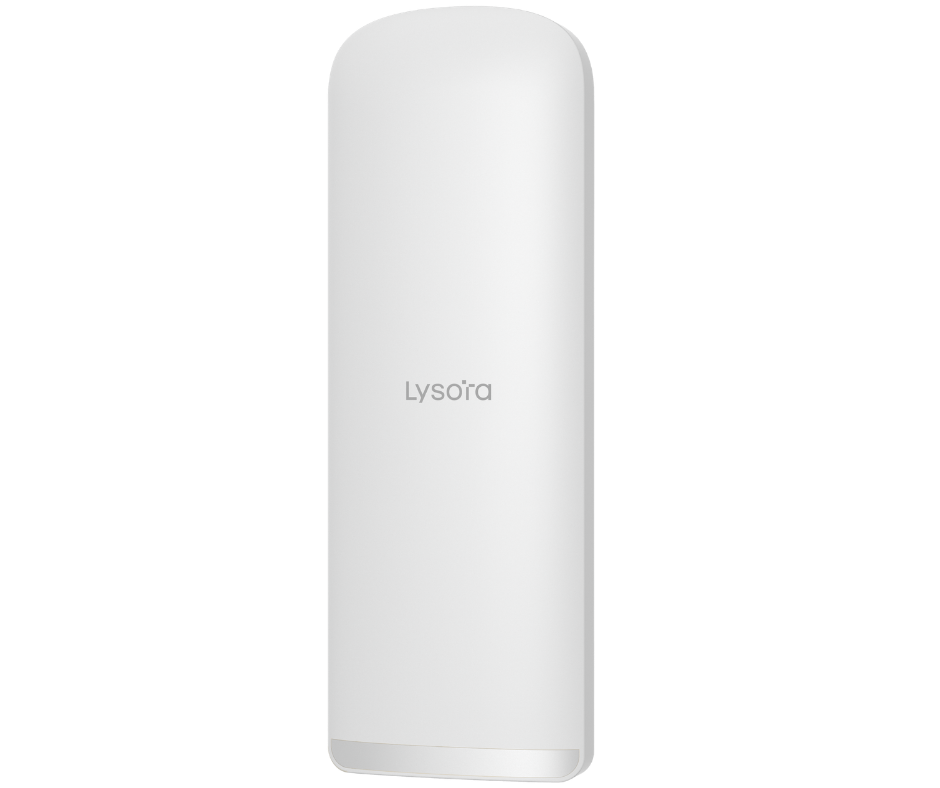

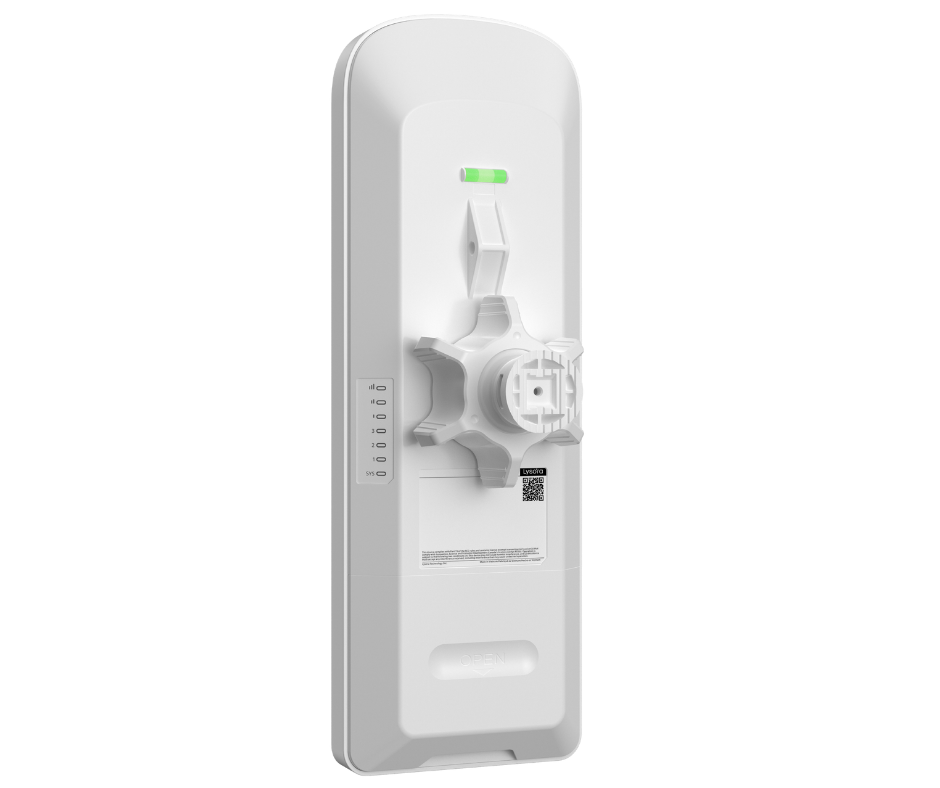

Lysora Base5i – 5GHz Wireless Bridge Base Station with 15dBi Antenna
The Lysora Base5i is a high-performance 5GHz wireless bridge base station designed to deliver reliable, long-distance network connectivity. Featuring a built-in 15dBi directional antenna with 120° coverage, the Base5i supports wireless transmission distances of up to 5 kilometers (3.1 miles) and wireless data rates of up to 867Mbps.
Ideal for surveillance networks, commercial installations, and outdoor wireless applications, the Base5i provides a flexible solution for extending network connectivity without running additional cable.
With three Gigabit Ethernet ports, multiple power options, and cloud management capabilities, the Base5i offers installers a powerful and convenient solution for professional wireless networking.
Key Features
- 5GHz Wireless Connectivity: Supports wireless data rates up to 867Mbps.
- Long-Distance Transmission: Supports connections up to 5km (3.1 miles).
- 15dBi Built-In Antenna: High-gain directional antenna with 120° horizontal coverage.
- 3 Gigabit Ethernet Ports: Three 10/100/1000Mbps network connections.
- Flexible Installation: Supports wall and pole mounting.
- Cloud Management: Supports remote network management and monitoring.
- Multiple Power Options: Supports 24V passive PoE, standard PoE/PoE+, and DC power.
- Outdoor Durability: IP55-rated enclosure designed for outdoor environments.
- Wide Operating Temperature: Operates from -22°F to 149°F.
- NDAA Compliant: Suitable for installations requiring NDAA-compliant equipment.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Lysora |
| Model | Base5i |
| Product Type | Wireless Bridge Base Station |
| Wireless Frequency | 5GHz |
| Maximum Wireless Rate | 867Mbps |
| Antenna Gain | 15dBi (5GHz) |
| Horizontal Coverage | 120° |
| Maximum Transmission Distance | 5km / 3.1 miles |
| Ethernet Ports | 3 × Gigabit RJ45 |
| Wireless Standard | IEEE 802.11a/n/ac (5GHz) |
| Power Consumption | ≤12W |
| Power Options | 24V Passive PoE, PoE/PoE+, DC |
| Weather Resistance | IP55 |
| Mounting | Wall / Pole |
| Management | Web, Cloud, SNMP, SSH |
| NDAA Compliant | Yes |
Applications
- Long-distance wireless network extensions
- CCTV surveillance systems
- Commercial and industrial networking
- Point-to-point (PTP) wireless connections
- Point-to-multipoint (PTMP) wireless networks
- Outdoor network infrastructure
The Lysora Base5i combines long-range wireless performance, flexible installation, and centralized management to simplify professional network deployments.
Specifications verified against the manufacturer's official product information.
Manufacturer Product Page: Lysora Base5i
