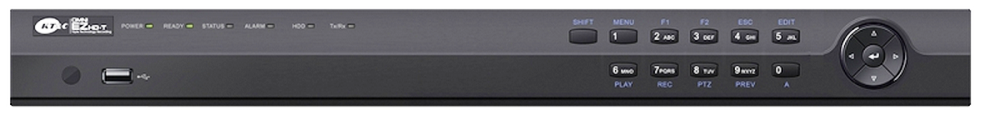

KT&C (TVI) EZHD-TVL16 HD 1080P Over Coax 16 Channel DVR

Call 1-800-888-8101 for pricing
Vendor KT&C USA
In stock


16 Channel HD-TVI DVR


Intelligent Video Inputs: connect 1080p/720p EZHD HD-TVI or 960H/SD analog to ANY input at any time

  • - Reuse existing analog cameras or choose any mix of HD/SD on new systems
    - Upgrade any analog camera to megapixel at any time
    - Superlative HD resolution of 1080p Full HD or 720p HD for amazing image quality
    - Useful digital zoom on live view and playback
    - Field select 1080p or 720p, 30/25 Hz or 60/50 Hz
  • - Upgrade any analog camera to megapixel at any time
    - Superlative HD resolution of 1080p Full HD or 720p HD for amazing image quality
    - Useful digital zoom on live view and playback
    - Field select 1080p or 720p, 30/25 Hz or 60/50 Hz
  • Operation over ‘almost any’ wire
    - More than 1000 feet on standard RG59 coax
    - More than 1500 feet on RG6
    - More than 500 feet on UTP (one pair from a Cat5e cable, using optional KA-HDBAL1 balun pair).
  • Display Live/Record 2.1 Megapixel 1920x1080 (1080p), 1 Megapixel 1280x960 (720p), 960x480 (WD1/960H), 704x480 (SD)
    - 1080p recording at up to 15FPS per camera
    - Real time recording on any/all channels at 720p, WD1 or SD resolution
    - Playback any/all cameras at up to record rate
    - Independent configuration for each channel: resolution main/sub-stream, FPS, bit rate, image quality, etc.

  • Up-the-cable control [UTC] to access compatible camera OSD menus from the DVR PTZ controls (local or remotely)

  • Triple Technology Recording: Connect additional OMNI-IP Plug-and-Play IP cameras (4+1, 8+2, 16+2) up to 1080p resolution without sacrificing BNC input

  •  H.264 Compression for efficient HDD utilization
    - One (4, 8 channel) or 2 (16 channel) internal hard drives for up to 4 or 8Tb of internal storage
    - Up to 8 network disks (8 NAS disks, or 7 NAS disks +1 IP SAN disk)
    - Simultaneous high bandwidth recording plus sub-stream recording for reduced bandwidth remote viewing
    - Watermarking for validation of recorded video
    - Record scheduling per-camera, with HDD quotas, holidays, parameter change on alarm/event

  • Unique Channel 0 remote stream displays user defined multi-view in the bandwidth of a single channel

  • Pentaplex Operation (Simultaneous live, recording, playback, archiving and remote viewing)

  • Easy router setup for remote access: uPnP/NAT automatically sets up port forwarding (router must support/allow uPnP)

  • HDMI & VGA Main monitor outputs for up to 1080p HD display detail

  • User friendly GUI with graphical icons, visual indicators and multiple language support
    - Easy to use on-screen menus include digital zoom and instant playback of recent video
    - Operate using front panel controls, wheel mouse or included IR remote

  • Quickly locate and review event video
    - Search by date/time, or preview images by pointing along a color coded timeline of record type
    - Tag video of interest for easy retrieval or export
    - Play based on results of extensive event/alarm log search
    - Use “Smart Search” to define an area of interest; the DVR quickly reviews recorded video to list instances of motion in that area for review by the operator

  • Digital Zoom with Virtual PTZ in Live & Playback

  • Privacy masking (4 zones) to block observation of specific areas within the field of view

  • Audio Input and Output for recording and/or two way audio

  • Ethernet interface for remote network viewing and control, and to connect IP cameras

  • Multiple Control Inputs: local mouse/hand held IR remote controller (both included); web browser and CMS controls

  • On-screen PTZ control via mouse or IR remote

  • USB 2.0 ports on front and rear panels for video archive and mouse usage

  • Free DDNS Service – static IP address is not required for reliable remote access

  • IE, Chrome, Firefox and Safari browser Web clients

  • Free Multi-Site Windows and MAC OMNI CMS can display up to 64 live/16 playback views

  • Remote configuration support from built-in web interface and/or free OMNI CMS program

  • Free iOS and Android apps:
    - Scroll though single/quad display live views
    - Playback specific cameras by date/time plus easy slider control
    - Audio monitoring support
    - PTZ and relay control
    - Up to 16 camera views from HD tablets (HD app)


Intelligent Video Inputs Analog EZHD/SD Inputs 4 8 16
HD Video Resolutions EZHD / HD-TVI 720p30(25), 720p60(50), 1080p30(25)
Analog CVBS Video Input Up to 960x480,720x480(NTSC); 960x576,720x576(PAL)
Adaptive Ports Input Format Auto Detection, EZHD/SD can be mixed in any combination, at any time
Interface BNC Connector; 1V p-p, 75Ω
Privacy masking 4 areas programmable in OSD menu
Additional OMNI-IP PNP Channels (up to 2 MP) 1 2
Total Cameras Supported 5 10 18
Video Output Main HDMI & VGA Full HD 1920×1080/60Hz; SXGA: 1280×1024/60Hz; 720P: 1280×720/60Hz; XGA: 1024×768/60Hz 1, 2x2, 1+5, 1+7, 3x3, 4x4 split; User Defined Sequence / Alarm Pop-up
Recording Video Compression Dual Stream: H.264 for Main Stream and Sub-stream
Video Bitrate 32Kb/s~6Mb/s each channel
Encoding Main Stream 1080p (virtual real time); 720p; WD1; 4CIF; VGA; CIF
Sub Stream WD1, 4CIF (virtual real time); CIF; QVGA; QCIF
Frame Rate Main Stream 1/16 fps ~ Real time frame rate (real time at 720p and lower resolutions)
Sub Stream 1/16 fps ~ Real time frame rate
Quality 6 levels: Lowest/Lower/Low/Medium/Higher/Highest
Mode Continuous; Motion; Alarm; Motion or alarm, Motion + Alarm
Motion Detection Configurable per camera for area(s), sensitivity and arming schedule programmable by day of week and hour of day
Schedule Period Per day in 1 hour blocks; or 8 time periods per day, each with different record mode; plus holidays
Pre- and Post- Event Recording Pre-record 0~30 seconds; post record 5s~10 minutes
Playback Synchronous Playback 4 channels 8 channels 16 channels
Playback Resolution 1080p, 720p, WD1, 4CIF, VGA, CIF, QVGA, QCIF
Search Type Time/Date; motion or log event; Manual Tags; Smart Search for motion events from recorded video
Capacity Up to record rate
Playback Controls Play; Pause; Forward/Reverse; speed control for single~1.8~16X; Slide bar with overview of record type and snapshot display from slider position
Digital Zoom During Playback Supported on Local Displays and CMS
Event & Alarm Event Source MD (Motion Detection), Video Loss, Video Tampering/Exceptions
Event Action Schedule Per day in 1 hour blocks; or 8 time periods per day, each with different record mode; plus holidays
Event Action Buzzer, E-mail, Alarm Full Screen Pop-up, Notify CMS Client
MD Area User selectable grid pattern 22x15 areas with adjustable per camera sensitivity
System Alarm Alarm Source HDD Error, HDD Full, LAN Fail/Address Conflict, Illegal login, Video Signal Exception/, Record/Capture exception
Alarm Action Buzzer, E-mail, Notify CMS Client (network permitting)
Audio Two-way audio Audio input pass through to remote web or CMS client; remote audio from web or CMS client pass through to audio output
Input / Output 1ch Input / 1ch Output; RCA, 2V p-p, 1KΩ
Compression Up to 64Kbps, G.711u
Network Interface 10/100 Base-T Ethernet RJ-45 1Gb/s 1000 Base-T Ethernet RJ-45
Addressing Static IP, DHCP, xDSL support
NTP/DST Supported; choice of time zone, NTP server, DST start/end/offset
Protocols Supported TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS, KT&C Plug-and-Play (for connected IP Cameras), OMNI Utility Device Discovery
NAT uPnP router NAT/port mapping forwards ports automatically (*Router must support/permit uPnP function)
Users Up to 128 simultaneous connected users
DDNS Simple DDNS free service tracks WAN IP address and HTTP port
Security User IDs “Admin”, plus multiple configurable login IDs
User Levels All rights for “admin”; Per camera per user rights assignment for Operator and User levels
User Privilege Control Local and remote access to Live views, audio, recording, playback, menus, PTZ, alarms, copy, logs, upgrade, reboot
Storage & Clip copy HDD Storage 1 SATA HDD up to 4Tb 2 SATA HDD up to 4Tb each
NAS/SAN up to 8 network disks (8 NAS disks, or 7 NAS disks +1 IP SAN disk)
Copy Type Multi-Channel or Single Channel File
Copy Device USB 2.0 Drive (2 ports)
S.M.A.R.T. Temperature, duration, error rates, bad sector detection, and more
Serial & I/O USB 2.0 Ports One front, one rear for mouse and data I/O
RS-485 One; selectable speed and bit pattern; multiple protocols (Pelco P, Pelco D, others)
Up the Cable Control Multiple protocols, can be sent out of any BNC port to compatible cameras
User Controls Local Controls Front Panel camera, function and navigation buttons; IR Remote; Mouse
Software Web Viewer Live view, playback and configuration via IE, Chrome, Firefox, Safari (with free plug-in/extension installed)
User Rights Control Per user-per camera for multiple functions
Mobile Viewer iOS and Android supported ; live 1 & 4 camera views; single camera playback; snapshots from live or play; copy clips/record to smartphone; audio support; PTZ control. HD version of app, optimized for tablets, displays up to 16 live view cameras
CMS Free PC and MAC Clients support multiple device viewing, playback (with digital zoom) and configuration; user rights per camera; E-map support; live view up to 64 cameras in 4:3 and 48 cameras in 16:9; up to 16 cameras in playback
Event Logging Multiple types: alarm, exception, operation, information; dozens of sub-types within each major type
Firmware Upgrade From USB or remotely
Backup/Restore Configuration From USB or remotely
General Dimension (W x H x D) 12.4” x 9.5” x 1.8” | 315 × 242 × 45 mm 15” x 11.4” x 1.9” | 380 × 290 × 48mm
Chassis Type Standalone 1U chassis 19” rack-mountable 1U chassis (Optional rack ears KA-ORM1)
Weight without HDDs 3.3 lb. / 1.5Kg 4.4 lb. / 2Kg
Operating Temp 14°F~131°F (-10°C~55°C)
Operating Humidity 10% ~ 90%
Voltage 12VDC from included power supply, 4 pin DIN; power supply input voltage 100~220 VAC 50~60Hz
Power Up to 15W Up to 20W Up to 30W
Certifications FCC, CE, RoHS
