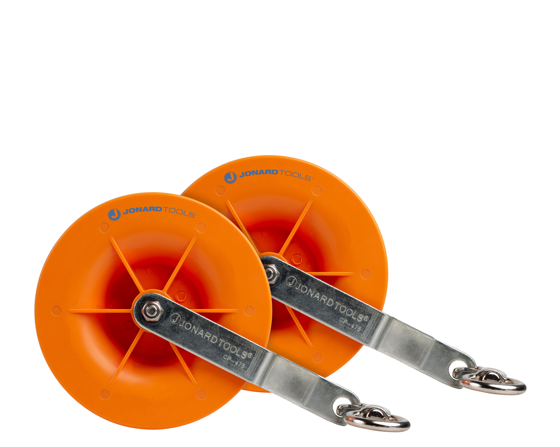

Jonard Tools CP-475 Low-Voltage Cable Pulley Set

Smoother, Faster Cable Pulls with Fewer Snags and Kinks

The Jonard Tools CP-475 is a two-piece cable pulley set designed to simplify the installation of network, coaxial, electrical, and other low-voltage cables. Each pulley features a swivel snap hook, deep cable channel, and anti-friction roller bearings that keep cables aligned with the direction of the pull for smoother, more controlled installation.

With support for up to 20 CAT5 or CAT6 cables and a maximum weight capacity of 120 pounds, the CP-475 is an ideal cable-management tool for structured-cabling, security, telecommunications, and commercial installation projects.

Key Features

  • Holds up to 20 CAT5 or CAT6 network cables

  • Supports electrical, network, coaxial, and other low-voltage cables

  • Maximum weight capacity of 120 pounds

  • Swivel snap hook allows fast and convenient installation

  • Automatically aligns with the direction of the cable pull

  • Helps prevent cable snags, kinks, and unnecessary strain

  • Anti-friction roller bearings provide smooth cable movement

  • Deep 1.43-inch channel helps keep cables securely positioned

  • High-strength ABS construction provides durability without excessive weight

  • Zinc-coated steel components offer enhanced strength and corrosion resistance

  • Easy to remove after the cable installation is complete

  • Includes two cable pulleys

  • Backed by Jonard Tools’ lifetime warranty

Built for Efficient Cable Installation

The CP-475 helps installers guide multiple cables through ceilings, rafters, cable pathways, and other challenging installation areas. Its rotating snap hook keeps the pulley properly aligned as the pulling direction changes, while the deep channel helps prevent cables from slipping out during operation.

By reducing friction and maintaining proper cable alignment, these pulleys can help protect cable jackets and make long or complex pulls easier to manage.

Ideal Applications

  • Structured-cabling installations

  • CAT5 and CAT6 network cabling

  • Coaxial cable installation

  • Security and surveillance systems

  • Access-control wiring

  • Audio and video cabling

  • Telecommunications projects

  • Commercial and residential low-voltage installations

Technical Specifications

  • Model: CP-475

  • Quantity: Two pulleys

  • Cable capacity: Up to 20 CAT5 or CAT6 cables

  • Maximum weight capacity: 120 lb

  • Channel width: 1.43 inches

  • Pulley diameter: 4.75 inches

  • Materials: High-strength ABS plastic and zinc-coated steel

  • Individual pulley weight: 0.63 lb

  • Total set weight: 1.27 lb

  • UPC: 810053350805

  • Warranty: Lifetime

The Jonard Tools CP-475 Cable Pulley Set provides installers with a durable and convenient solution for completing smoother cable pulls while reducing friction, cable damage, and installation time.
