VANCO 280568 HDMI® 4 x 4 Coaxial Matrix w IR Remote Control

Call 1-800-888-8101 for pricing
Vendor VANCO

PN / VAN-280568 *

VANCO 280568 4x4 HDMI® Coaxial Matrix

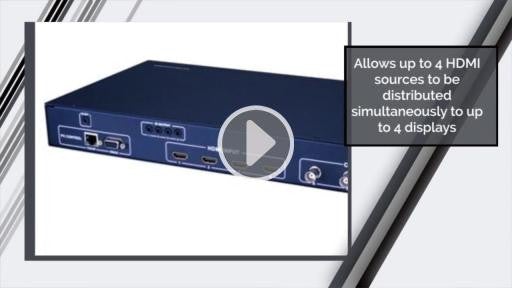

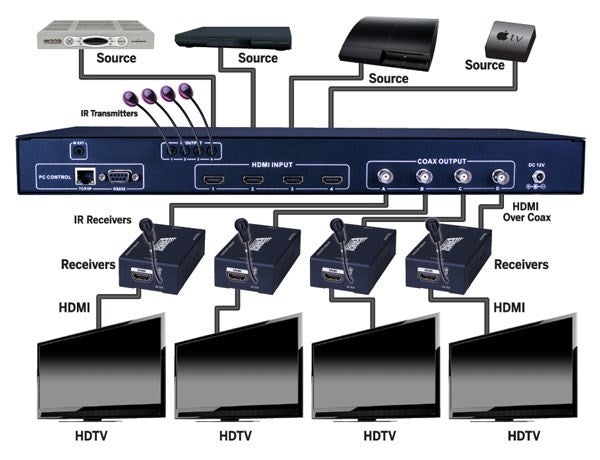

  • Allows up to 4 HDMI sources to be distributed simultaneously to up to 4 displays
  • Simple plug and play solution allows each output the ability to extend the HDMI signal up to 328ft/100m over a single BNC terminated coaxial cable (RG6)
  • Features HDSDI technology, full 1080P HD video and audio
  • Additional EDID management can be achieved using the RS232 connection and the interface to encourage device communication and compatibility for a seamless installation
  • Supports wideband IR, 30–60KHz (IR accessories included)

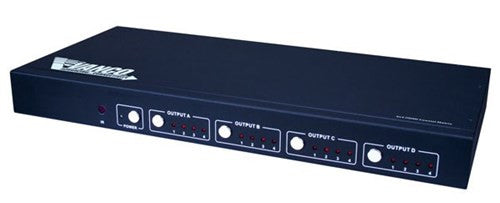

  • Control via RS-232, TCP/IP, IR, and manual on-panel control
  • Supports smart EDID management
  • Quick Install Kit includes Matrix Unit and 4 Receivers
  • 12V DC, UL Listed Power supply for 4x4 matrix
  • 5V DC, UL Listed Power Supplies for Receivers (4 total)

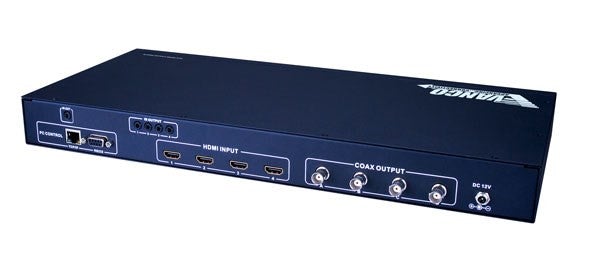

  • 4x4 Matrix Dimensions: 17.31" (440mm) W x 1.75" (44.45mm) H x 7.875 (200mm) D

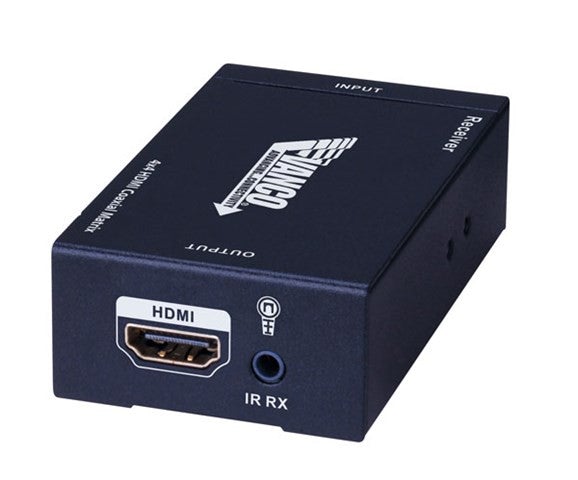

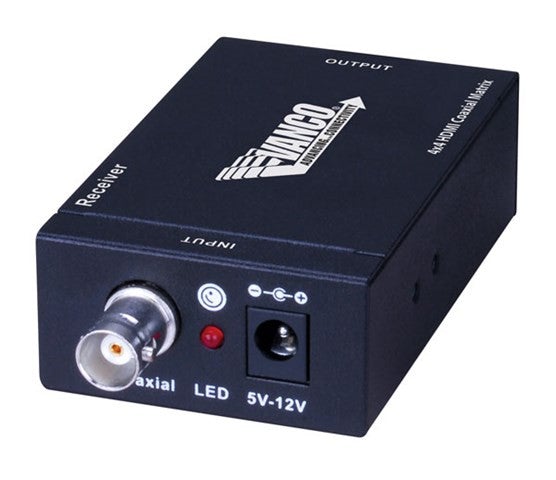

  • Receiver Dimensions: 2" (50mm) W x 1" (25mm) H x 3.125" (80mm) D
Part No Type Pkg. UPC
280568 4x4 Pkgd 741835104609

 VAN-280702 Product Manual
