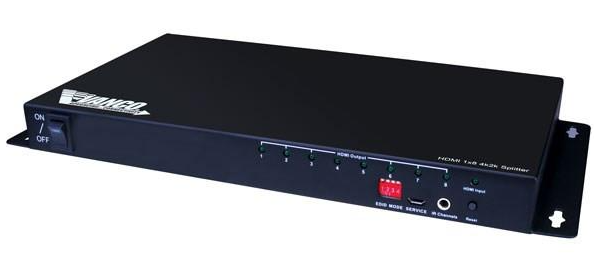

PN / VAN-280708 *
Features:
- Allows 1 HDMI source to be displayed on up to 8 HDMI displays
- Features EDID management which supports default HDMI EDID options or has the ability to copy the EDID of any display connected to the source for any “handshake” issues
- Supports 4K2K (2160p @30) Ultra High Definition resolution
- Full high definition resolution support: 2160p, 1080p, 1080i, 720p and other standard video formats
- Fully cascadable so multiple units may be combined to create an expanded distribution system
- Supports HDMI 36bit Deep Color and 3D
- Supports standard audio, DSD audio and HD (HBR) audio, 7.1 and 5.1 surround audio, Dolby digital ,Dolby True HD, DTS, and DTS Master audio
- Features dual band Super IR system for controlling source from any display connected (HDMI IR adapters (Part # 280703) and IR transmitters and receivers are sold separately (Part #s 280720, 280721))
- HDCP Compliant
- Compact design for easy installation
- Power Supply: DC 9V
- Dimensions: 12.5” (317mm) W x 1” (28mm) H x 6” (156mm) D
| Part No | Type | Pkg. | UPC |
| 280708 | 1x8 | Pkgd | 741835091725 |
VAN-280708 Product Manual
