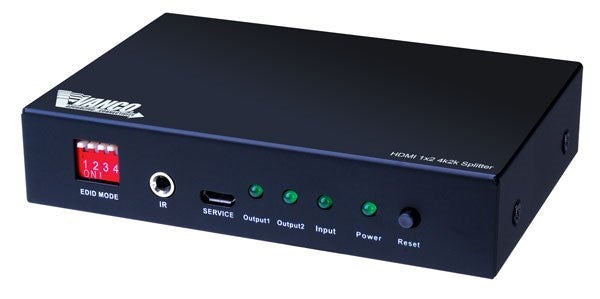

VANCO 280702 HDMI® 1 x 2 4K2K Splitter with IR Control

Call 1-800-888-8101 for pricing
Vendor Vanco

PN / VAN-280702 *

VANCO 280702 HDMI 1x2 4K2K Splitter with IR Control

Features:

  • Allows 1 HDMI source to be displayed on up to 2 HDMI displays
  • Features EDID management which supports default HDMI EDID options or has the ability to copy the EDID of any display connected to the source for any “handshake” issues
  • Supports 4K2K (2160p @30) Ultra High Definition resolution
  • Full high definition resolution support: 2160p, 1080p, 1080i, 720p and other standard video formats
  • Fully cascadable so multiple units may be combined to create an expanded distribution system
  • Supports HDMI 36bit Deep Color and 3D
  • Supports standard audio, DSD audio and HD (HBR) audio, 7.1 and 5.1 surround audio, Dolby digital ,Dolby True HD, DTS, and DTS Master audio
  • Features dual band Super IR system for controlling source from any display connected (HDMI IR adapters (Part # 280703) and IR transmitters and receivers are sold separately (Part #s 280720, 280721))
  • HDCP Compliant
  • Compact design for easy installation
  • Power Supply: DC 5V
  • Dimensions: 4.4” (111mm) W x .9” (23.5mm) H x 3” (75mm) D
Part No Type Pkg. UPC
280702 1x2 Pkgd 741835091664


 VAN-280702 Product Manual
