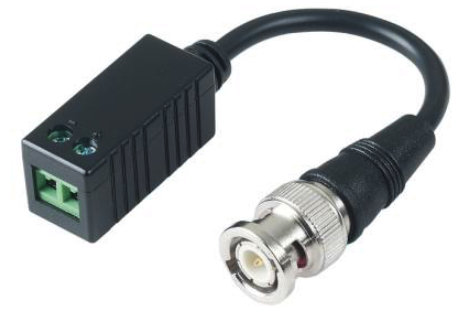

SEESTATION TTP111HDL HD Video Transceiver with 10cm pigtail for HD-CVI, TVI, & AHD (Each)

Call 1-800-888-8101 for pricing
Vendor SeeStation



  • Priced & Sold Each
  • To send HD-CVI, HD-TVI, AHD camera 720p/1080p up to 300 meters .over UTP Cat5 Cable.
  • BNC male to screw terminal for easy connection.
  • Compact and mini size, could mount multiple units behind multiplexer, Quad, DVR..etc
  • Passive, No power required.
  • Eliminate Coaxial Cable.
  • To work with Active transmitter TTA111HDT, Active receiver TTA111HDR for extra long distance transmission.

ITEM NO.                                       SEE-TTP111HDL

Video Input / Output Terminals BNC MALE (75Ω、1V p-p)
Video Input / Output Terminals TERMINAL BLOCK
Bandwidth 50Hz ~ 47MHz (-3dB)
Transmission Distance 720p 300M, 1080p 200M (Max)
Temperature Operation: 0 to 55℃, Storage: -20 TO 85℃, Humidity: up to 95%
Dimension  mm 14.5 × 15.5 × 145, include 100mm mini coax cable
Weight  g 25
