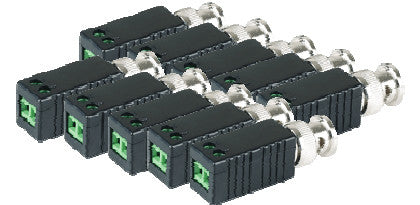

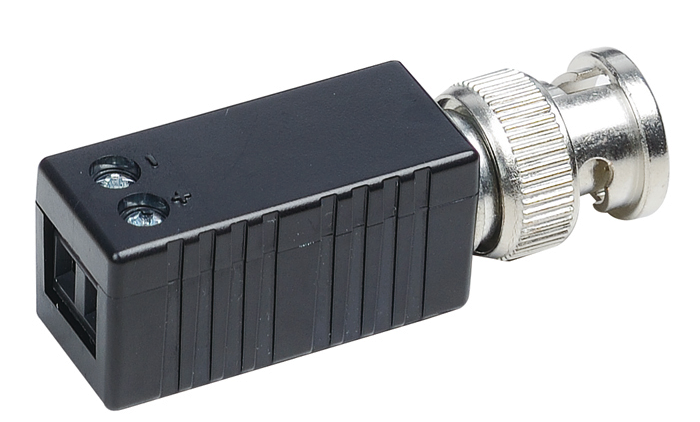

PN / SEE-TTP111HD *
- Priced & Sold in 10 Lots
- To send HD-CVI, HD-TVI, AHD camera 720p / 1080p up to 300 meters over UTP Cat5 Cable.
- BNC male to screw terminal for easy connection.
- Compact and mini size, could mount multiple units behind multiplexer, Quad, DVR..etc
- Passive, No power required.
- Eliminate Coaxial Cable.
- To work with Active transmitter TTA111HDT, Active receiver TTA111HDR for extra long distance transmission.
ITEM NO. SEE-TTP111HD
Quantity 10 Each
Video Input (BNC Connector) 1
Video Input 1V p-p, 75 Ohms
CABLE Twisted Pair CAT 5
Bandwidth 50Hz ~ 47MHz ( -3dB )
Transmission Distance Color: 300 meters
RJ-45 Output Terminal
Power None Required
Temperature Operation: 0 to 55℃, Storage: -20
TO 85℃, Humidity: up to 95%
Dimensions W x H x D mm 14.5 × 49.5 × 15.5
Weight g 18gm Each Piece
